Selector Lever Bezel: Removal

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

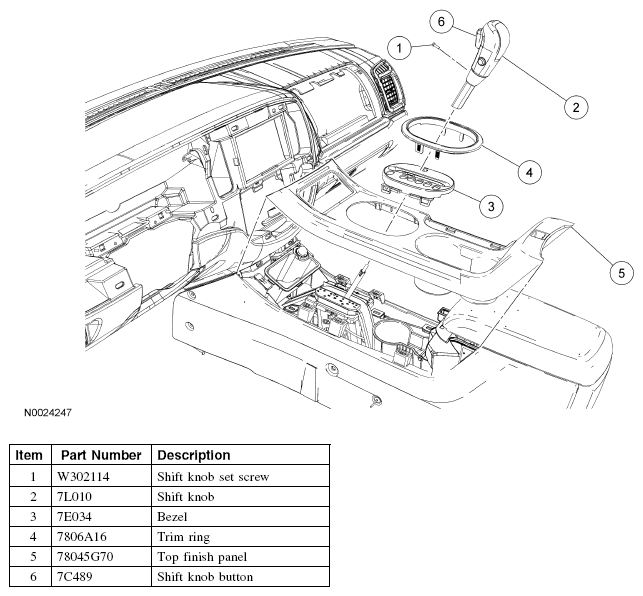

Fig 1: Identifying Selector Lever Bezel Components

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Place the floor shift selector lever in the (D) position.

Fig 2: Locating Floor Shift Selector Lever In (D) Position
Gently pry up to remove the upper shift lever trim ring.

Fig 3: Identifying Upper Shift Lever Trim Ring
Remove the top finish panel.

Fig 4: Locating Top Finish Panel
Remove the set screw.

Fig 5: Locating Shift Knob Set Screw

CAUTION: Make sure that the plastic straw inside of the lever does not come out.

Fig 6: Pulling Knob And Wiring Straight Up On Knob

Remove the knob and wiring by pulling straight up on the knob.
Carefully pry up the 4 bezel clips and remove the bezel.

Fig 7: Identifying Bezel Clip
Remove the gearshift bezel.

Fig 8: Locating Gearshift Bezel
