Transmission Range (TR) Sensor: Removal

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

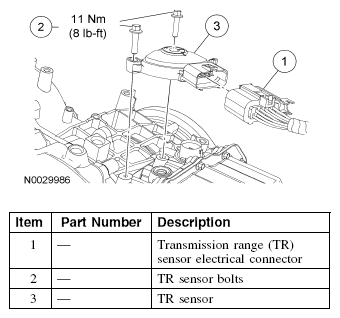

Fig 1: Transmission Range (TR) Sensor Replacement Components With Torque Specifications
G04619922Courtesy of FORD MOTOR CO.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the battery and tray. For additional information, refer to REMOVAL AND INSTALLATION .
  3. Remove the transmission range (TR) sensor.
    1. Disconnect the TR sensor electrical connector.
    2. Remove the TR sensor retaining bolts.
    3. Remove the TR sensor.
      Fig 2: Identifying Transmission Range (TR) Sensor Components
      G04619923Courtesy of FORD MOTOR CO.
