Clutch and Clutch Field Coil: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Holding Fixture, Compressor Clutch 412-133
Courtesy of FORD MOTOR CO.	Holding Fixture, Compressor Clutch 412-098 (94P-19703-AH)
Courtesy of FORD MOTOR CO.	Remover, Compressor Pulley 412-001 (T71P-19703-B)
Courtesy of FORD MOTOR CO.	Coil Replacer 412-065 (T89P-19623-EH)
Courtesy of FORD MOTOR CO.	Field Coil Replacer 412-078 (T91L-19623-CH)
Courtesy of FORD MOTOR CO.	Field Coil Remover 412-067 (T89P-19623-FH)

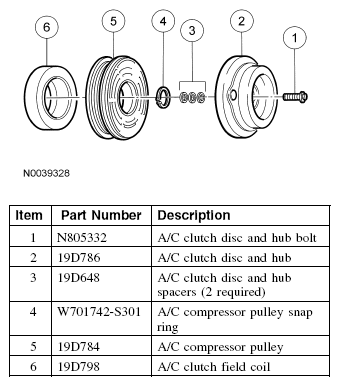

Fig 1: Identifying Clutch & Clutch Field Coil Components

Courtesy of FORD MOTOR CO.
