Upper Intake Manifold: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

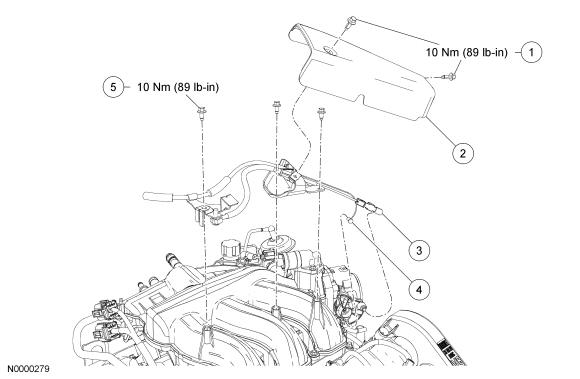

Fig 1: Upper Intake Manifold With Torque Specifications (1 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W702251	Accelerator cable snow shield bolts (2 required)
2	9E776	Accelerator cable snow shield
3	9A825	Speed control cable to throttle body
4	9A758	Accelerator cable to throttle body
5	-	Accelerator/speed control cable bracket bolt (3 required)

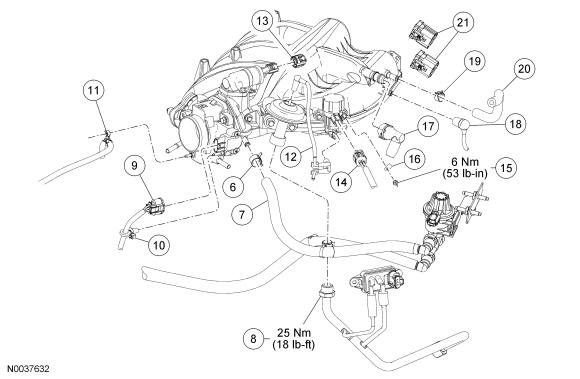

Fig 2: Upper Intake Manifold With Torque Specifications (2 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
6	W52593	Clamp
7	9D289	Fuel vapor tube
8	-	Exhaust gas recirculation (EGR) tube fitting (part of 9D477)
9	14A464	Throttle position (TP) sensor electrical connector (part of 9H589)
10	W700497	Wiring retainer (part of 9H589)
11	-	Transaxle vent tube retainer (part of 7034)
12	-	Vacuum tube (part of 9E498)
13	14A464	Idle air control (IAC) valve electrical connector (part of 9H589)
14	14A464	EGR vacuum regulator electrical connector (part of 9H589)
15	-	EGR vacuum regulator stud bolt nut
16	-	Wiring retainer (part of 9H589)
17	-	Positive crankcase ventilation (PCV) tube
18	-	Vacuum tube fitting (part of 9E498)
19	392984	Brake booster vacuum hose clamp
20	2C053	Brake booster vacuum hose
21	14A464	Engine control wiring harness electrical connectors (part of 9H589)

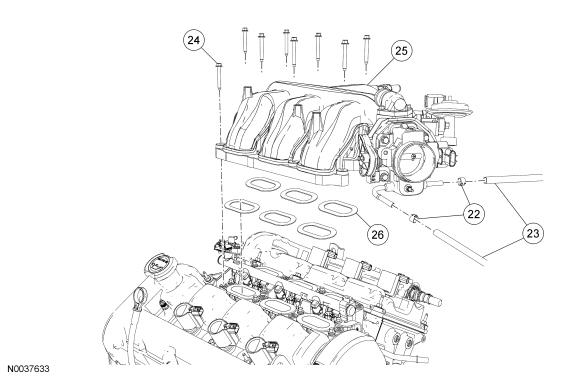

Fig 3: Upper Intake Manifold (3 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
22	-	Throttle body coolant hose clamps (2 required)
23	-	Throttle body coolant hoses (2 required)
24	9Y450	Upper intake manifold bolt (8 required)
25	9424	Upper intake manifold
26	-	Upper intake manifold gasket (6 required)
