Engine Front Cover: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-
Silicone Gasket and Sealant TA-30	WSE-M4G323-A6
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

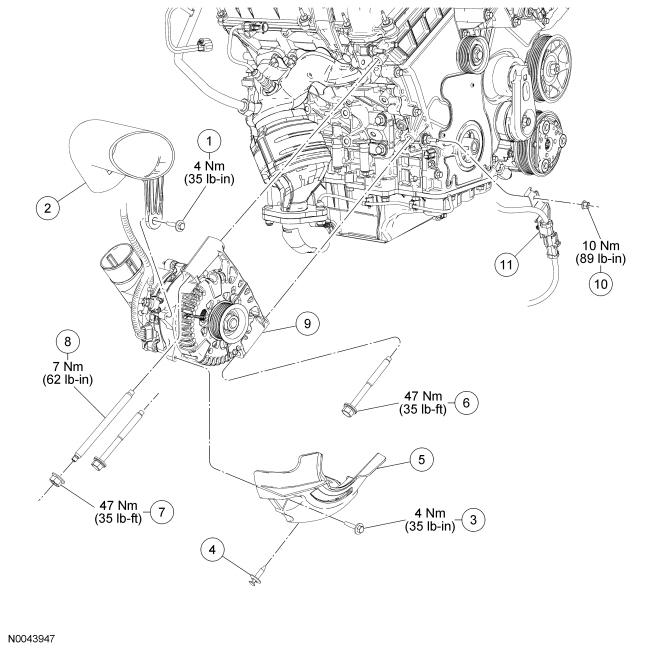

Fig 1: Engine Front Cover With Torque Specifications (1 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W505415	Generator upper air duct bolt
2	10C392	Generator upper air duct
3	W505415	Generator shield bolt
4	W705848	Pin-type retainer
5	10A389	Generator shield
6	W709986	Generator bolt (2 required)
7	W520414	Generator stud nut
8	W710416	Generator stud
9	10300	Generator
10	W701542	Heated oxygen sensor (HO2S) electrical connector bracket nut
11	15A024	HO2S electrical connector bracket

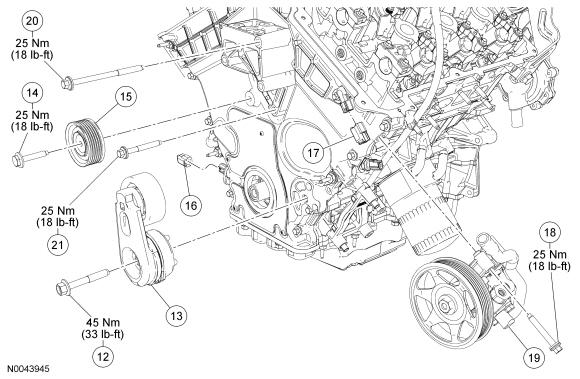

Fig 2: Engine Front Cover With Torque Specifications (2 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
12	W701625	Accessory drive belt tensioner bolt
13	6B209	Accessory drive belt tensioner
14	-	Accessory drive belt idler pulley bolt (part of 6C348)
15	6C348	Accessory drive belt idler pulley
16	-	Crankshaft position (CKP) sensor electrical connector (part of 9H589)
17	-	Camshaft position (CMP) sensor electrical connector (part of 9H589)
18	W701656	Power steering pump bolt (3 required)
19	3A696	Power steering pump
20	W708221	Engine front cover bolt (3 required)
21	W708222	Engine front cover bolt (3 required)

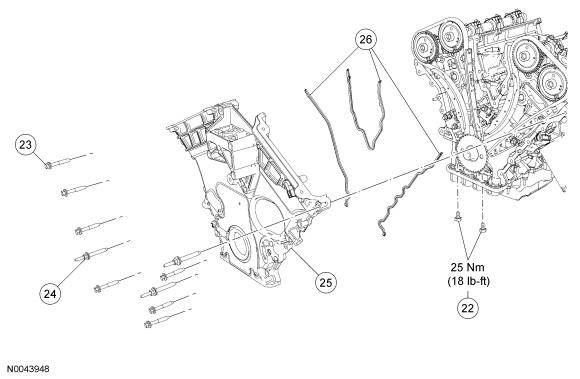

Fig 3: Engine Front Cover With Torque Specifications (3 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
22	W709678	Oil pan-to-front cover bolts (2 required)
23	W701525	Engine front cover bolt (7 required)
24	W710030	Engine front cover stud bolt (3 required)
25	6019	Engine front cover
26	-	Engine front cover gasket (3 required)
