Fire Suppressor: Notes

WARNING: This page is about a different car, the 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Always wear safety glasses when repairing a fire suppression system vehicle and when handling a fire suppressor. This will reduce the risk of injury in the event of an accidental deployment.

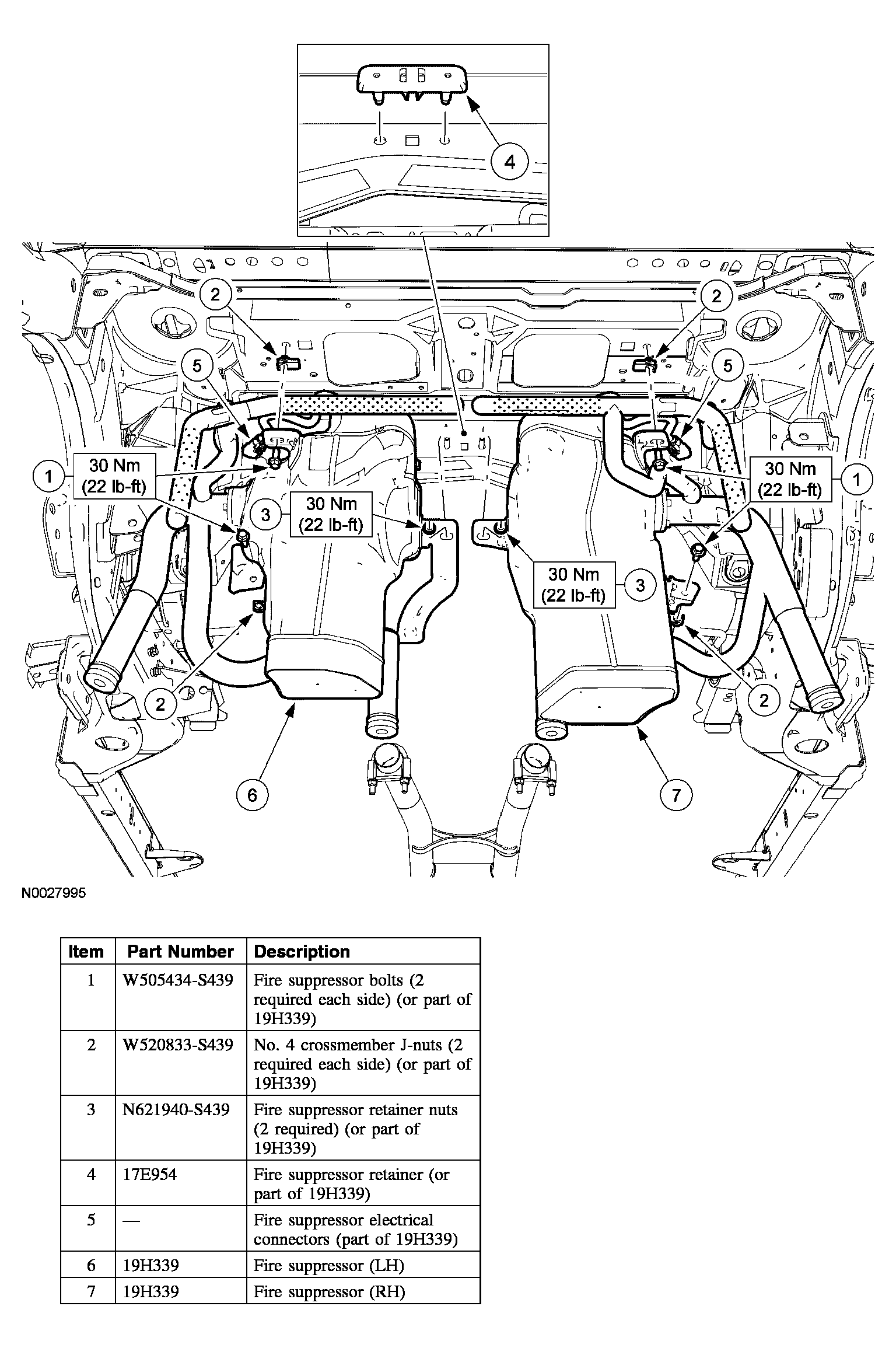

Fig 1: Removing/Installing Fire Suppressor
G04585730Courtesy of FORD MOTOR CO.
