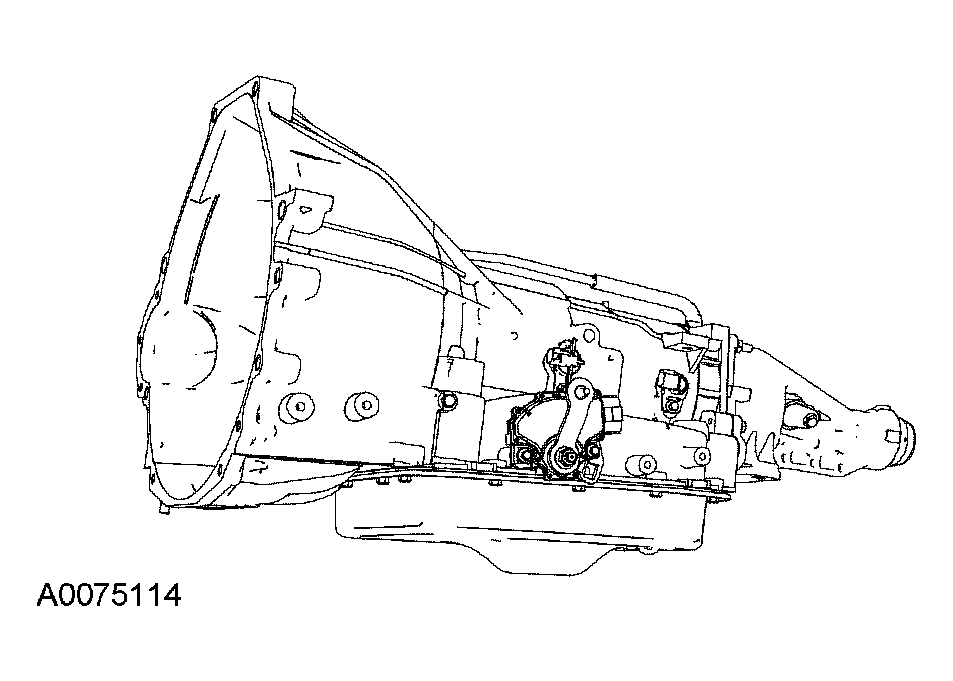

Transmission Description
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
This transmission has the following features:
- Wide ratio gears
- Four speeds
- Rear wheel drive
- Automatic
- Electronic shift
- Torque converter clutch control
- Line pressure controls
The transmission uses a Ravigneaux-style double-pinion gearset with 2 bands, 1 one-way roller clutch, 1 mechanical diode and 4 friction clutches to produce 4 forward gears and reverse.
