Removal and Installation
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
- Release the fuel system pressure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

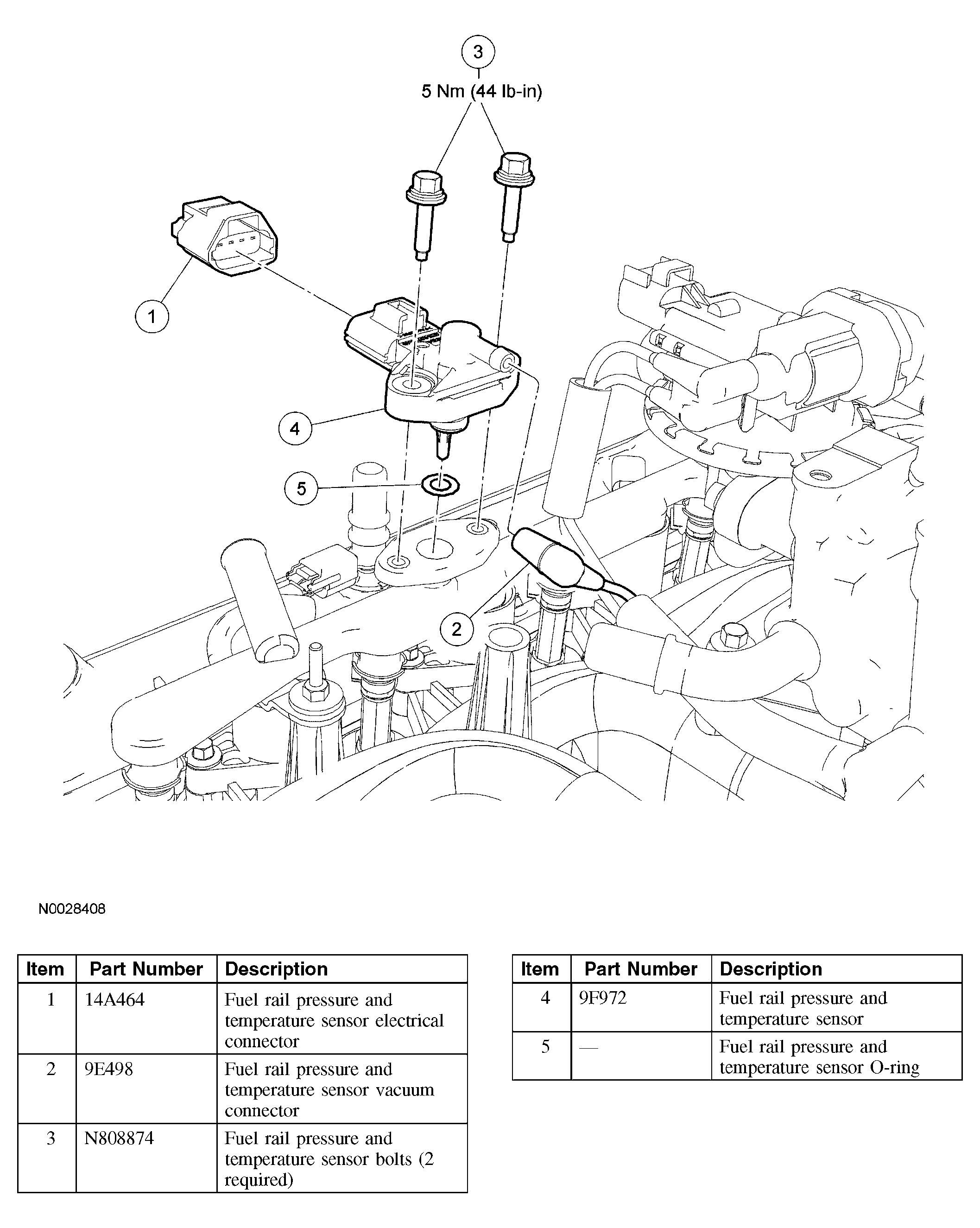

- Disconnect the fuel rail pressure and temperature sensor electrical connector.
- Disconnect the fuel rail pressure and temperature sensor vacuum connector.
- Remove the 2 bolts and the fuel rail pressure and temperature sensor.
- To install, tighten to 5 Nm (44 lb-in).
- Remove and discard the O-ring seal.
- Install a new O-ring seal and lubricate it with clean engine oil.
- To install, reverse the removal procedure.
WARNING:
Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and can be ignited. Failure to follow these instructions may result in personal injury.
WARNING:
Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and can be ignited. Failure to follow these instructions may result in personal injury.
