Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

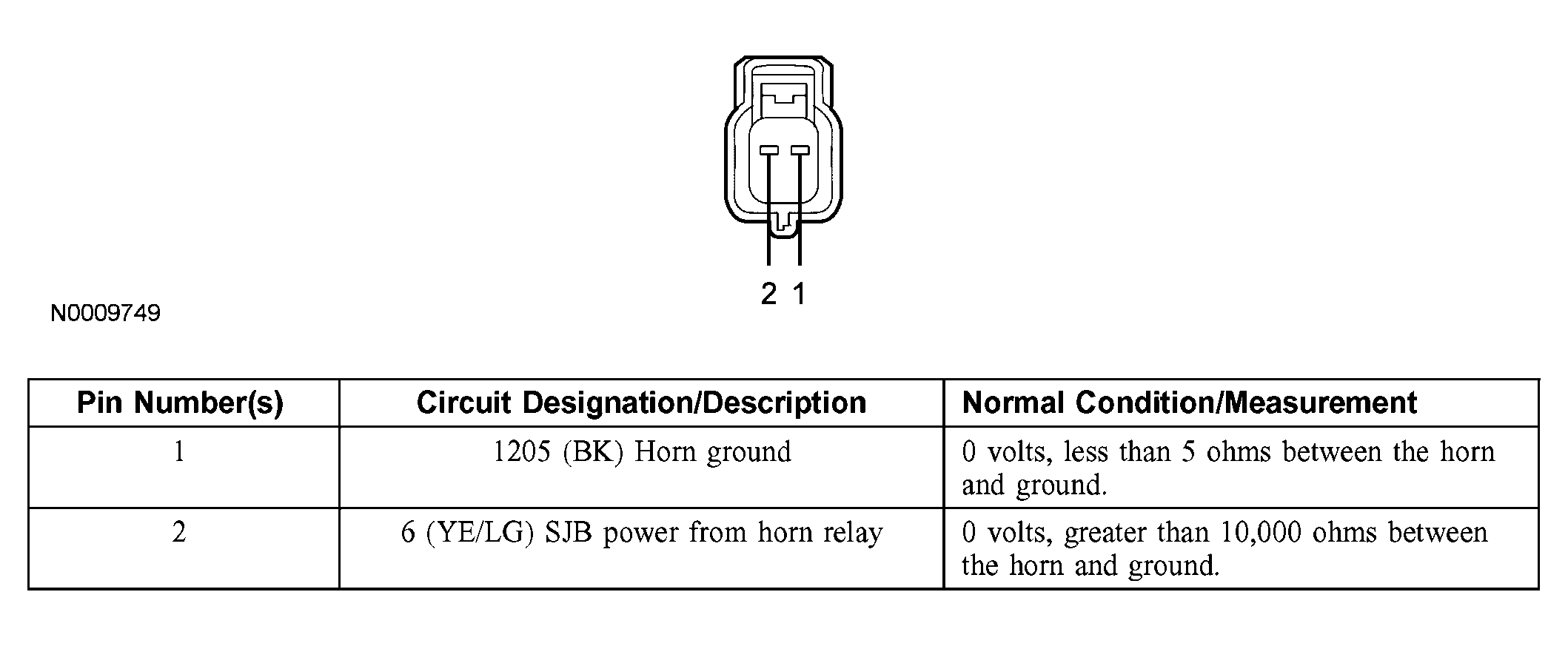

Fig 1: Connector Circuit Reference - Horn C131

Courtesy of FORD MOTOR CO.

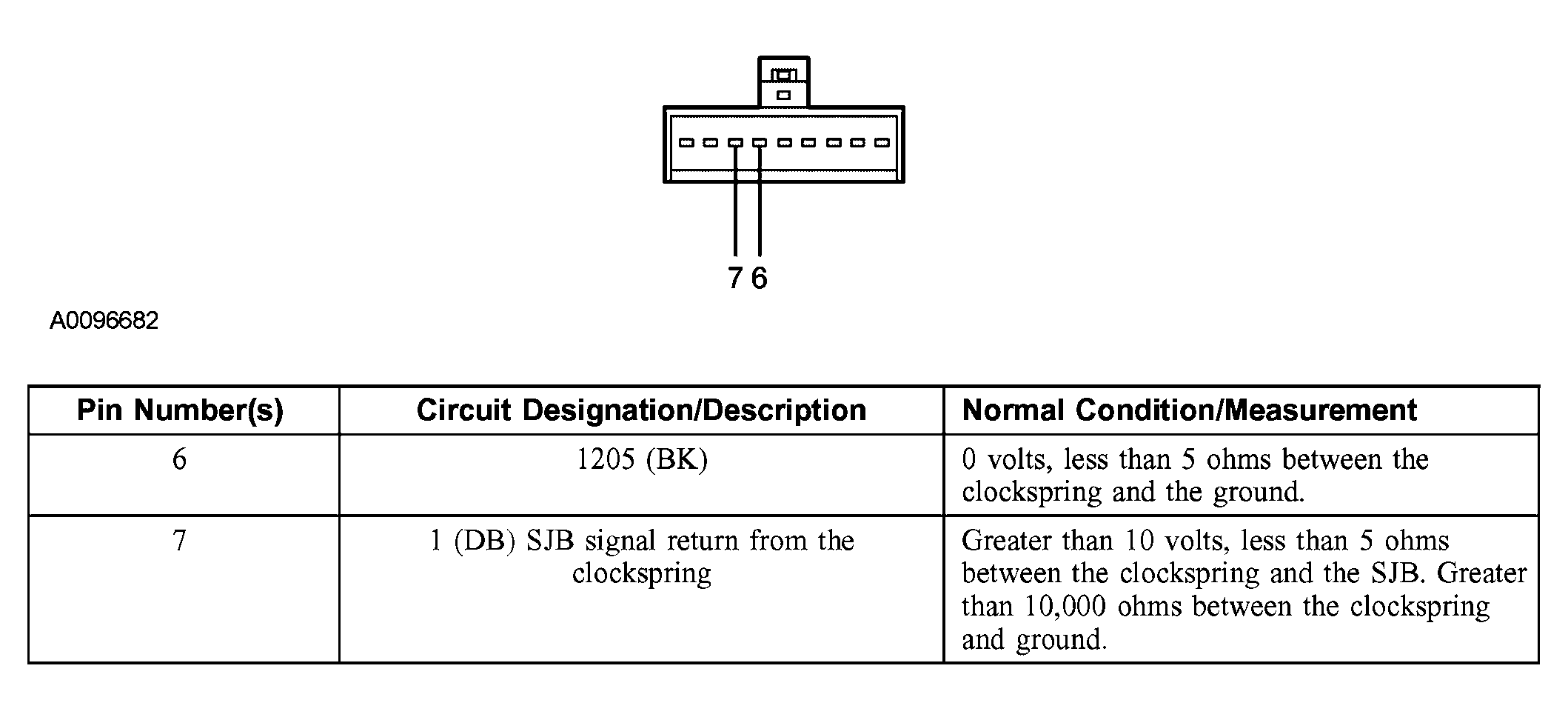

Fig 2: Connector Circuit Reference - Lockspring C2274a

Courtesy of FORD MOTOR CO.

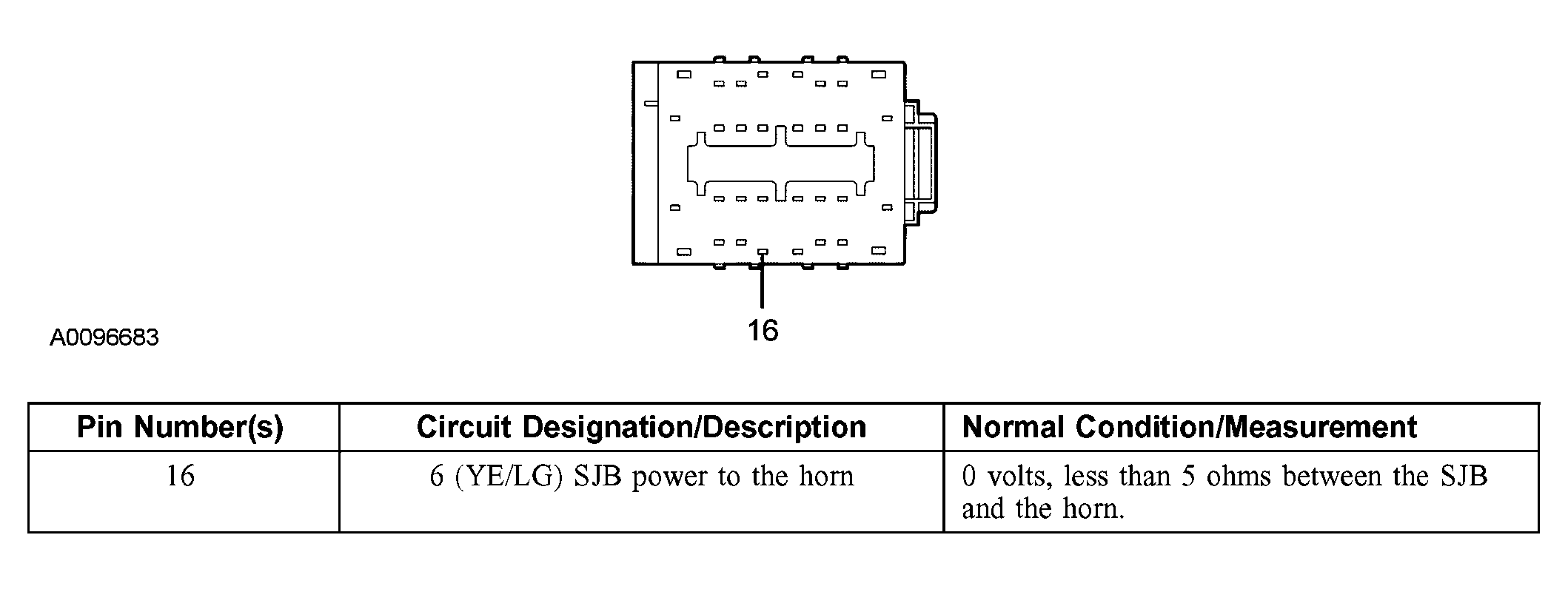

Fig 3: Connector Circuit Reference - Smart Junction Box (SJB) C2280a

Courtesy of FORD MOTOR CO.

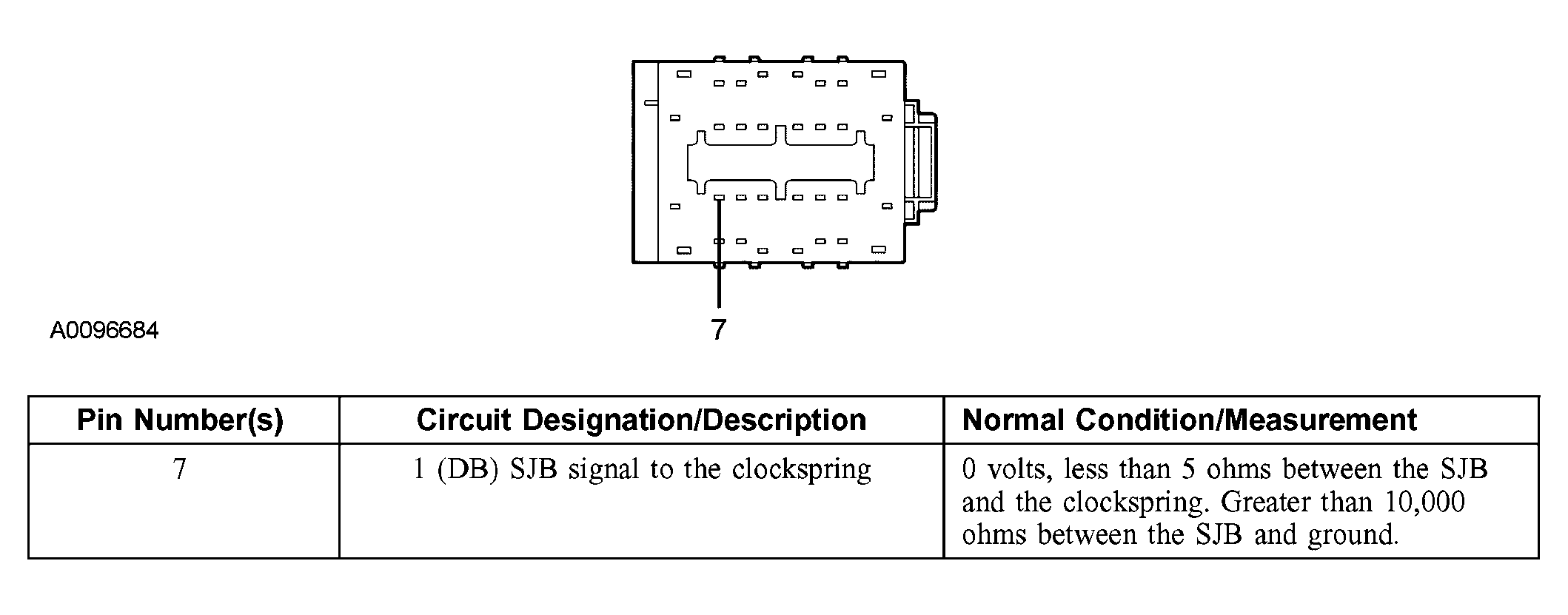

Fig 4: Connector Circuit Reference - Smart Junction Box (SJB) C228B

Courtesy of FORD MOTOR CO.

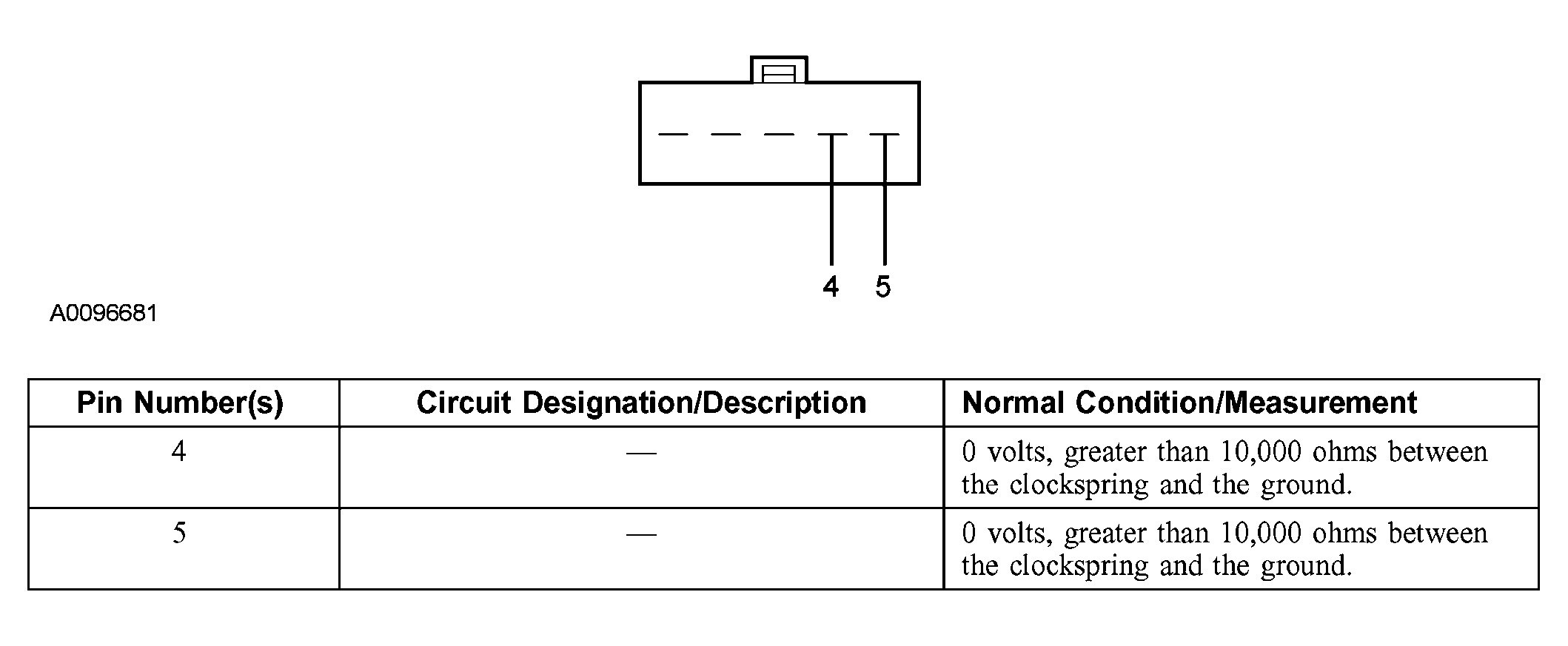

Fig 5: Connector Circuit Reference - Upper Clockspring Connector

Courtesy of FORD MOTOR CO.
