Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor shifter trim ring.
  2. Remove the floor console center finish panel.
  3. Remove the 2 instrument panel center finish panel screws.

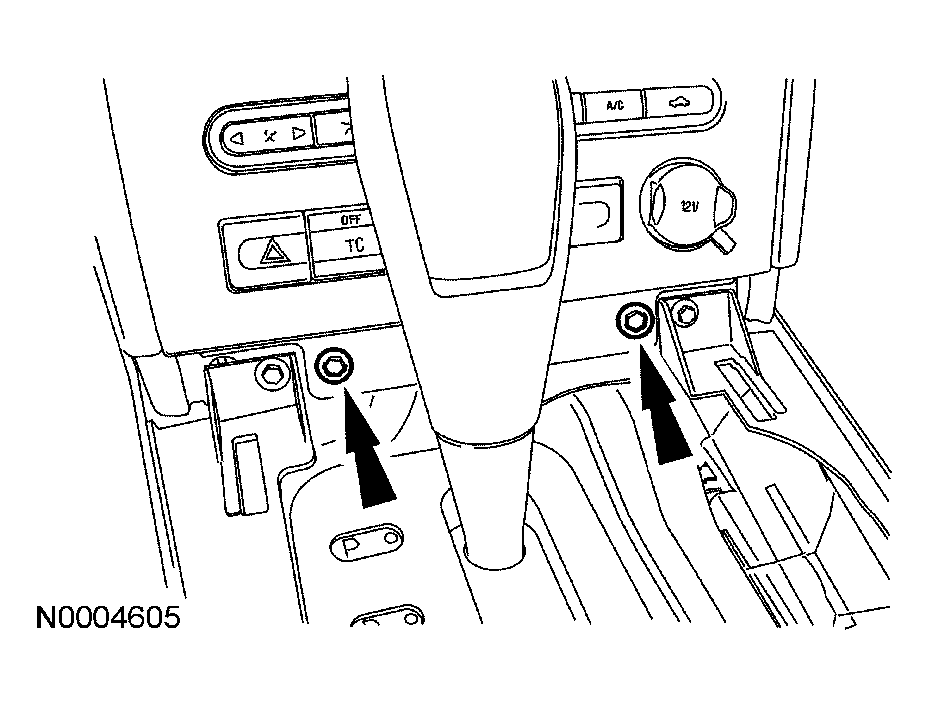

    Fig 1: Removing/Installing Instrument Panel Center Finish Panel Screws
    G03989205Courtesy of FORD MOTOR CO.
  4. Remove the instrument panel center finish panel.
    • Disconnect the electrical connectors.
  5. To install, reverse the removal procedure.
