Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

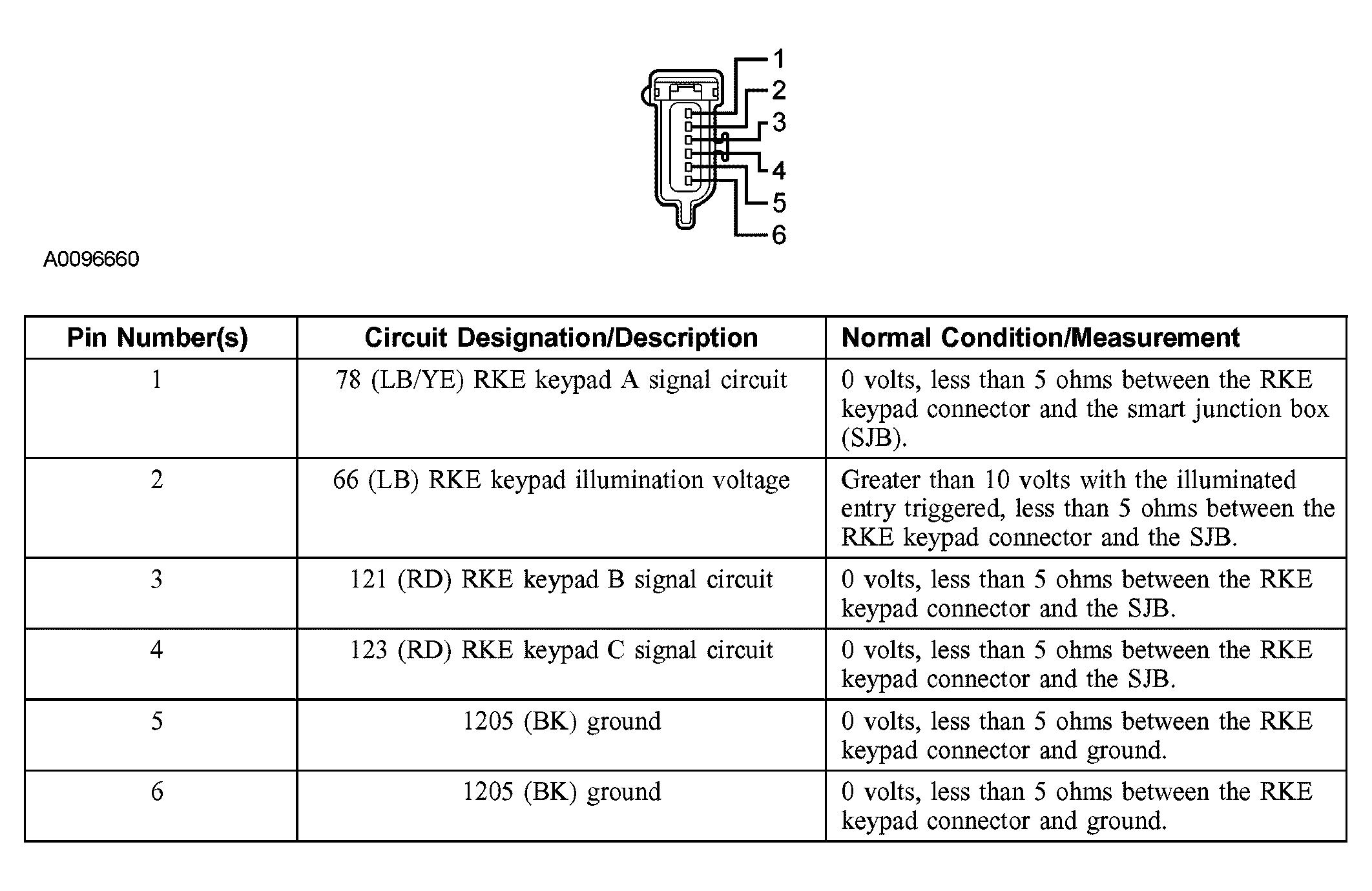

Fig 1: Identifying Remote Keyless Entry Keypad C500 Pins

Courtesy of FORD MOTOR CO.

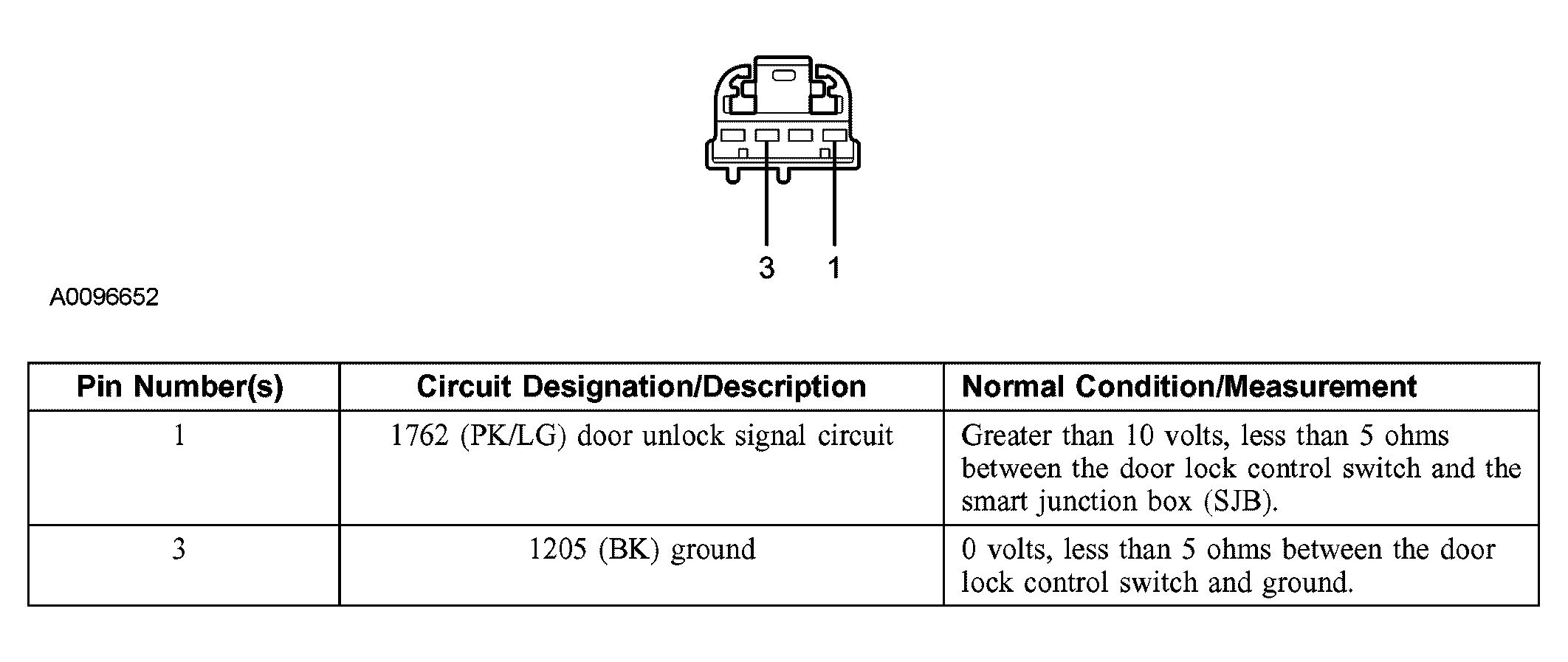

Fig 2: Identifying LH Front Door Lock Control Switch C541 And RH Front Door Lock Control Switch C605 Pins

Courtesy of FORD MOTOR CO.

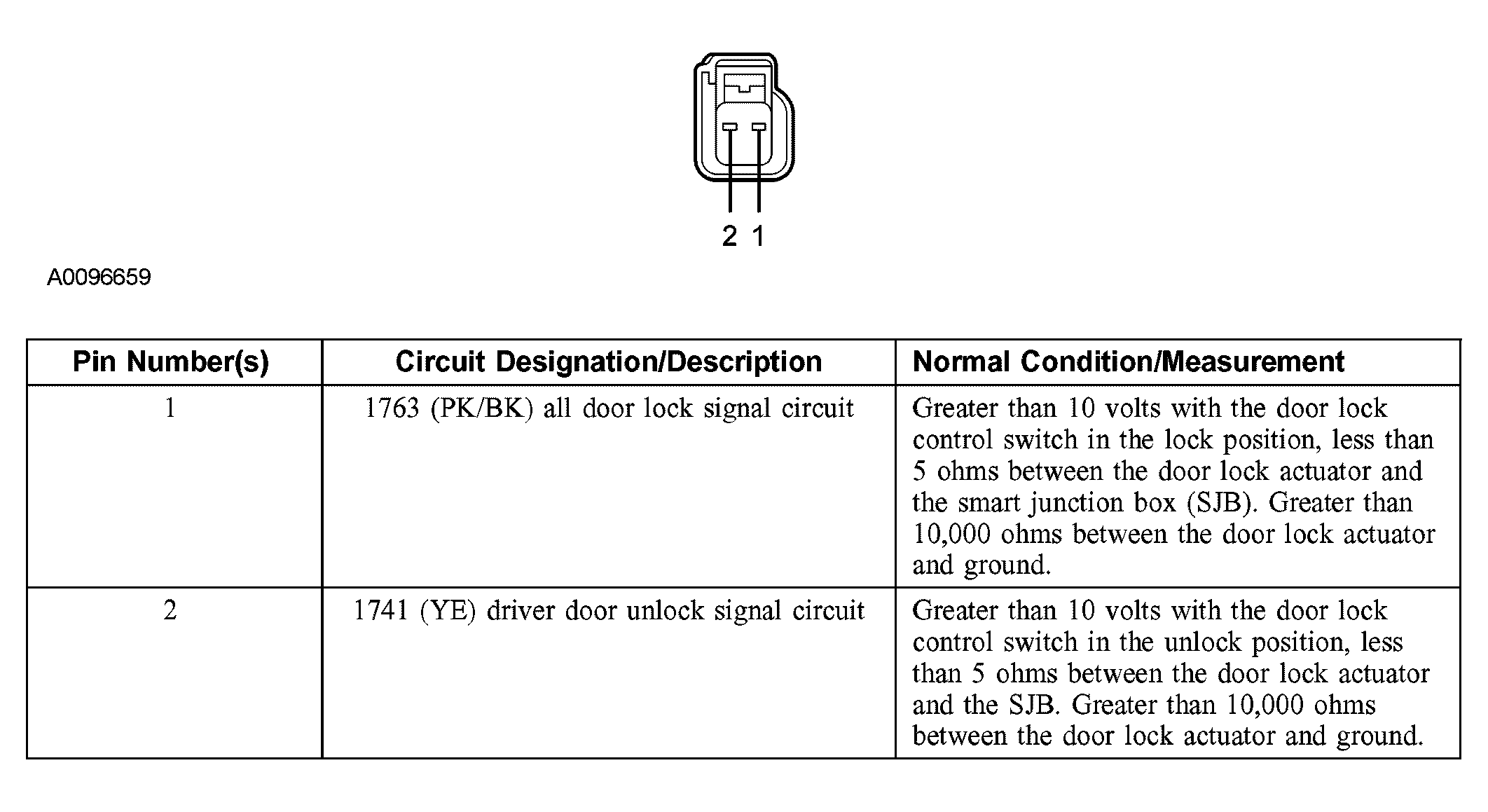

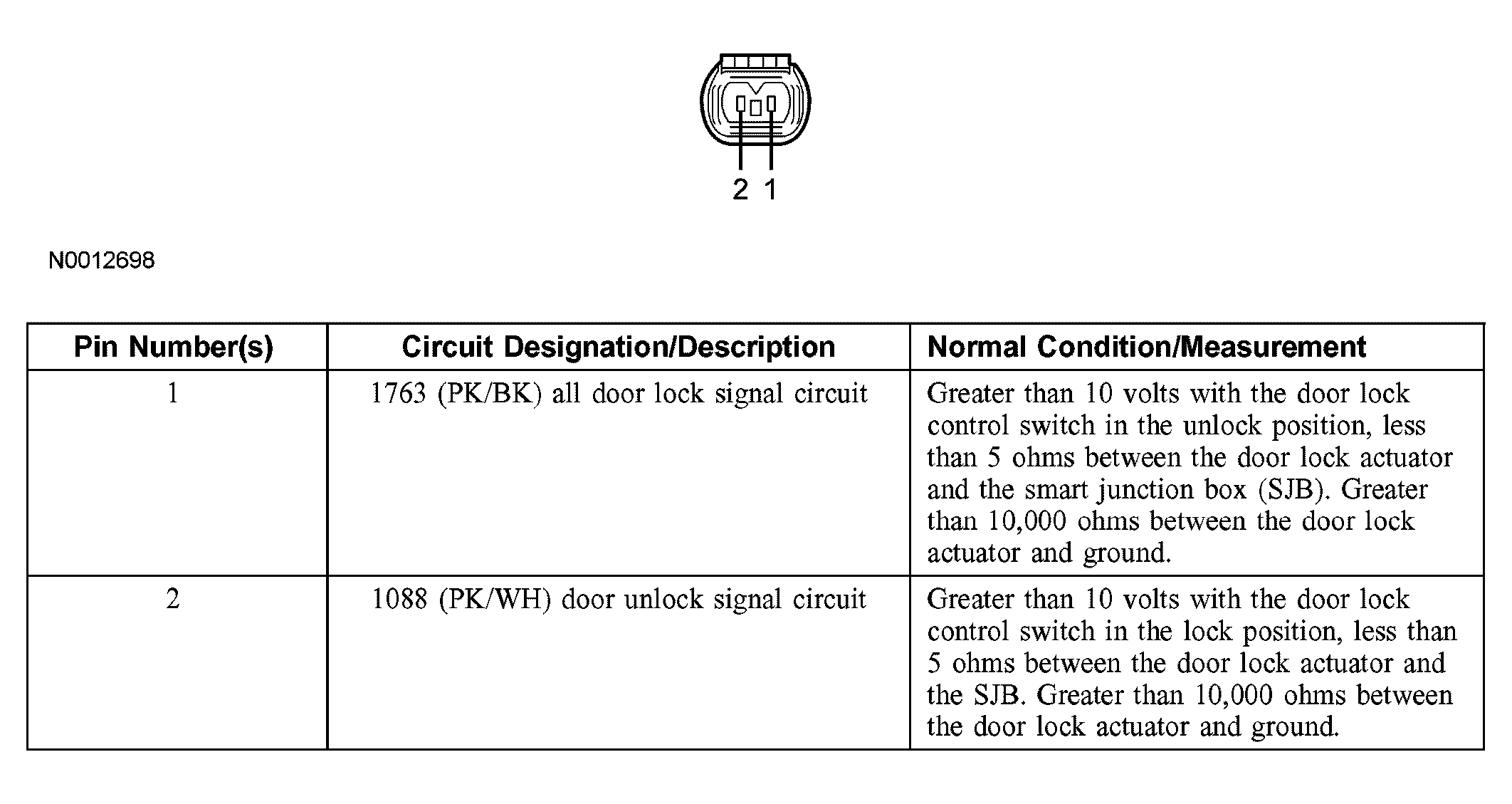

Fig 3: Identifying LH Front Door Lock Actuator C525 Pins

Courtesy of FORD MOTOR CO.

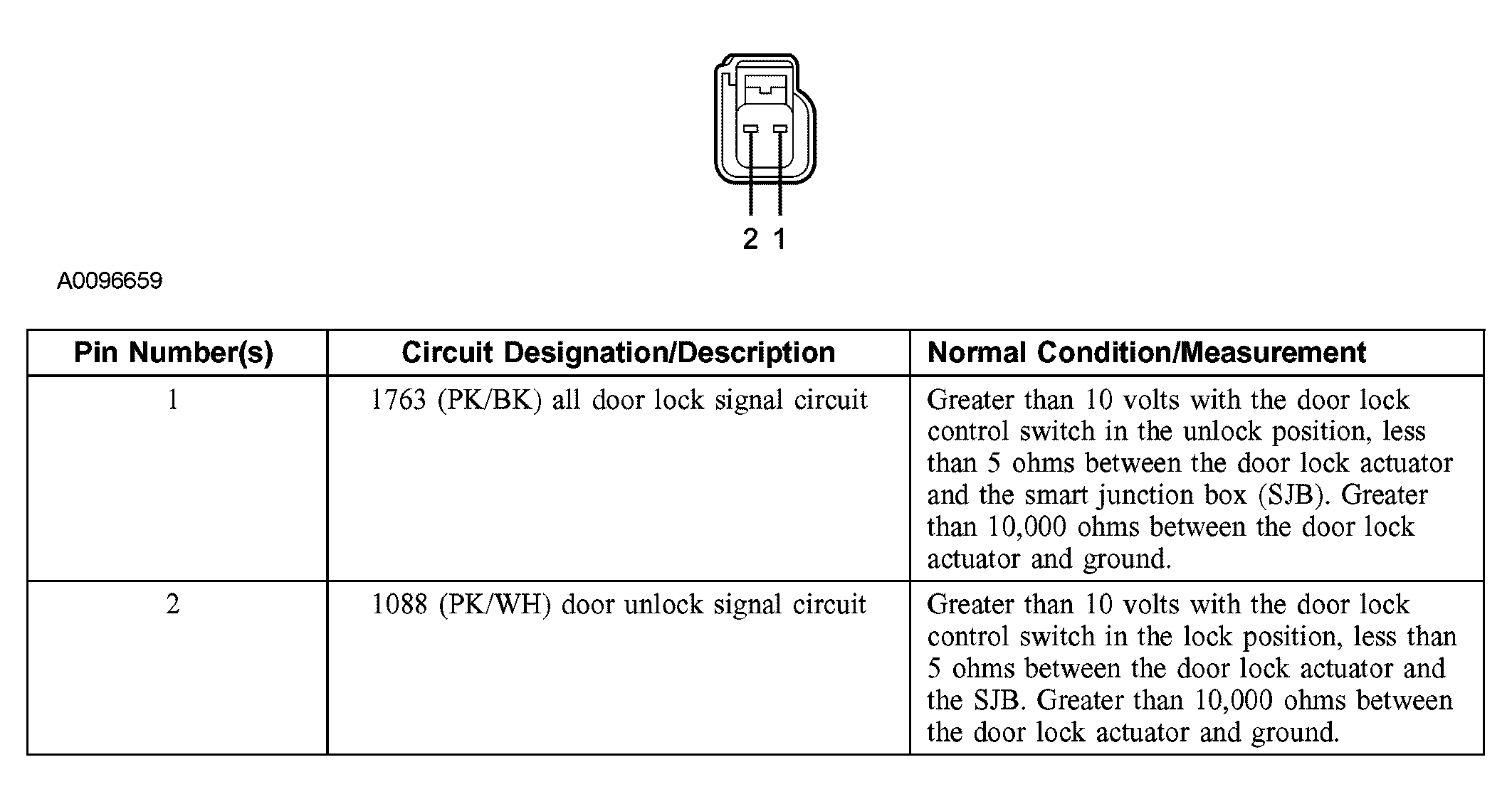

Fig 4: Identifying RH Front Door Lock Actuator C603 Pins

Courtesy of FORD MOTOR CO.

Fig 5: Identifying LH Rear Door Lock Actuator C704 And RH Rear Door Lock Actuator C804 Pins

Courtesy of FORD MOTOR CO.

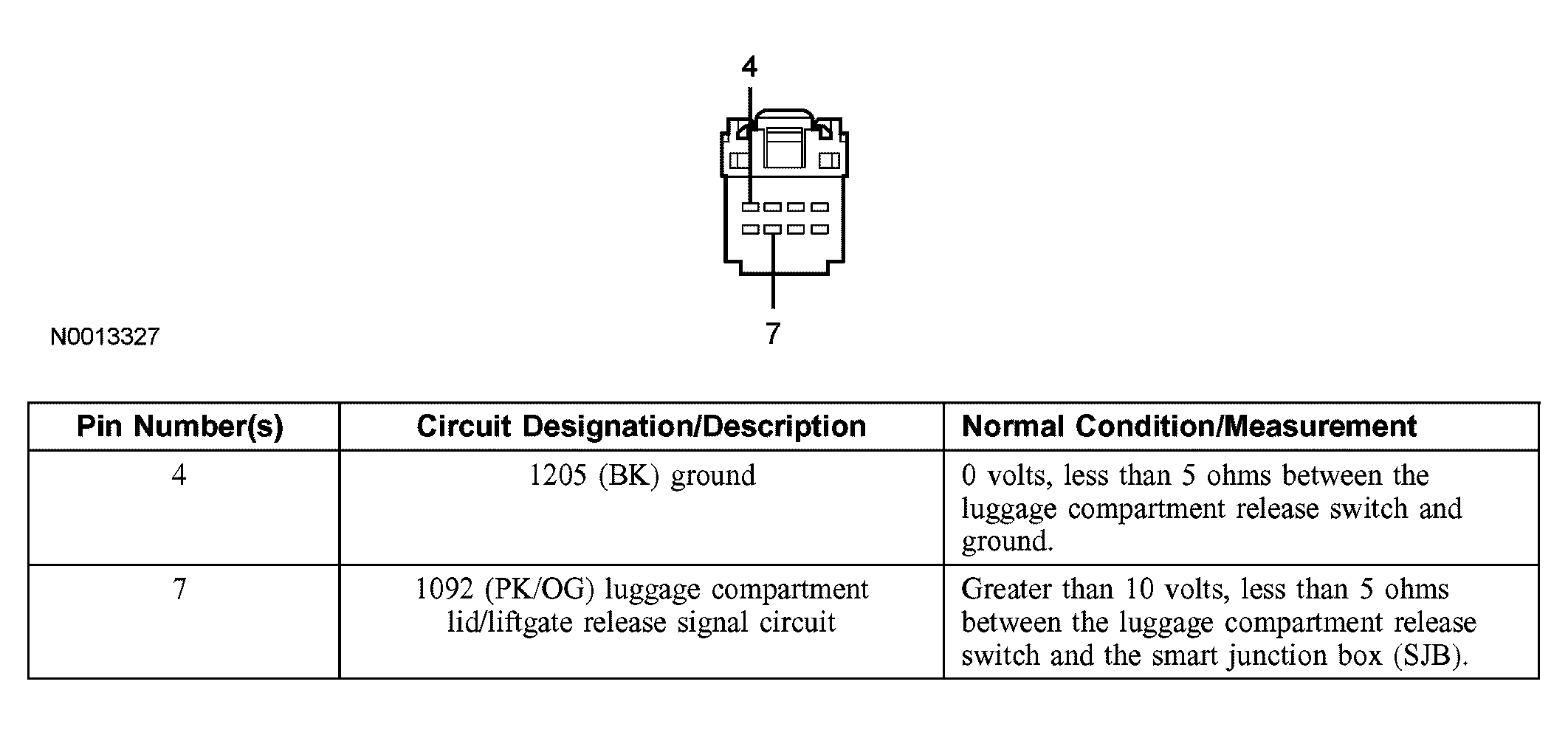

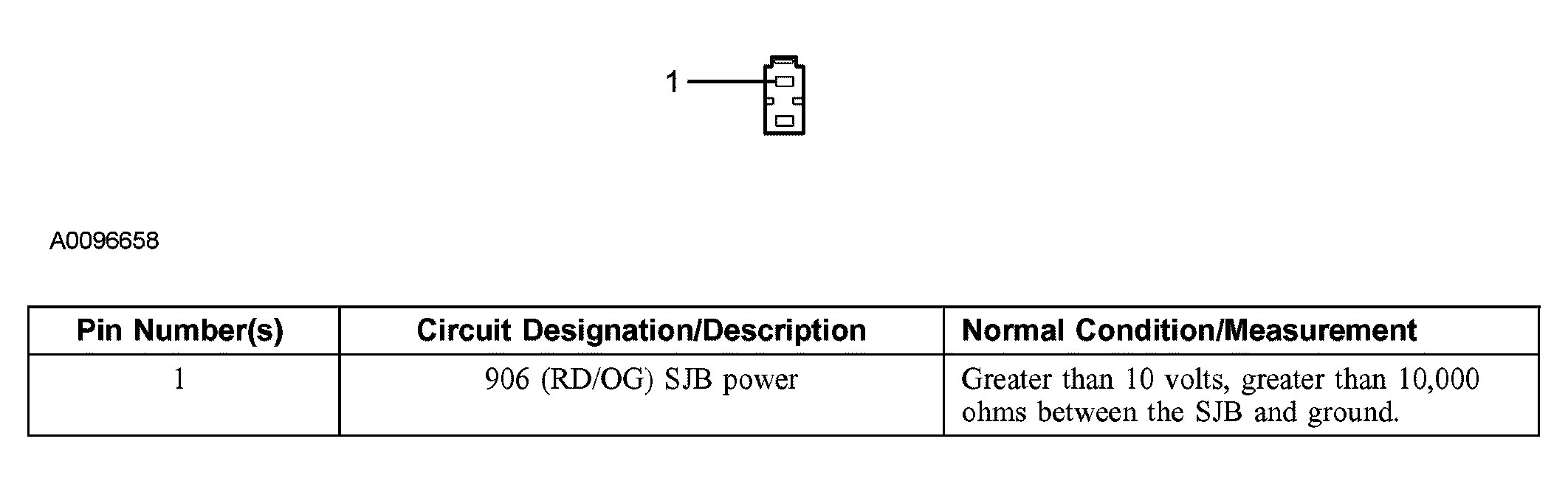

Fig 6: Identifying Luggage Compartment Release Switch C2269 Pins (Vehicles Built Before 1/2005)

Courtesy of FORD MOTOR CO.

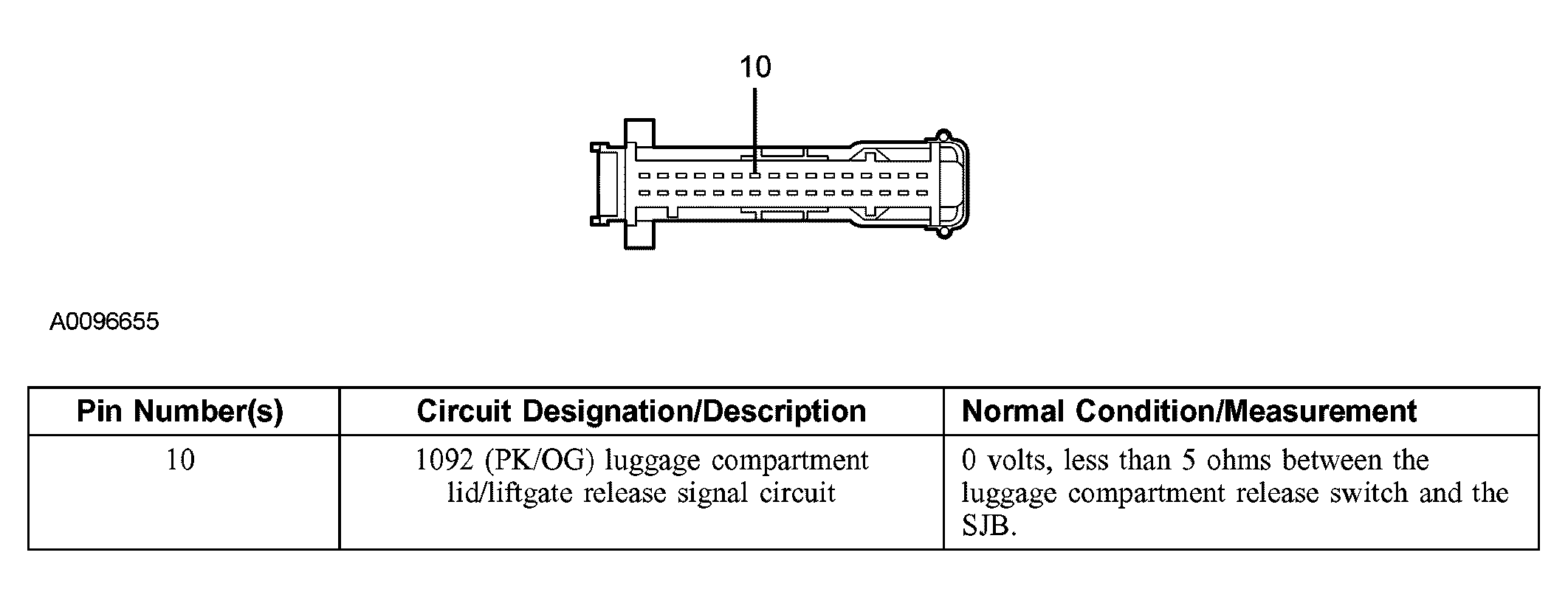

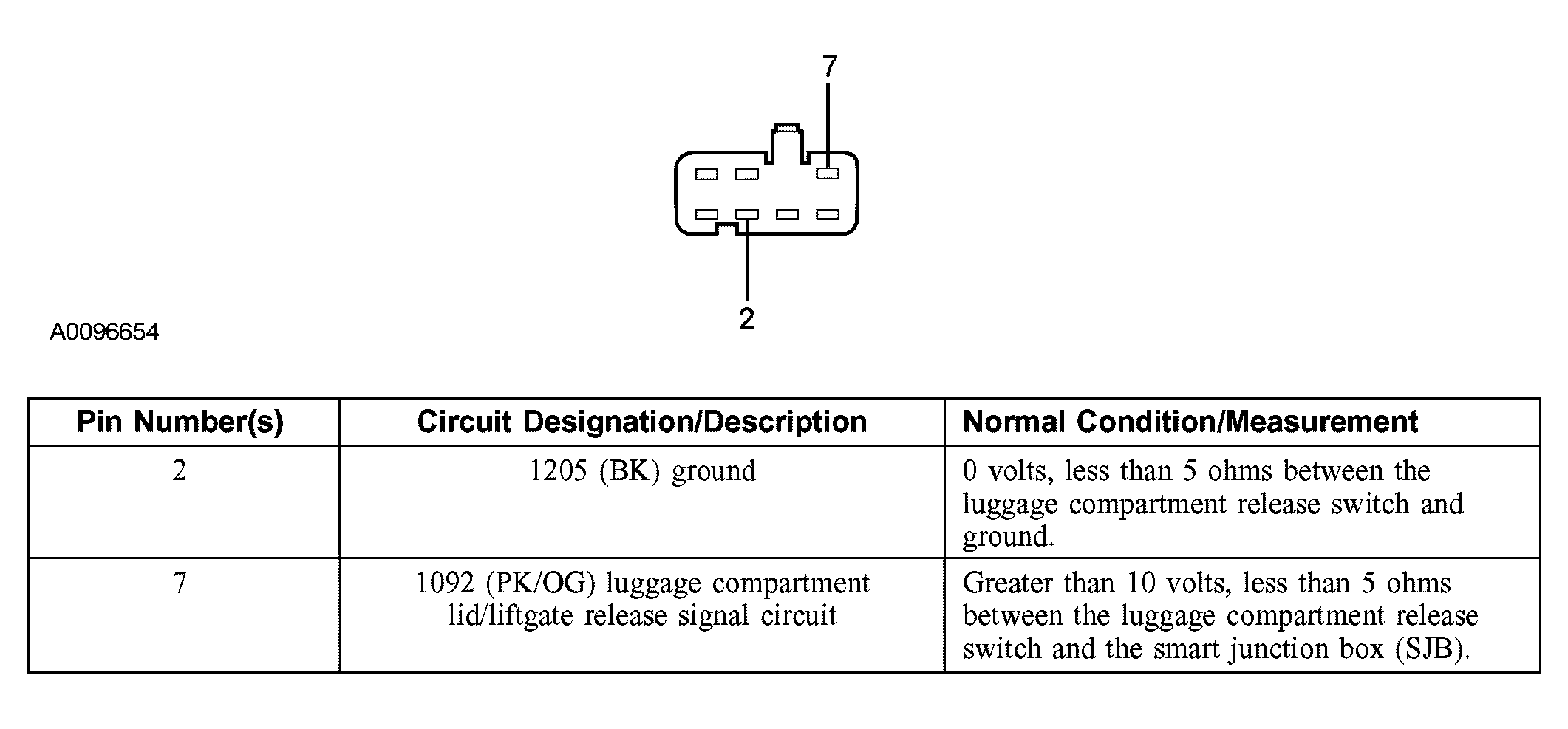

Fig 7: Identifying Luggage Compartment Release Switch C2269 Pins (Vehicles Built After 1/2005)

Courtesy of FORD MOTOR CO.

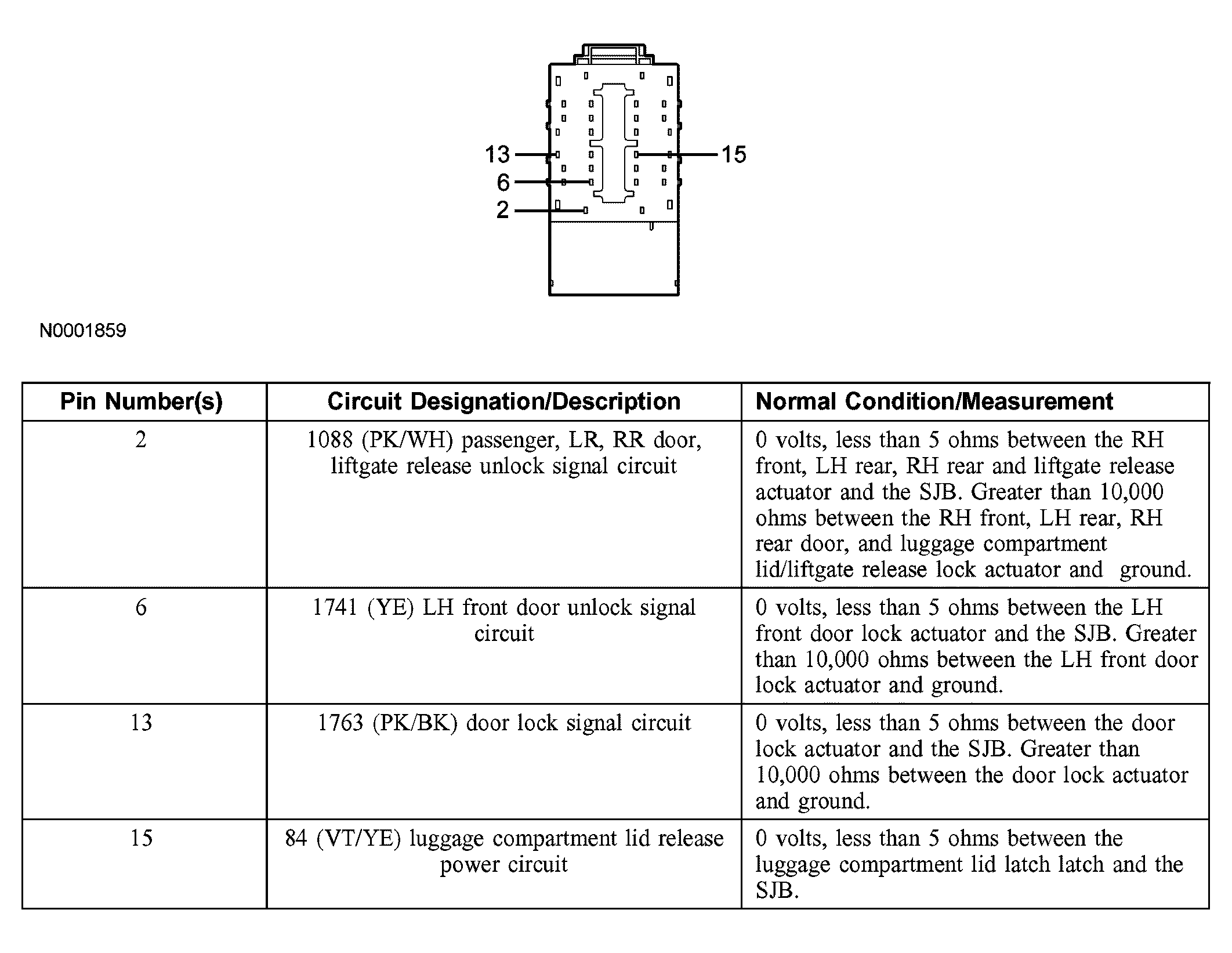

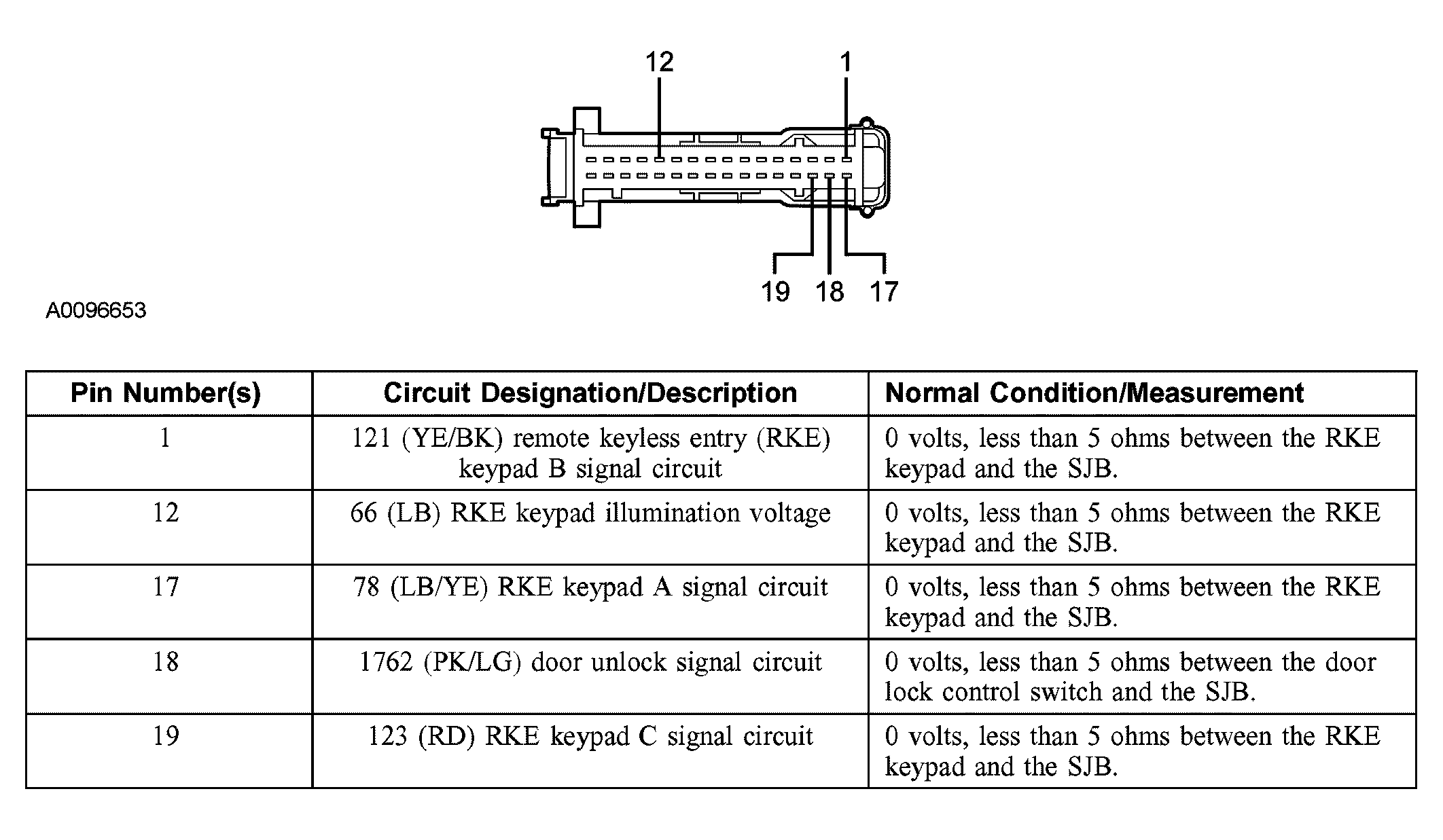

Fig 8: Identifying Smart Junction Box (SJB) C2280c Pins

Courtesy of FORD MOTOR CO.

Fig 9: Identifying Smart Junction Box (SJB) C2280d Pins

Courtesy of FORD MOTOR CO.

Fig 10: Identifying Smart Junction Box (SJB) C2280e Pins

Courtesy of FORD MOTOR CO.

Fig 11: Identifying Smart Junction Box (SJB) C2280g Pins

Courtesy of FORD MOTOR CO.

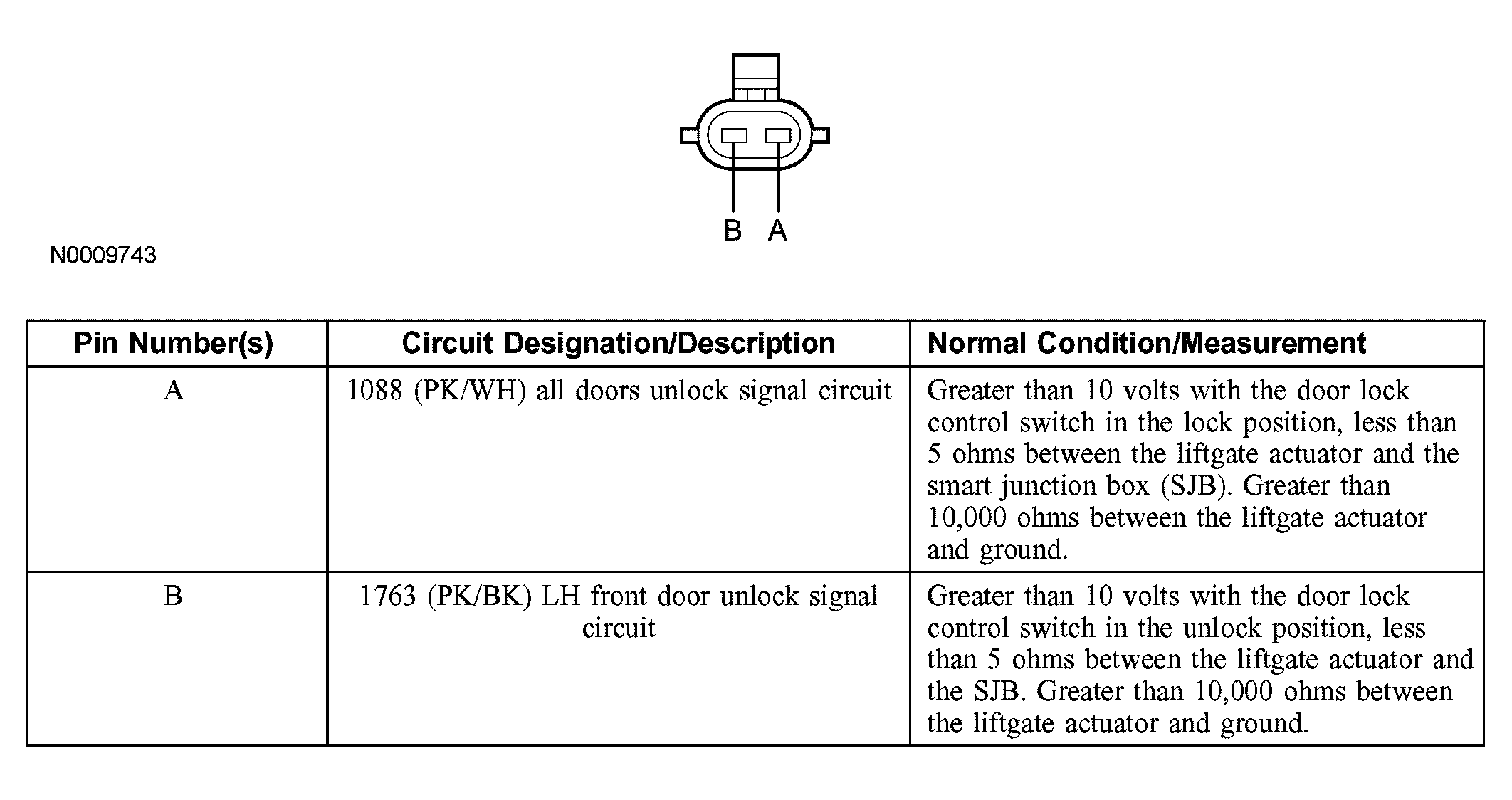

Fig 12: Identifying Liftgate Actuator C4185 Pins

Courtesy of FORD MOTOR CO.

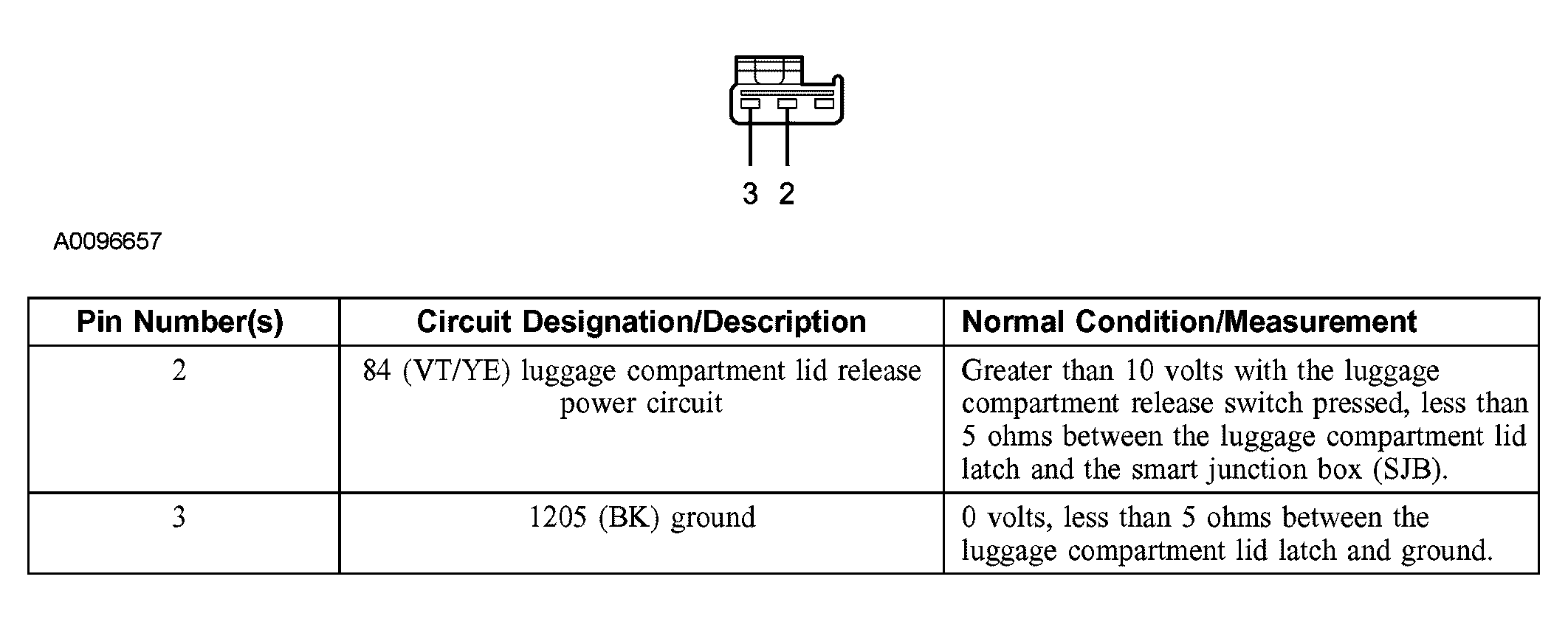

Fig 13: Identifying Luggage Compartment Lid Latch C4302 Pins

Courtesy of FORD MOTOR CO.
