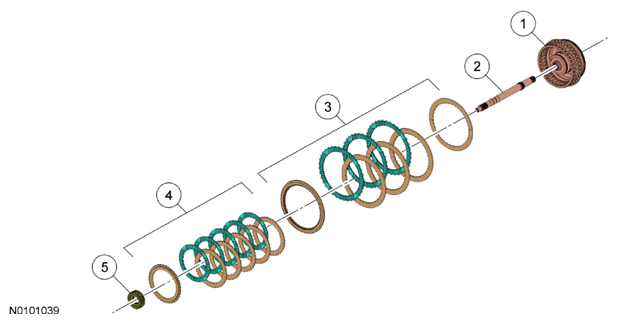

Input Shaft Exploded View
WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
7G384 |
Direct (3, 5, R)/ Overdrive (O/D) (4, 5, 6) clutch hub |
| 2 |
7F213 |
Input shaft |
| 3 |
7B164 |
Direct (3, 5, R) clutch |
| 4 |
7B164 |
O/D (4, 5, 6) clutch |
| 5 |
7D491 |
Center planetary sun gear |
