Input Shaft Cutaway View

WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

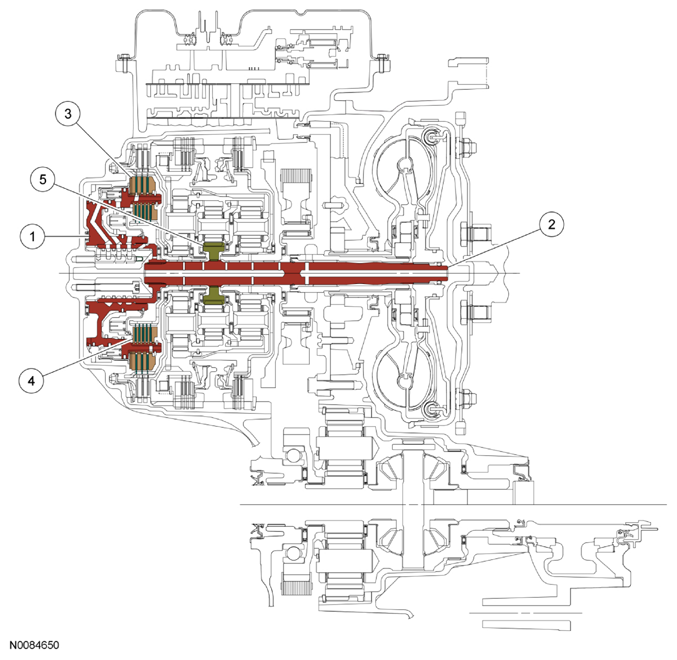

Fig 1: Cutaway View Of Input Shaft Components
G07782512Courtesy of FORD MOTOR CO.
