Transmission Fluid Level Indicator
WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

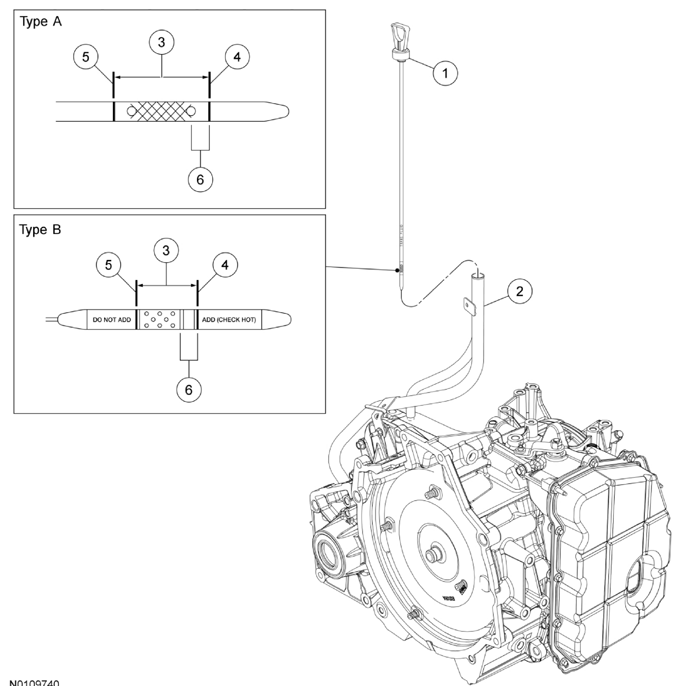

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 7A020 | Transmission fluid level indicator |
| 2 | 7A228 | Transaxle filler tube |
| 3 | - | Correct transmission fluid level at normal operating temperature 85°C-93°C (185°F-200°F) |
| 4 | - | Minimum transmission fluid level mark |
| 5 | - | Maximum transmission fluid level mark |
| 6 | - | Flat tow transmission fluid level |
