Video Camera: Fusion

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

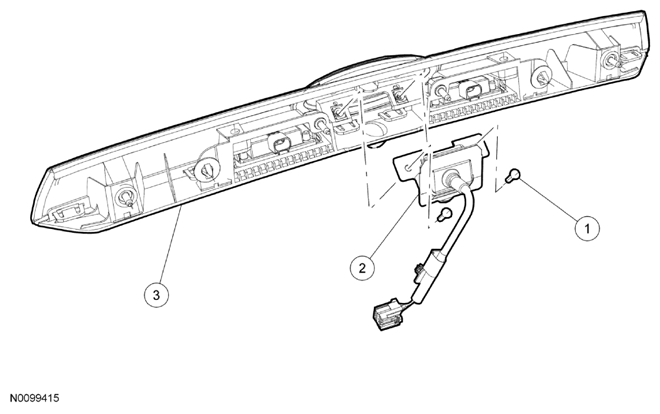

Fig 1: Identifying Video Camera Components (Fusion)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W506842	Video camera screws (2 required)
2	19G490	Video camera
3	-	Luggage compartment lid applique
