Special Tool(s)
WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

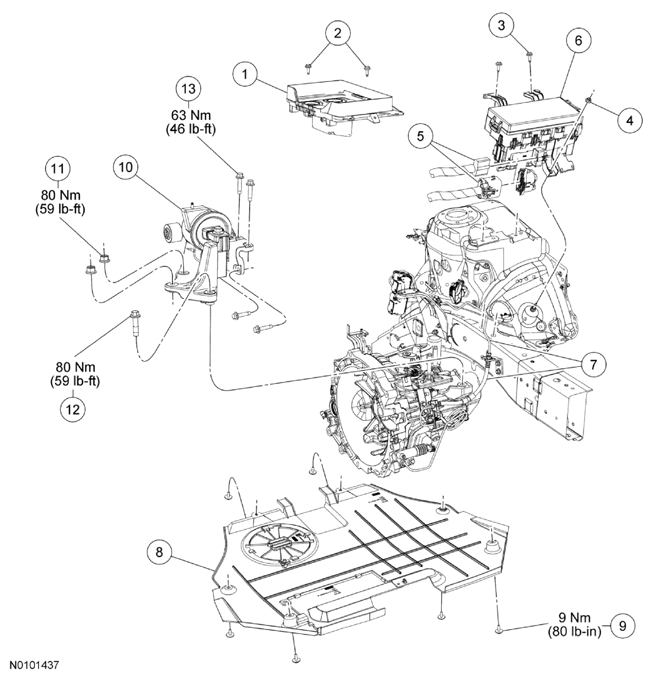

| Support Bar, Engine 303-F072 |
| Item | Part Number | Description |
|---|---|---|
| 1 | 10723 | Battery tray |
| 2 | - | Battery tray bolts (2 required) |
| 3 | - | Power Distribution Box (PDB) bolt (2 required) |
| 4 | - | PDB nut |
| 5 | - | PDB electrical connectors |
| 6 | 14A067 | PDB assembly |
| 7 | - | Clutch hydraulic tube |
| 8 | 5410494 | Splash shield |
| 9 | W707398-S | Splash shield bolt (7 required) |
| 10 | 6F020 | Transaxle rear support insulator |
| 11 | W710645-S | Transaxle rear support insulator nut (2 required) |
| 12 | W711487-S | Transaxle rear support insulator bolt |
| 13 | W709234-S | Transaxle rear support insulator-to-frame bolt (4 required) |
