Thermostatic Expansion Valve Manifold and Tube Assembly: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Electric A/C Compressor Oil YN-32 |
- |
| Motorcraft® PAG Refrigerant Compressor Oil YN-12-D |
WSH-M1C231-B |

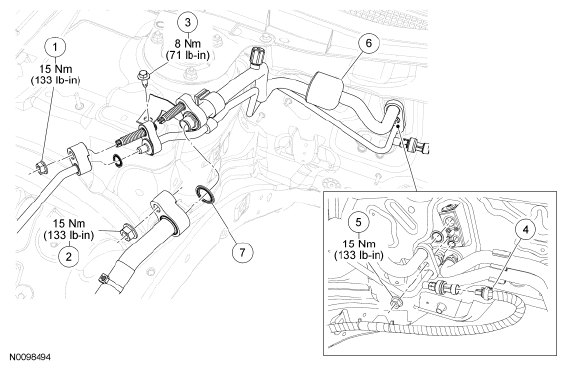

Fig 1: Exploded View Of Thermostatic Expansion Valve Manifold And Tube Assembly Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Condenser-to-evaporator line fitting nut |
| 2 | W520413 | Compressor manifold and tube suction fitting nut |
| 3 | W707399 | Thermostatic Expansion Valve (TXV) manifold and tube bracket bolt |
| 4 | 14290 | A/C pressure transducer electrical connector |
| 5 | W520413 | TXV fitting nut |
| 6 | 19835 | TXV manifold and tube assembly |
| 7 | 19B596 | Gasket seal (4 pieces from kit required) |
