Clutch and Clutch Field Coil: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)
| Holding Fixture, Compressor Clutch Disc and Hub 412-134 |

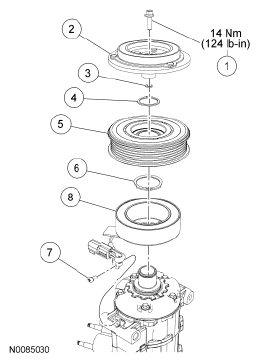

| Item | Part Number | Description |
|---|---|---|
| 1 | W712303 | A/C clutch disc and hub bolt |
| 2 | 19D786 | A/C clutch disc and hub |
| 3 | 19D648 | A/C clutch disc and hub spacers |
| 4 | W712302 | A/C compressor pulley snap ring |
| 5 | 19D784 | A/C compressor pulley |
| 6 | W712301 | A/C clutch field coil snap ring |
| 7 | W712300 | A/C clutch field coil electrical connector clip screw |
| 8 | 19D798 | A/C clutch field coil |
