Air Conditioning (A/C) Pressure Transducer
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

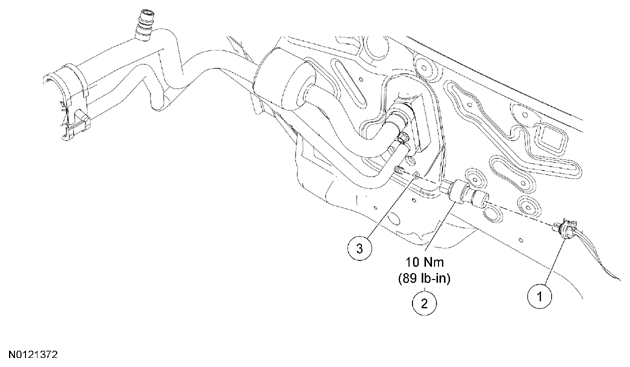

Fig 1: Exploded View Of Air Conditioning (A/C) Pressure Transducer Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | A/C pressure transducer electrical connector (part of 14290) |
| 2 | 19D594 | A/C pressure transducer |
| 3 | 19E889 | O-ring seal |
- Disconnect the A/C pressure transducer electrical connector.
- Remove the A/C pressure transducer.
- To install, tighten to 10 Nm (89 lb-in).
- To install, reverse the removal procedure.
- Install a new O-ring seal.
