Wheel Speed Sensor - Rear, All Wheel Drive (AWD): Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

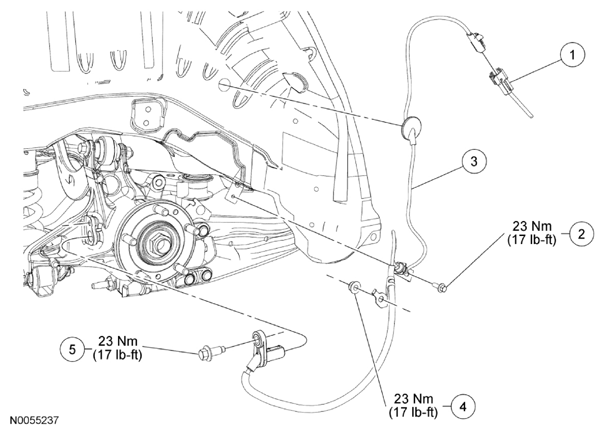

Fig 1: Wheel Speed Sensor Replacement Components With Torque Specifications -- Rear, All Wheel Drive (AWD)
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Wheel speed sensor electrical connector (part of 14A227) |
| 2 | W505253 | Wheel speed sensor harness bolt |
| 3 | 2C186 RH/2C187 LH | Wheel speed sensor |
| 4 | W520102 | Wheel speed sensor harness nut |
| 5 | W500222 | Wheel speed sensor bolt |
