Rear Disc Brake Shield - Front Wheel Drive (FWD): Notes

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

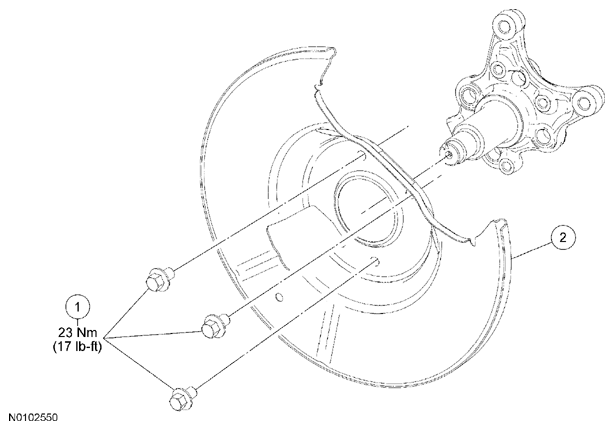

Fig 1: Exploded View Of Brake Disc Shield Components With Torque Specifications - Front Wheel Drive (FWD)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	N500020	Brake disc shield bolts (3 required)
2	2K045	RH/2K046 LH Brake disc shield
