Material Specifications
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS TABLE
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

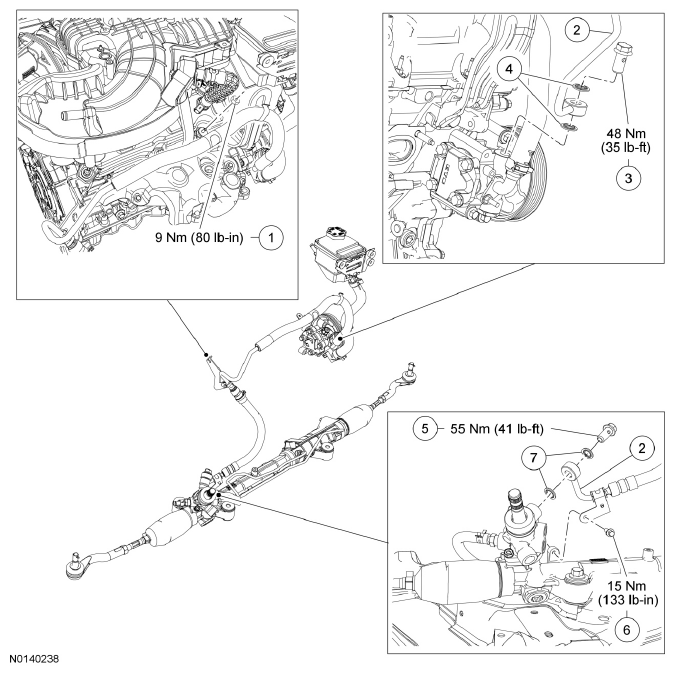

Fig 1: Power Steering Pump To Steering Gear Pressure Line Replacement Components With Torque Specifications
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W703836 | Pressure line bracket-to-RH valve cover stud nut |
| 2 | - | Power steering pressure line (part of 3A719 service kit) |
| 3 | - | Pressure line-to-power steering pump banjo bolt (part of 3A719 service kit) |
| 4 | - | Power steering pressure line seals (part of 3A719 service kit) |
| 5 | - | Pressure line-to-steering gear banjo bolt (part of 3A719 service kit) |
| 6 | W712115 | Pressure line bracket-to-steering gear bolt |
| 7 | - | Power steering pressure line seals (part of 3A719 service kit) |
