Servo Kit - 3.5L Engine
WARNING: This page is about a different car, the 2011 Lincoln MKZ and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Kit assembly part number is 7D027.

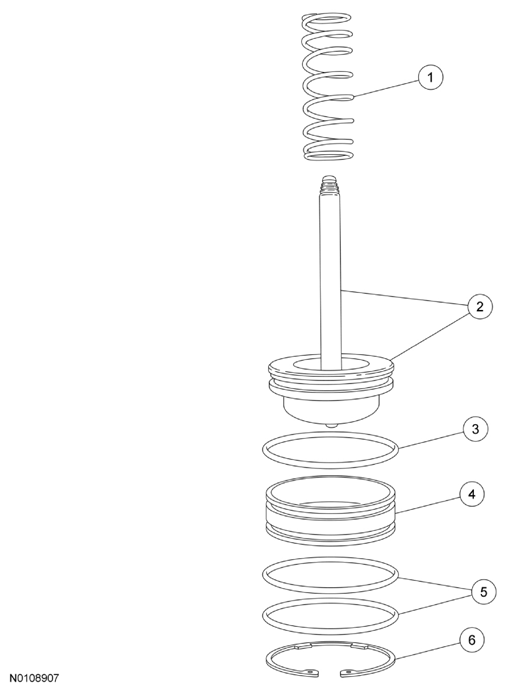

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
- |
Servo spring |
| 2 |
- |
Servo piston |
| 3 |
7D024 |
Servo piston O-ring |
| 4 |
7D027 |
Servo cover |
| 5 |
7D024 |
Servo cover O-rings (2 required) |
| 6 |
7H074 |
Servo retainer |
