Lower Intake Manifold: Notes

WARNING: This page is about a different car, the 2011 Lincoln MKZ and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

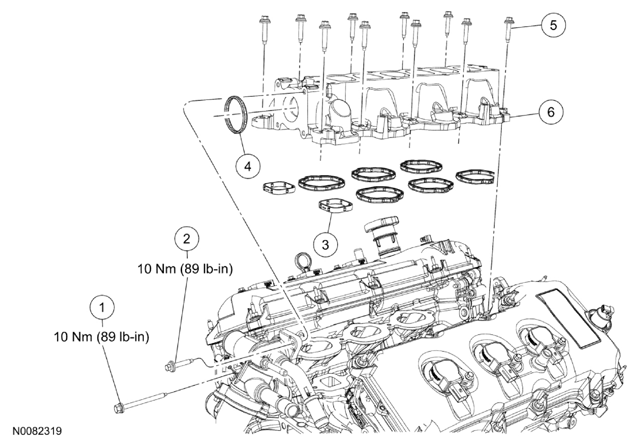

Fig 1: Exploded View Of Lower Intake Manifold Components With Torque Specifications
G07784464Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W708607 Thermostat housing-to-lower intake manifold bolt
2 W503279 Thermostat housing-to-lower intake manifold bolt
3 9439 Lower intake manifold gasket (8 required)
4 8A571 Thermostat housing gasket
5 W503279 Lower intake manifold bolt (10 required)
6 9K461 Lower intake manifold
