Engine Upper
WARNING: This page is about a different car, the 2011 Lincoln MKZ and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

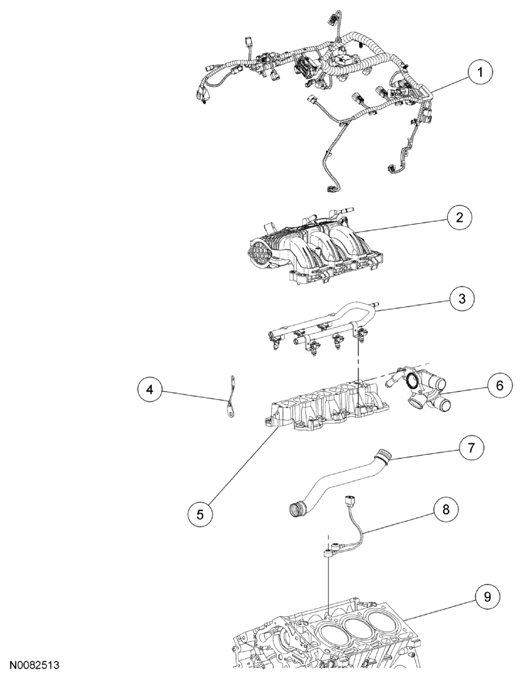

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
12A581 |
Engine control harness |
| 2 |
9424 |
Upper intake manifold |
| 3 |
9F792 |
Fuel rail |
| 4 |
9J444 |
Upper intake manifold support bracket |
| 5 |
9424 |
Lower intake manifold |
| 6 |
8A586 |
Thermostat housing |
| 7 |
9N271 |
Coolant tube |
| 8 |
12A699 |
Knock Sensor (KS) |
| 9 |
6010 |
Cylinder block |
