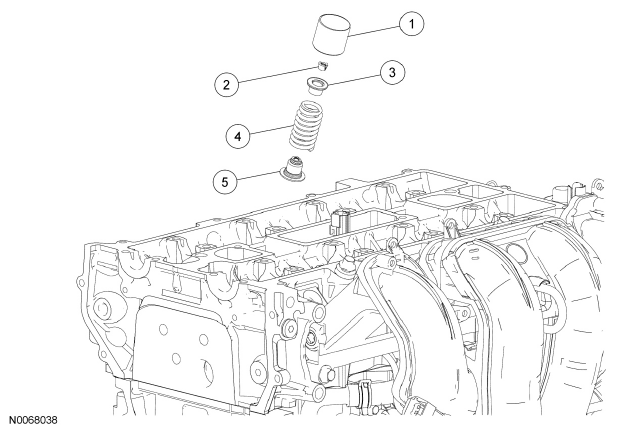

Valve Train Components - Exploded View
WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 6500 | Valve tappet (16 required) |
| 2 | 6518 | Valve collet (16 required) |
| 3 | 6514 | Valve spring retainer (16 required) |
| 4 | 6513 | Valve spring (16 required) |
| 5 | 6517 | Valve seal (16 required) |
- For additional information, refer to the appropriate procedures in this service information.
