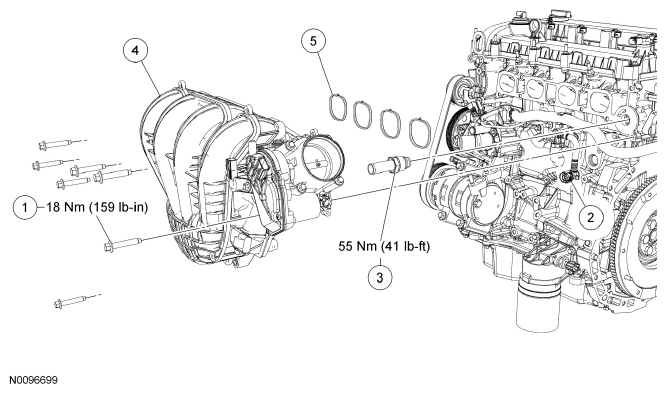

Intake Manifold (View 2 of 2)
WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
W500311 |
Intake manifold bolt (7 required) |
| 2 |
6A785 |
Crankcase vent oil separator tube (part of 6A785) |
| 3 |
9E470 |
EGR tube |
| 4 |
9424 |
Intake manifold |
| 5 |
9461 |
Intake manifold gasket |
