Intake Manifold

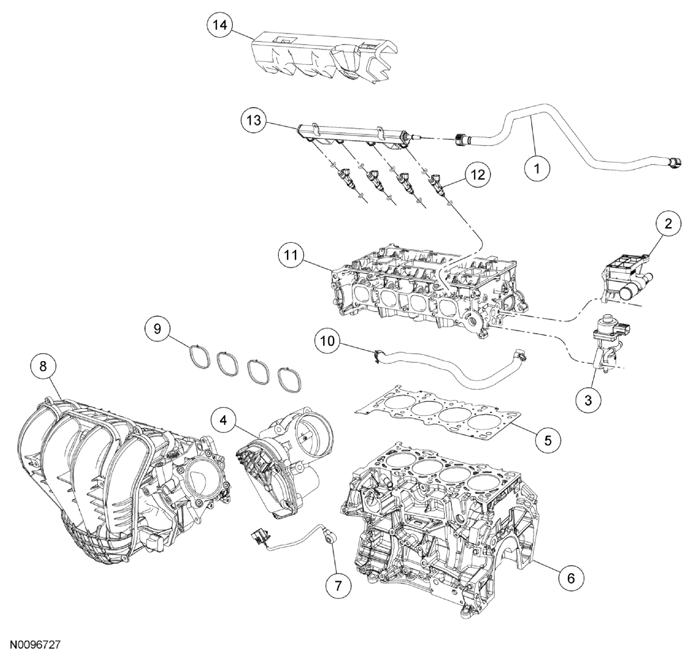

Fig 1: Exploded View Of Intake Manifold Components

Courtesy of FORD MOTOR CO.

All vehicles

NOTE: If the oil squirters are being reused, they must be installed in the same location as marked during disassembly.
NOTE: The front bulkhead does not have an oil squirter.

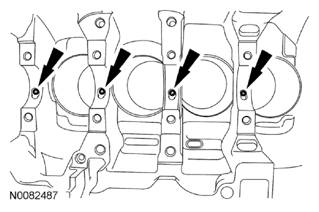

Fig 2: Locating Oil Squirters
Courtesy of FORD MOTOR CO.
1. Install the 4 oil squirters.
   • Tighten to 4 Nm (35 lb-in).
2. Measure each of the crankshaft main bearing journal diameters in at least 2 directions and record the smallest diameter for each journal.

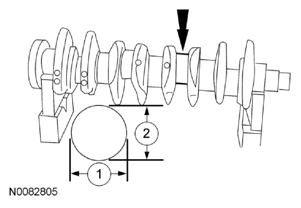

   Fig 3: Identifying Crankshaft Main Bearing Journal Diameters

   Courtesy of FORD MOTOR CO.
3. Position the main bearing beam in the engine block with the main bearing beam mounted flush with the rear face of the engine block.
   Fig 4: Locating Main Bearing Beam Positions

   Courtesy of FORD MOTOR CO.
4. Using the original main bearing beam bolts, install and tighten the 10 main bearing beam bolts.
   • Tighten the bolts in the sequence shown in the illustration in 3 stages.
   • Stage 1: Tighten to 5 Nm (44 lb-in).
   • Stage 2: Tighten to 25 Nm (18 lb-ft).
   • Stage 3: Tighten an additional 90 degrees.
   Fig 5: Identifying Main Bearing Beam Bolts Tightening Sequence

   Courtesy of FORD MOTOR CO.
5. Measure each crankshaft block main bearing bore diameter.
   • Remove the bolts and the main bearing beam.
   • Discard the main bearing beam bolts.

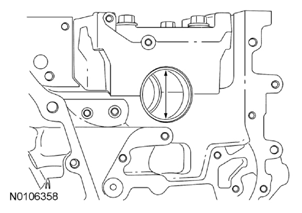

   Fig 6: Identifying Crankshaft Block Main Bearing Bore Diameter

   Courtesy of FORD MOTOR CO.
6. Using the chart, select the crankshaft main bearings.

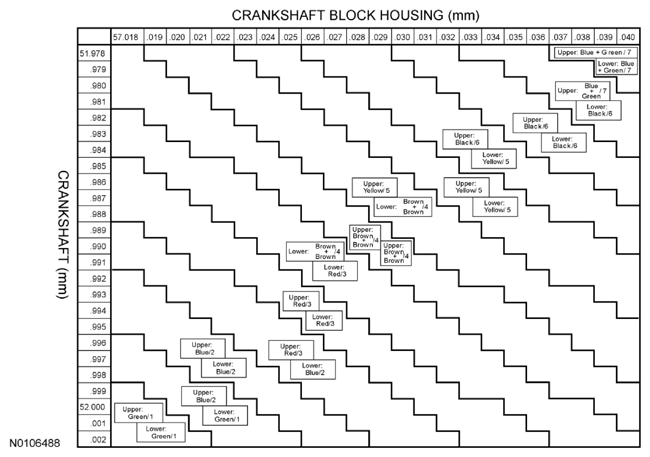

   Fig 7: View Of Crankshaft Main Bearings Chart

   Courtesy of FORD MOTOR CO.
NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.
7. Using the original connecting rod cap bolts, install the connecting caps and bolts.
   • Tighten the bolts in 2 stages.
   • Stage 1: Tighten to 29 Nm (21 lb-ft).
   • Stage 2: Tighten an additional 90 degrees.
8. Measure the connecting rod large end bore in 2 directions. Record the smallest measurement for each connecting rod.
   • Remove the bolts and the connecting rod cap.
   • Discard the connecting rod cap bolts.
   Fig 8: Identifying Connecting Rod Large End Bore Measuring Directions

   Courtesy of FORD MOTOR CO.
9. Measure each of the crankshaft connecting rod bearing journal diameters in at least 2 directions. Record the smallest measurement for each connecting rod journal.
   Fig 9: Identifying Crankshaft Connecting Rod Bearing Journal Diameters

   Courtesy of FORD MOTOR CO.
10. Using the chart, select the correct connecting rod bearings for each crankshaft connecting rod journal.

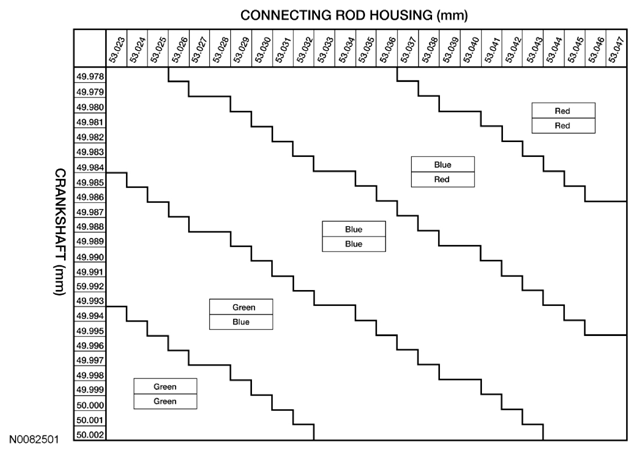

    Fig 10: View Of Connecting Rod Bearings Chart

    Courtesy of FORD MOTOR CO.
NOTE: Before assembling the cylinder block, all sealing surfaces must be free of chips, dirt, paint and foreign material. Also, make sure the coolant and oil passages are clear.
NOTE: If reusing the crankshaft main bearings, install them in their original positions and orientation as noted during disassembly.
NOTE: The center bulkhead is the thrust bearing.

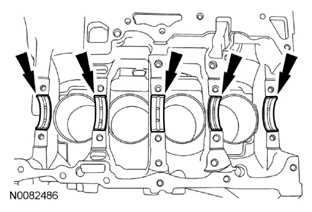

Fig 11: Locating Main Bearings Of Cylinder Block
Courtesy of FORD MOTOR CO.
11. Lubricate the upper crankshaft main bearings with clean engine oil and install the 5 crankshaft main bearings in the cylinder block.
NOTE: If reusing the crankshaft main bearings, install them in their original positions and orientation as noted during disassembly.

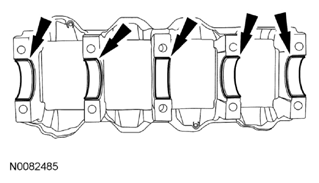

Fig 12: Locating Main Bearings Of Main Bearing Beam
Courtesy of FORD MOTOR CO.
12. Lubricate the crankshaft main bearings with clean engine oil and install the 5 crankshaft main bearings in the main bearing beam.
13. Lubricate journals on the crankshaft with clean engine oil.
14. Position the crankshaft in the cylinder block.
    Fig 13: Locating Crankshaft

    Courtesy of FORD MOTOR CO.
15. Lubricate the 10 main bearing beam side fit surfaces (front 2 shown in the illustration) with clean engine oil.
    Fig 14: Locating Main Bearing Beam Side Fit Surfaces

    Courtesy of FORD MOTOR CO.
16. Lubricate the crankshaft bearing journals on the main bearing beam with clean engine oil. Then position the main bearing beam in the engine block with the main bearing beam mounted flush with the rear face of the engine block.
    Fig 15: Locating Main Bearing Beam Positions

    Courtesy of FORD MOTOR CO.
NOTE: Lubricate the main bearing beam bolts threads and under the bolt heads with clean engine oil.
NOTE: Position the crankshaft to the rear of the cylinder block, then position the crankshaft to the front of the cylinder block before tightening the main bearing beam bolts.
Fig 16: Identifying Main Bearing Beam Bolts Tightening Sequence
Courtesy of FORD MOTOR CO.
17. Install and tighten the 10 new main bearing beam bolts.
    • Tighten the bolts in the sequence shown in the illustration in 3 stages.
    • Stage 1: Tighten to 5 Nm (44 lb-in).
    • Stage 2: Tighten to 25 Nm (18 lb-ft).
    • Stage 3: Tighten an additional 90 degrees.

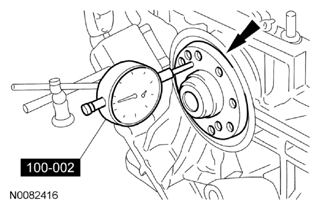

18. Using the Dial Indicator Gauge with Holding Fixture, measure crankshaft end play.
    • Position the crankshaft to the rear of the cylinder block.
    • Zero the Dial Indicator Gauge with Holding Fixture.
    • Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
    • Acceptable crankshaft end play is 0.22-0.43 mm (0.008-0.016 in). If the crankshaft end play exceeds the specified range, install new parts as necessary.
    Fig 17: Measuring Crankshaft End Play Using Dial Indicator Gauge With Holding Fixture

    Courtesy of FORD MOTOR CO.
NOTE: Be sure not to scratch the cylinder wall or crankshaft journal with the connecting rod. Push the piston down until the connecting rod bearing seats on the crankshaft journal.
NOTE: Lubricate the pistons, piston rings, connecting rod bearings and the entire cylinder bores with clean engine oil.
NOTE: Make sure the piston arrow on top is facing toward the front of the engine.

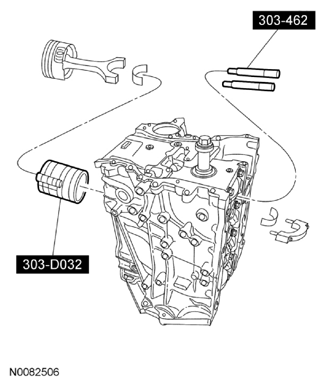

Fig 18: Installing Piston And Connecting Rod Assemblies Using The Piston Ring Compressor And The Connecting Rod Installer
Courtesy of FORD MOTOR CO.
19. Using the Piston Ring Compressor and the Connecting Rod Installer, install the piston and connecting rod assemblies.
    • When installing the pistons and connecting rod assemblies, the oil ring gaps must be positioned 60 degrees apart from each other and a minimum of 90 degrees from the expander gap.
    • The position of the upper and lower compression ring gaps are not controlled for installation.
NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.
NOTE: Install connecting rod caps and bolts on the connecting rods for cylinders 1 and 4 first and tighten. Then rotate crankshaft 180 degrees and install connecting rod caps and bolts on connecting rods for cylinders 2 and 3 and tighten.
NOTE: After installation of each connecting rod cap, rotate the crankshaft to verify smooth operation.
Fig 19: Locating Connecting Rod Cap Bolts
Courtesy of FORD MOTOR CO.
20. Install the connecting rod caps and the new bolts.
    • Tighten the bolts in 2 stages.
    • Stage 1: Tighten to 29 Nm (21 lb-ft).
    • Stage 2: Tighten an additional 90 degrees.

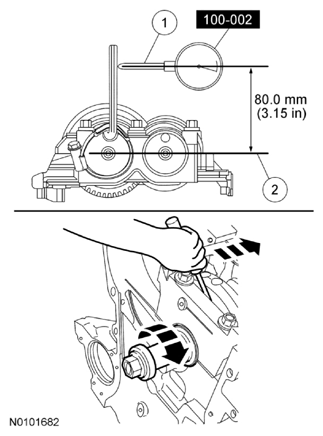

21. Install the Crankshaft TDC Timing Peg and rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the Crankshaft TDC Timing Peg. The engine is now at Top Dead Center (TDC).

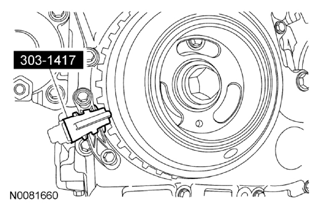

    Fig 20: Remove/Install Crankshaft TDC Timing Peg

    Courtesy of FORD MOTOR CO.
NOTE: Due to the precision interior construction of the balancer unit, it should not be disassembled.
NOTE: The original adjustment shims must be installed in their original position.
NOTE: Confirm by visual inspection that there is no damage to the balancer unit gear and verify that the shaft turns smoothly. If there is any damage or malfunction, replace the balancer unit.
22. Install the adjustment shims in their original position on the seat faces of the balancer unit.
23. With the balancer unit shaft marks in the TDC position, slowly install the balancer unit to the cylinder block to avoid interference between the crankshaft drive gear and the balancer unit driven gear.
    Fig 21: Locating Marking On Top Of Balancer Unit And Shafts

    Courtesy of FORD MOTOR CO.
24. Install the balancer unit bolts.
    • Tighten in the sequence shown in the illustration in 2 stages.
    • Stage 1: Tighten to 25 Nm (18 lb-ft).
    • Stage 2: Tighten to 50 Nm (37 lb-ft).

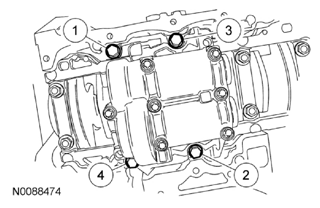

    Fig 22: Identifying Balancer Unit Bolts Tightening Sequence

    Courtesy of FORD MOTOR CO.
25. Remove the Crankshaft TDC Timing Peg.
    Fig 23: Remove/Install Crankshaft TDC Timing Peg

    Courtesy of FORD MOTOR CO.
26. Rotate the crankshaft to confirm that there are no meshing problems between the balancer unit gear and the crankshaft gear.
27. Install the Crankshaft TDC Timing Peg and rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the Crankshaft TDC Timing Peg.
    • Remove the Crankshaft TDC Timing Peg.
    Fig 24: Remove/Install Crankshaft TDC Timing Peg

    Courtesy of FORD MOTOR CO.
NOTE: Measure the backlash and verify that it is within specified range at all of the following 6 positions: 10 degrees, 30 degrees, 100 degrees, 190 degrees, 210 degrees and 280 degrees. It will be necessary to reset the measuring equipment between measurements.
NOTE: The measurement must be taken with the Dial Indicator Gauge with Holding Fixture, a 5-mm Allen wrench and worm clamp set up as shown in the illustration. Mark the Allen wrench with a file 80 mm (3.149 in) above the driven gear shaft center. Make sure the worm clamp and Allen wrench are not touching the balance shaft housing.
NOTE: For an accurate measurement while measuring the gear backlash, insert a screwdriver as shown in the illustration into the crankshaft No. 1 crankweight area and set both the rotation and the thrust direction with the screwdriver, using a prying action as shown in the illustration.
28. Position the Dial Indicator Gauge with Holding Fixture as shown in the illustration. Measure the gear backlash.
    • Position the Dial Indicator Gauge with Holding Fixture (1) on the Allen wrench 80 mm (3.149 in) above the driven gear shaft center (2) on the balancer unit.
    Fig 25: Measuring Gear Backlash
    Courtesy of FORD MOTOR CO.
    • Rotate the crankshaft clockwise and measure the backlash at all of the following 6 positions: 10 degrees, 30 degrees, 100 degrees, 190 degrees, 210 degrees and 280 degrees.
    • Backlash specifications are 0.005 to 0.101 mm (0.00019 to 0.0039 in).
    • If the backlash exceeds the specified range, carry out the balance shaft backlash procedure. For additional information, refer to the BALANCE SHAFT BACKLASH  procedure in this service information.
NOTE: Failure to position the No. 1 piston at Top Dead Center (TDC) can result in damage to the engine. Turn the engine in the normal direction of rotation only.
29. Turn the crankshaft clockwise to position the No. 1 piston at Top Dead Center (TDC).
NOTE: The Crankshaft TDC Timing Peg will contact the crankshaft and prevent it from turning past TDC. However, the crankshaft can still be rotated in the counterclockwise direction. The crankshaft must remain at the TDC position until the timing drive components and crankshaft pulley are installed.

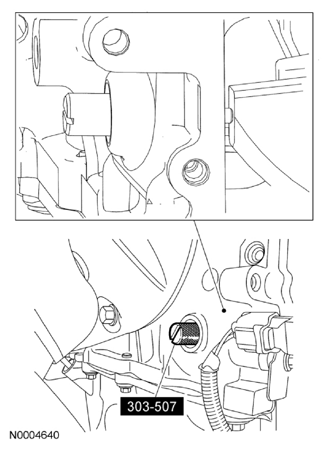

Fig 26: Identifying Crankshaft TDC Timing Peg
Courtesy of FORD MOTOR CO.
30. Install the Crankshaft TDC Timing Peg.
NOTE: Clean the oil pump and cylinder block mating surfaces with metal surface prep.

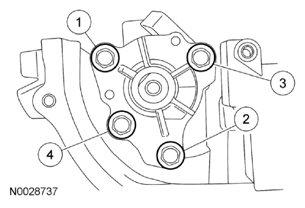

Fig 27: Oil Pump Assembly Bolts Tightening Sequence
Courtesy of FORD MOTOR CO.
31. Install the oil pump assembly. Tighten the 4 bolts in the sequence shown in the illustration in 2 stages:
    • Stage 1: Tighten to 10 Nm (89 lb-in).
    • Stage 2: Tighten to 20 Nm (177 lb-in).

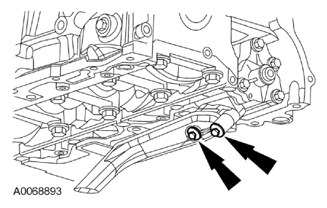

32. Install a new gasket, oil pump pickup tube and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
    Fig 28: Locating Oil Pump Pickup Tube Bolts

    Courtesy of FORD MOTOR CO.
33. Using the Crankshaft Rear Main Oil Seal Installer, install the crankshaft rear main oil seal.

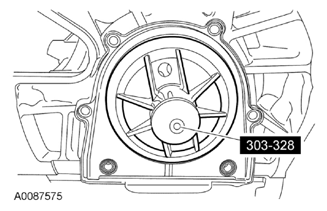

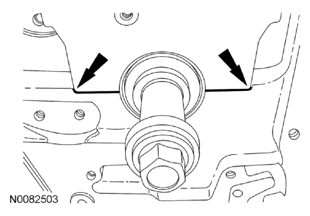

    Fig 29: Positioning Crankshaft Rear Main Oil Seal Using The Crankshaft Rear Main Oil Seal Installer

    Courtesy of FORD MOTOR CO.

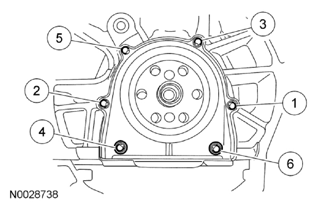

34. Tighten the 6 crankshaft rear main oil seal retainer plate bolts in the sequence shown in the illustration.
    • To install, tighten to 10 Nm (89 lb-in).
    Fig 30: Identifying Crankshaft Rear Oil Seal Retainer Plate Bolts Tightening Sequence

    Courtesy of FORD MOTOR CO.
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.
35. Clean and inspect all mating surfaces.
NOTE: If the oil pan is not secured within 4 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 4 minutes, whichever is longer. Failure to follow these instructions can cause future oil leakage.

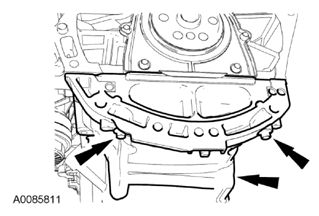

Fig 31: Locating Oil Pan Bolts
Courtesy of FORD MOTOR CO.
36. Apply a 2.5 mm (0.09 in) bead of silicone gasket and sealant to the oil pan.
    • Position the oil pan onto the engine and install the 2 rear oil pan bolts finger-tight.

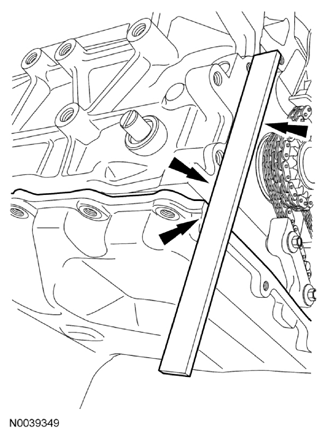

37. Using a suitable straight edge, align the front surface of the oil pan flush with the front surface of the engine block.
    Fig 32: Aligning Front Surface Of Oil Pan With Front Surface Of Engine Block Using Straight Edge

    Courtesy of FORD MOTOR CO.
38. Install the remaining oil pan bolts.
    • Tighten in the sequence shown in the illustration to 20 Nm (177 lb-in).

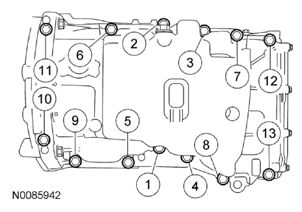

    Fig 33: Identifying Oil Pan Bolts Tightening Sequence

    Courtesy of FORD MOTOR CO.

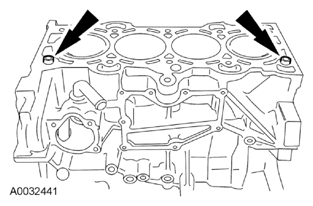

39. Install the 2 cylinder head alignment dowels. Dowels must be fully seated in the cylinder block.

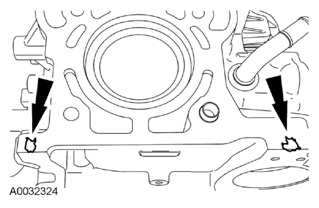

    Fig 34: Locating Cylinder Head Alignment Dowels

    Courtesy of FORD MOTOR CO.
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
NOTE: Observe all warnings and cautions and follow all application directions contained on the packaging of the silicone gasket remover and the metal surface prep.
NOTE: If there is no residual gasket material present, metal surface prep can be used to clean and prepare the surfaces.
40. Clean the cylinder head-to-cylinder block mating surface of both the cylinder head and the cylinder block in the following sequence.
    1. Remove any large deposits of silicone or gasket material with a plastic scraper.
    2. Apply silicone gasket remover, following package directions, and allow to set for several minutes.
    3. Remove the silicone gasket remover with a plastic scraper. A second application of silicone gasket remover may be required if residual traces of silicone or gasket material remain.
    4. Apply metal surface prep, following package directions, to remove any traces of oil or coolant, and to prepare the surfaces to bond with the new gasket. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.
41. Apply silicone gasket and sealant to the locations shown in the illustration.
    Fig 35: Locating Sealant Applying Area Of Cylinder Head-To-Cylinder Block Mating Surface

    Courtesy of FORD MOTOR CO.

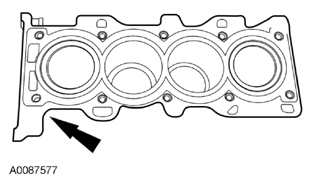

42. Install a new head gasket.
    Fig 36: Locating Head Gasket

    Courtesy of FORD MOTOR CO.
NOTE: The cylinder head bolts are a torque-to-yield design and must not be reused. New cylinder head bolts must be installed.
NOTE: Lubricate the bolts with clean engine oil prior to installation.

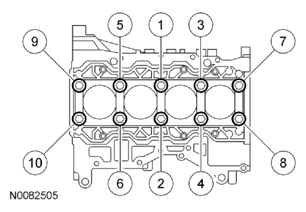

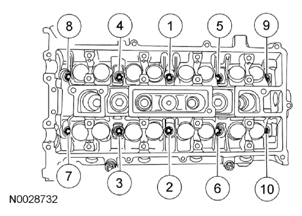

Fig 37: Identifying Cylinder Head Bolts Tightening Sequence
Courtesy of FORD MOTOR CO.
43. Install the cylinder head and 10 new bolts. Tighten the bolts in the sequence shown in the illustration in 5 stages:
    • Stage 1: Tighten to 7 Nm (62 lb-in).
    • Stage 2: Tighten to 15 Nm (133 lb-in).
    • Stage 3: Tighten to 45 Nm (33 lb-ft).
    • Stage 4: Turn 90 degrees.
    • Stage 5: Turn an additional 90 degrees.
NOTE: Coat the valve tappets with clean engine oil prior to installation.
44. Install the valve tappets.
NOTE: Install the camshafts with the alignment slots in the camshafts lined up so the Camshaft Alignment Plate can be installed without rotating the camshafts. Make sure the lobes on the No. 1 cylinder are in the same position as noted in the removal procedure. Rotating the camshafts when the timing chain is removed, or installing the camshafts 180 degrees out of position can cause severe damage to the valves and pistons.
NOTE: Lubricate the camshaft journals and bearing caps with clean engine oil.

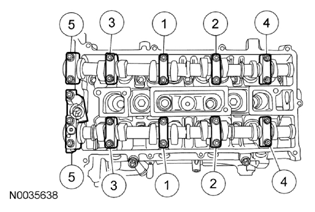

Fig 38: Identifying Camshaft Bearing Cap Bolts Tightening Sequence
Courtesy of FORD MOTOR CO.
45. Install the camshafts and bearing caps in their original locations and orientation. Tighten the bearing caps in the sequence shown in the illustration in 3 stages:
    • Stage 1: Tighten the camshaft bearing cap bolts until finger-tight.
    • Stage 2: Tighten to 7 Nm (62 lb-in).
    • Stage 3: Tighten to 16 Nm (142 lb-in).
46. Install the Variable Camshaft Timing (VCT) system oil filter and the plug in the intake camshaft thrust cap.
    • Tighten to 17 Nm (150 lb-in).
    Fig 39: Locating VCT System Oil Filter And Plug

    Courtesy of FORD MOTOR CO.
47. Install the Variable Camshaft Timing (VCT) solenoid and the bolt.
    • Tighten to 10 Nm (89 lb-in).

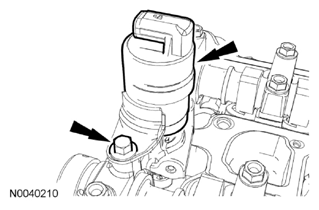

    Fig 40: Locating VCT Solenoid And Bolt

    Courtesy of FORD MOTOR CO.
NOTE: Install a new crankshaft sprocket diamond washer on both sides of the crankshaft sprocket.

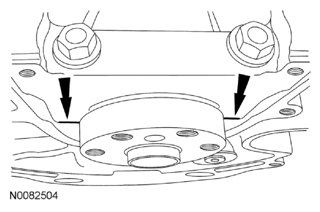

Fig 41: Locating Crankshaft Sprocket Flange
Courtesy of FORD MOTOR CO.
48. Install the crankshaft sprocket and new crankshaft sprocket diamond washers.
    • The crankshaft sprocket flange must be facing away from the engine block.
49. Install the oil pump drive chain, sprocket and bolt.
    • Tighten to 25 Nm (18 lb-ft).

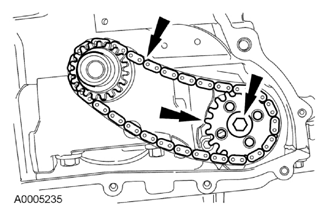

    Fig 42: Locating Oil Pump Drive Chain, Sprocket And Bolt

    Courtesy of FORD MOTOR CO.

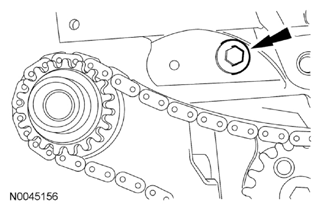

50. Install the oil pump drive chain tensioner shoulder bolt.
    • Tighten to 10 Nm (89 lb-in).
    Fig 43: Locating Oil Pump Drive Chain Tensioner Shoulder Bolt

    Courtesy of FORD MOTOR CO.

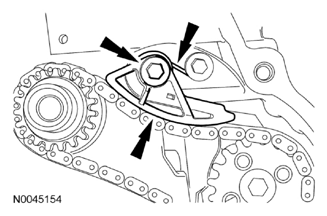

51. Install the oil pump drive chain tensioner and bolt. Hook the tensioner spring around the shoulder bolt.
    • Tighten to 10 Nm (89 lb-in).
    Fig 44: Locating Oil Pump Drive Chain Tensioner, Bolt And Tensioner Spring

    Courtesy of FORD MOTOR CO.
NOTE: The Camshaft Alignment Plate is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.
Fig 45: Identifying Camshaft Alignment Plate
Courtesy of FORD MOTOR CO.
52. Install the Camshaft Alignment Plate in the slots on the rear of both camshafts.
53. Install the camshaft sprockets and the bolts. Do not tighten the bolts at this time.

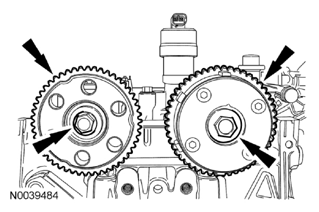

    Fig 46: Locating Camshaft Sprockets And Mounting Bolts

    Courtesy of FORD MOTOR CO.

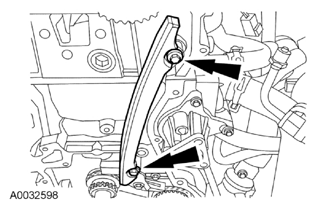

54. Install the timing chain guide and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
    Fig 47: Locating LH Timing Chain Guide Bolts

    Courtesy of FORD MOTOR CO.
55. Install the timing chain.

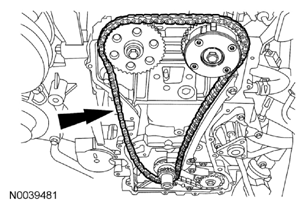

    Fig 48: Locating Timing Chain

    Courtesy of FORD MOTOR CO.
56. Install the timing chain tensioner arm.

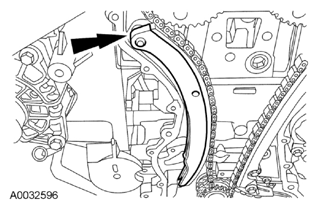

    Fig 49: Locating Timing Chain Tensioner Arm

    Courtesy of FORD MOTOR CO.
    NOTE: If the timing chain tensioner plunger and ratchet assembly are not pinned in the compressed position, follow the next 4 steps.
NOTE: Do not compress the ratchet assembly. This will damage the ratchet assembly.
Fig 50: Compressing Timing Chain Tensioner Plunger
Courtesy of FORD MOTOR CO.
57. Using the edge of a vise, compress the timing chain tensioner plunger.

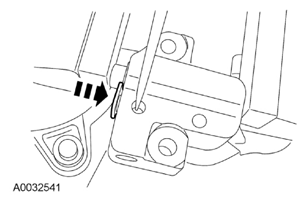

58. Using a small pick, push back and hold the ratchet mechanism.
    Fig 51: View Of Pushing Ratchet Mechanism Using A Small Pick

    Courtesy of FORD MOTOR CO.
59. While holding the ratchet mechanism, push the ratchet arm back into the tensioner housing.
    Fig 52: Pushing Ratchet Arm Into Tensioner Housing

    Courtesy of FORD MOTOR CO.
60. Install a paper clip into the hole in the tensioner housing to hold the ratchet assembly and the plunger in during installation.
    Fig 53: Holding Ratchet Assembly Using Paper Clip

    Courtesy of FORD MOTOR CO.
61. Install the timing chain tensioner and the 2 bolts. Remove the paper clip to release the piston.
    • Tighten to 10 Nm (89 lb-in).

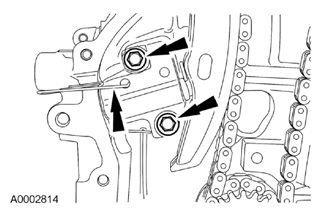

    Fig 54: Locating Timing Chain Tensioner Bolts

    Courtesy of FORD MOTOR CO.
NOTE: The Camshaft Alignment Plate is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.

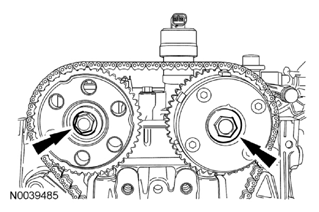

Fig 55: Locating Camshaft Sprocket Bolts
Courtesy of FORD MOTOR CO.
62. Using the flats on the camshafts to prevent camshaft rotation, tighten the camshaft sprocket bolts.
    • Tighten to 72 Nm (53 lb-ft).
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.
63. Clean and inspect the mounting surfaces of the engine and the front cover.
NOTE: The engine front cover must be installed and the bolts tightened within 4 minutes of applying the silicone gasket and sealant.

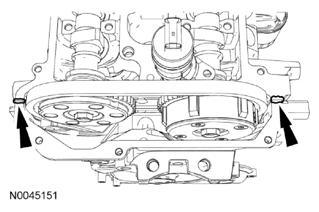

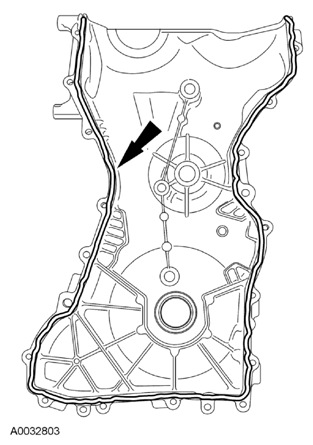

Fig 56: Locating Bead Of Silicone Gasket And Sealant On Front Cover
Courtesy of FORD MOTOR CO.
64. Apply a 2.5 mm (0.09 in) bead of silicone gasket and sealant to the cylinder head and oil pan joint areas. Apply a 2.5 mm (0.09 in) bead of silicone gasket and sealant to the front cover.
65. Install the engine front cover. Tighten the 22 bolts in the sequence shown in the illustration, to the following specifications:
    • Tighten the 8-mm bolts to 10 Nm (89 lb-in).
    • Tighten the 13-mm bolts to 48 Nm (35 lb-ft).

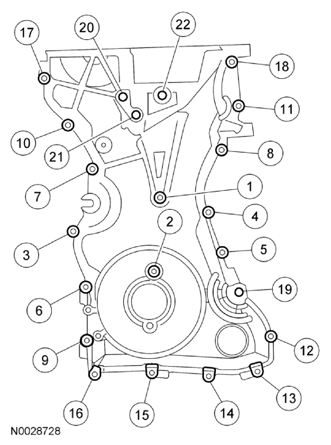

    Fig 57: Identifying Engine Front Cover Bolts Tightening Sequence

    Courtesy of FORD MOTOR CO.
NOTE: Remove the through bolt from the Camshaft Front Oil Seal Installer.
NOTE: Lubricate the oil seal with clean engine oil.

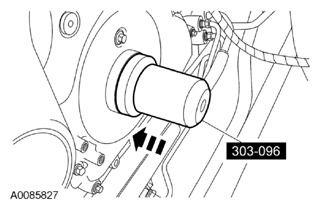

Fig 58: Installing Crankshaft Front Oil Seal Using Special Tool
Courtesy of FORD MOTOR CO.
66. Using the Camshaft Front Oil Seal Installer, install a new crankshaft front oil seal.
NOTE: Do not install the crankshaft pulley bolt at this time.
NOTE: Apply clean engine oil on the seal area before installing.

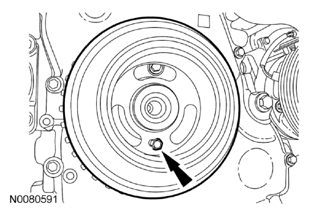

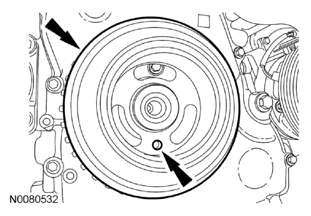

Fig 59: Locating Position Of Crankshaft Pulley Hole At The 6 O'clock Position
Courtesy of FORD MOTOR CO.
67. Position the crankshaft pulley onto the crankshaft with the hole in the pulley at the 6 o'clock position.
NOTE: Only hand-tighten the 6 mm bolt or damage to the front cover can occur.
NOTE: This step will correctly align the crankshaft pulley to the crankshaft.
Fig 60: Install Standard Bolt Through The Crankshaft Pulley Into The Front Cover
Courtesy of FORD MOTOR CO.
68. Install a standard 6 mm x 18 mm bolt through the crankshaft pulley and thread it into the front cover.
NOTE: The crankshaft must remain in the Top Dead Center (TDC) position during installation of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Crankshaft Damper Holding Tool and the bolt should be installed using hand tools only.
NOTE: Do not reuse the crankshaft pulley bolt.

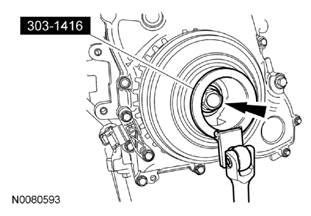

Fig 61: Holding Crankshaft Pulley Using Crankshaft Damper Holding Tool
Courtesy of FORD MOTOR CO.
69. Install a new crankshaft pulley bolt. Using the Crankshaft Damper Holding Tool to hold the crankshaft pulley in place, tighten the crankshaft pulley bolt in 2 stages:
    • Stage 1: Tighten to 100 Nm (74 lb-ft).
    • Stage 2: Tighten an additional 90 degrees (one-fourth turn).
70. Remove the 6 mm x 18 mm bolt.

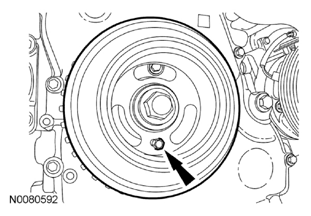

    Fig 62: Locating Crankshaft Pulley Bolt In Hole

    Courtesy of FORD MOTOR CO.
71. Remove the Crankshaft TDC Timing Peg.

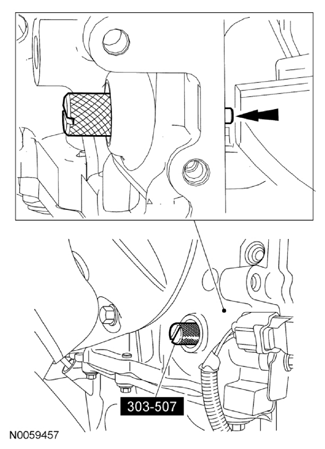

    Fig 63: Identifying Crankshaft TDC Timing Peg

    Courtesy of FORD MOTOR CO.
72. Remove the Camshaft Alignment Plate.

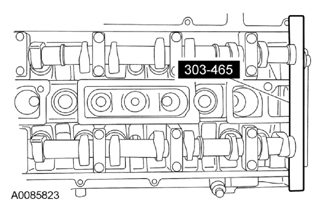

    Fig 64: Identifying Camshaft Alignment Plate

    Courtesy of FORD MOTOR CO.
NOTE: Only turn the engine in the normal direction of rotation.
73. Turn the crankshaft clockwise one and three-fourths turns.
74. Install the Crankshaft TDC Timing Peg.
    Fig 65: Identifying Crankshaft TDC Timing Peg

    Courtesy of FORD MOTOR CO.
NOTE: Only turn the engine in the normal direction of rotation.
Fig 66: Turning Crankshaft Clockwise
Courtesy of FORD MOTOR CO.
75. Turn the crankshaft clockwise until the crankshaft contacts the Crankshaft TDC Timing Peg.
NOTE: Only hand-tighten the bolt or damage to the front cover can occur.
Fig 67: Locating Crankshaft Pulley Bolt In Hole
Courtesy of FORD MOTOR CO.
76. Using the 6 mm x 18 mm bolt, check the position of the crankshaft pulley.
    • If it is not possible to install the bolt, the engine valve timing must be corrected.
77. Install the Camshaft Alignment Plate to check the position of the camshafts.
    • If it is not possible to install the Camshaft Alignment Plate, the engine valve timing must be corrected.
    Fig 68: Identifying Camshaft Alignment Plate

    Courtesy of FORD MOTOR CO.
78. Remove the Camshaft Alignment Plate.
    Fig 69: Identifying Camshaft Alignment Plate

    Courtesy of FORD MOTOR CO.
79. Install the Crankshaft Position (CKP) sensor and the 2 bolts.
    • Do not tighten the bolts at this time.

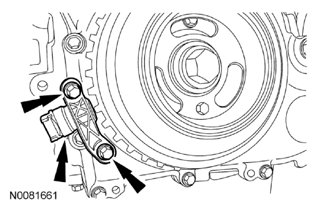

    Fig 70: Locating CKP Sensor And Bolts

    Courtesy of FORD MOTOR CO.
80. Using the Crankshaft Sensor Aligner, adjust the CKP sensor.
    • Tighten the 2 CKP bolts to 7 Nm (62 lb-in).
    Fig 71: Adjusting Crankshaft Sensor Using Crank Alignment Tool

    Courtesy of FORD MOTOR CO.
81. Remove the 6 mm x 18 mm bolt.
    Fig 72: Locating Crankshaft Pulley Bolt In Hole

    Courtesy of FORD MOTOR CO.
82. Remove the Crankshaft TDC Timing Peg.
    Fig 73: Identifying Crankshaft TDC Timing Peg

    Courtesy of FORD MOTOR CO.

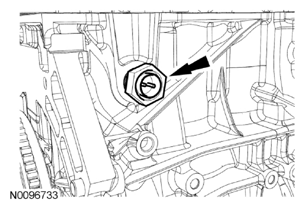

83. Install the engine plug bolt.
    • Tighten to 20 Nm (177 lb-in).

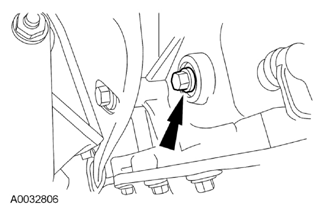

    Fig 74: Locating Engine Plug Bolt

    Courtesy of FORD MOTOR CO.
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.
84. Clean the valve cover gasket surface with metal surface prep.
NOTE: The valve cover must be secured within 4 minutes of silicone gasket application. If the valve cover is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned with metal surface prep.
Fig 75: Locating Silicone Gasket And Sealant Applying Locations Of Valve Covers
Courtesy of FORD MOTOR CO.
85. Apply silicone gasket and sealant to the locations shown in the illustration.

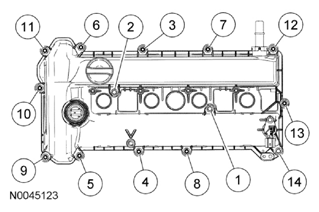

86. Install the valve cover.
    • Tighten the bolts in the sequence shown in the illustration to 10 Nm (89 lb-in).
    Fig 76: Identifying Valve Cover Bolts Tightening Sequence

    Courtesy of FORD MOTOR CO.
NOTE: Apply dielectric compound to the inside of the coil-on-plug boots.

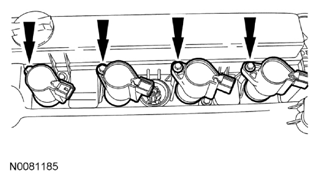

Fig 77: Locating Ignition Coil-On-Plug Bolts
Courtesy of FORD MOTOR CO.
87. Install the 4 coil-on-plugs and the 4 bolts.
    • Tighten to 8 Nm (71 lb-in).
NOTE: Make sure the notch on the oil level indicator is aligned with the V-shaped boss on the valve cover and fully engaged into the valve cover.
Fig 78: Locating Oil Level Indicator
Courtesy of FORD MOTOR CO.
88. Install the oil level indicator.
89. If equipped, install the block heater.
    • Tighten to 40 Nm (30 lb-ft).

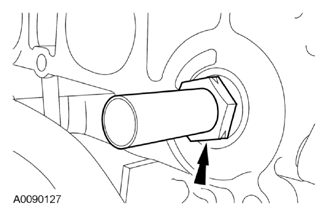

    Fig 79: Locating Block Heater

    Courtesy of FORD MOTOR CO.
90. Install the crankcase vent oil separator and the 8 bolts.
    • Tighten to 10 Nm (89 lb-in).
    Fig 80: Locating Crankcase Vent Oil Separator With Bolts

    Courtesy of FORD MOTOR CO.
NOTE: The Knock Sensor (KS) must not touch the crankcase vent oil separator.

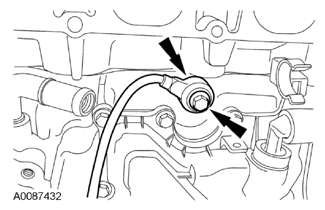

Fig 81: Locating KS With Mounting Bolt
Courtesy of FORD MOTOR CO.
91. Install the KS and the bolt.
    • Tighten to 20 Nm (177 lb-in).
92. Install the coolant bypass hose on the coolant outlet.

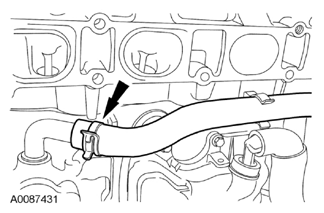

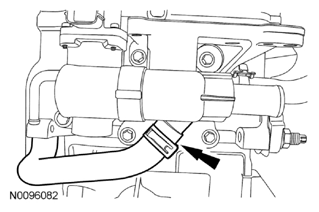

    Fig 82: Locating Coolant Outlet Bypass Hose

    Courtesy of FORD MOTOR CO.
93. Connect the coolant bypass hose.
    Fig 83: Locating Coolant Bypass Hose

    Courtesy of FORD MOTOR CO.
94. Install the EGR tube.
    • Tighten to 55 Nm (41 lb-ft).
    Fig 84: Locating Exhaust Gas Recirculation Tube

    Courtesy of FORD MOTOR CO.
NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.
Fig 85: Locating Crankcase Vent Oil Separator Tube Tab
Courtesy of FORD MOTOR CO.
95. Position the intake manifold and connect the crankcase vent oil separator tube.
NOTE: Inspect and install new intake manifold gaskets, if necessary.

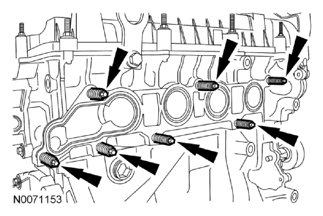

Fig 86: Locating Intake Manifold Bolts
Courtesy of FORD MOTOR CO.
96. Install the intake manifold gaskets, intake manifold and the 7 bolts (3 shown in the illustration).
    • Tighten to 18 Nm (159 lb-in).
NOTE: Use O-ring seals that are made of special fuel-resistant material. Use of ordinary O-rings can cause the fuel system to leak. Do not reuse the O-ring seals.
Fig 87: Locating Fuel Injector O-Rings
Courtesy of FORD MOTOR CO.
97. Install new fuel injector O-rings.
    • Separate the fuel injectors from the fuel rail.
    • Remove and discard the fuel injector O-rings.
    • Install new O-rings and lubricate with clean engine oil.
    • Install the fuel injectors onto the fuel rail.
98. Install the fuel rail and injector assembly and the 2 stud bolts.
    • Tighten to 23 Nm (17 lb-ft).

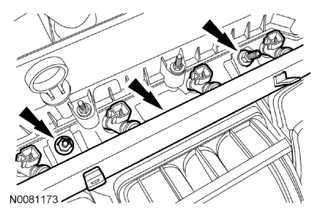

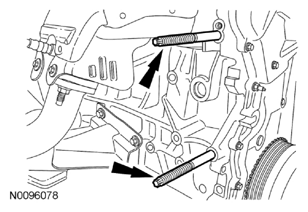

    Fig 88: Locating Fuel Rail And Injector Assembly With Stud Bolts

    Courtesy of FORD MOTOR CO.
99. Install the radio capacitor and nut.
    • Tighten to 10 Nm (89 lb-in).
    Fig 89: Locating Nut And Radio Capacitor

    Courtesy of FORD MOTOR CO.
100. Install the fuel rail insulator.

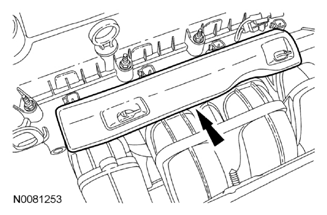

     Fig 90: Locating Fuel Rail Insulator

     Courtesy of FORD MOTOR CO.
101. Position the engine control wiring harness on the engine and connect the CHT sensor and install the rubber boot.

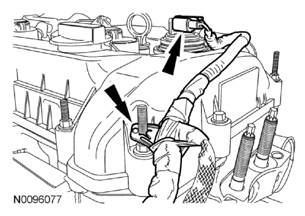

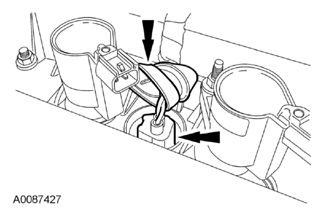

     Fig 91: Locating Rubber Boot And Cylinder Head Temperature Sensor Electrical Connector

     Courtesy of FORD MOTOR CO.

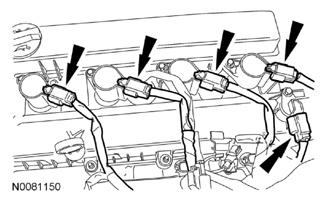

102. Connect the 4 ignition coil-on-plugs and Camshaft Position (CMP) sensor electrical connectors.
     Fig 92: Locating Ignition Coil-On-Plugs And Camshaft Position Sensor Electrical Connectors

     Courtesy of FORD MOTOR CO.

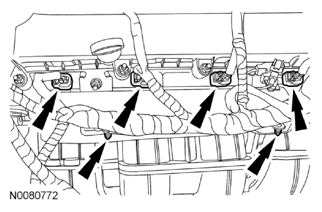

103. Connect the 4 fuel injector electrical connectors.
     • Attach the 2 wiring harness retainers.
     Fig 93: Locating Fuel Injector Electrical Connectors

     Courtesy of FORD MOTOR CO.
104. Connect the radio capacitor electrical connector.
     Fig 94: Locating Radio Capacitor Electrical Connector

     Courtesy of FORD MOTOR CO.
105. Connect the EGR valve electrical connector.

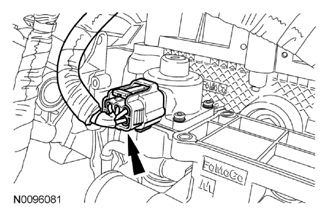

     Fig 95: Locating EGR Valve Electrical Connector

     Courtesy of FORD MOTOR CO.
106. Attach the 2 wiring harness retainers to the intake manifold.
     Fig 96: Locating Intake Manifold Wiring Harness Retainers

     Courtesy of FORD MOTOR CO.

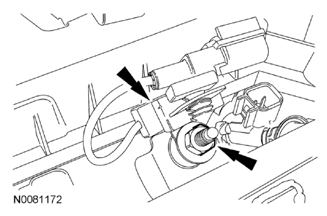

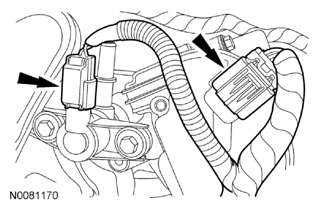

107. Connect the electronic throttle control and Evaporative Emission (EVAP) canister purge valve electrical connectors.
     Fig 97: Locating Electronic Throttle Control And Evaporative Emission Canister Purge Valve Electrical Connectors

     Courtesy of FORD MOTOR CO.

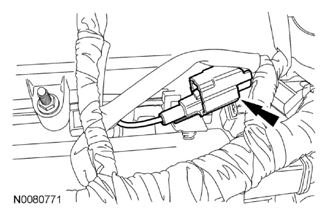

108. Connect the Manifold Absolute Pressure (MAP) sensor electrical connector.

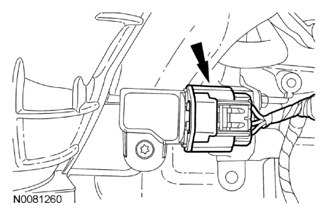

     Fig 98: Locating Manifold Absolute Pressure Sensor Electrical Connector

     Courtesy of FORD MOTOR CO.
109. Using a new gasket install the oil filter adapter and the 4 bolts.
     • Tighten to 25 Nm (18 lb-ft).
     Fig 99: Locating Bolts And Oil Filter Adapter

     Courtesy of FORD MOTOR CO.
110. Connect the Engine Oil Pressure (EOP) switch electrical connector.

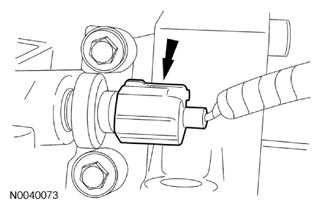

     Fig 100: Locating Engine Oil Pressure Switch Electrical Connector

     Courtesy of FORD MOTOR CO.
111. Install the A/C compressor and the 3 bolts.
     • Tighten to 25 Nm (18 lb-ft).

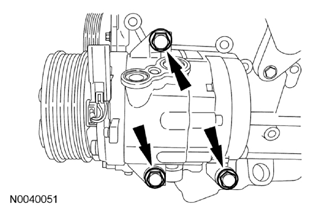

     Fig 101: Locating A/C Compressor Bolts

     Courtesy of FORD MOTOR CO.
112. Using new O-ring seals, install the A/C manifold tube and the bolt.
     • Tighten to 25 Nm (18 lb-ft).

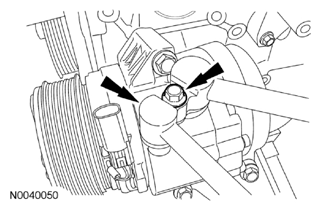

     Fig 102: Locating A/C Manifold Tube And Bolt

     Courtesy of FORD MOTOR CO.
113. Install 7 new cylinder head studs.
     • Tighten to 17 Nm (150 lb-in).
114. Install the new exhaust manifold gasket on the engine.
     Fig 103: Locating Cylinder Head Studs

     Courtesy of FORD MOTOR CO.
NOTE: Failure to tighten the exhaust manifold nuts to specification a second time will cause the exhaust manifold to develop an exhaust leak.
NOTE: Make sure to tighten the nuts in the sequence in 2 stages.

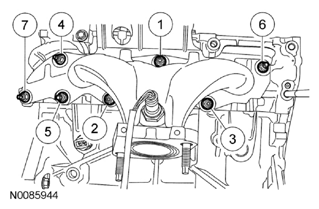

Fig 104: Identifying Exhaust Manifold Nuts Tightening Sequence
Courtesy of FORD MOTOR CO.
115. Position the exhaust manifold and tighten the 7 new exhaust manifold nuts in the sequence shown in the illustration in 2 stages:
     • Stage 1: Tighten to 48 Nm (35 lb-ft).
     • Stage 2: Tighten to 48 Nm (35 lb-ft).
116. Install the exhaust manifold heat shield and the 4 bolts.
     • Tighten to 10 Nm (89 lb-in).
     Fig 105: Locating Exhaust Manifold Heat Shield Bolts And Heat Shield

     Courtesy of FORD MOTOR CO.
117. Install the exhaust flexible pipe bracket and the 2 bolts.
     • Tighten to 35 Nm (26 lb-ft).
     Fig 106: Locating Exhaust Flexible Pipe Bracket With Mounting Bolts

     Courtesy of FORD MOTOR CO.
118. Install the 2 generator studs.
     • Tighten to 24 Nm (18 lb-ft).
     Fig 107: Locating Generator Studs

     Courtesy of FORD MOTOR CO.
119. Install the generator, 2 nuts and 1 bolt.
     • Tighten to 47 Nm (35 lb-ft).
     Fig 108: Locating Generator With Nuts And Bolts

     Courtesy of FORD MOTOR CO.
120. Connect the Variable Camshaft Timing (VCT) electrical connector and attach the wiring harness retainer to the valve cover stud bolt.
     Fig 109: Locating Variable Camshaft Timing (VCT) Electrical Connector

     Courtesy of FORD MOTOR CO.

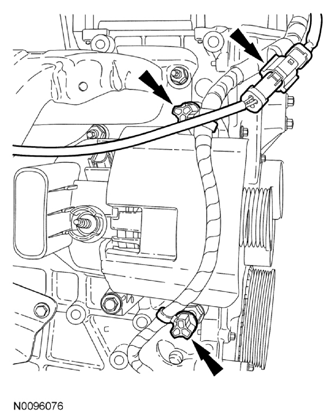

121. Connect the Heated Oxygen Sensor (HO2S) electrical connector and attach the 2 wiring harness retainers to the generator stud bolts.
     Fig 110: Locating Heated Oxygen Sensor (HO2S) Electrical Connector And Wiring Harness Retainers

     Courtesy of FORD MOTOR CO.
122. Connect the CKP sensor electrical connector and attach the wiring harness pin-type retainer.

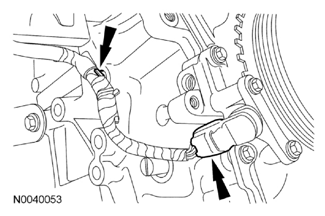

     Fig 111: Locating Crankshaft Position (CKP) Sensor Electrical Connector And Wiring Harness Pin-Type Retainer

     Courtesy of FORD MOTOR CO.
123. Install the thermostat housing and the 3 bolts.
     • Tighten to 10 Nm (89 lb-in).

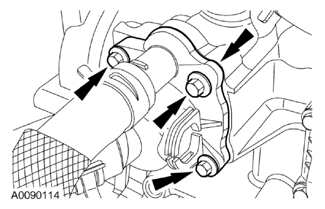

     Fig 112: Locating Thermostat Housing With Mounting Bolts

     Courtesy of FORD MOTOR CO.
124. Install the coolant tube retainer to the intake manifold.

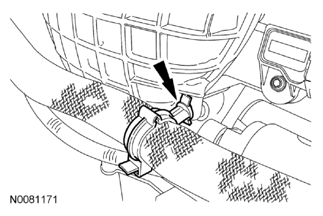

     Fig 113: Locating Coolant Tube Retainer

     Courtesy of FORD MOTOR CO.
125. Connect the coolant hose to the EGR.
     Fig 114: Locating Coolant Hose From EGR Valve

     Courtesy of FORD MOTOR CO.
126. Install the accessory drive belt idler pulley and bracket and the 2 bolts.
     • Tighten to 25 Nm (18 lb-ft).
     Fig 115: Locating Accessory Drive Belt Idler Pulley Bracket With Bolts

     Courtesy of FORD MOTOR CO.

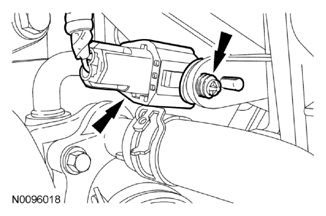

127. Connect the KS electrical connector and attach the wiring harness pin-type retainer.
     Fig 116: Locating KS Electrical Connector And Wiring Harness Pin-Type Retainer

     Courtesy of FORD MOTOR CO.
NOTE: Make sure the coolant pump is correctly seated to the engine block before installing and tightening the fasteners, or damage to the coolant pump may occur.
NOTE: Clean the coolant pump mating surface with metal surface prep.
NOTE: Lubricate the new coolant pump O-ring with clean engine coolant.

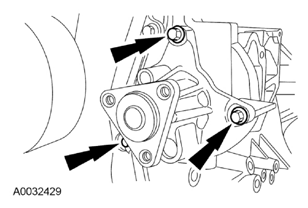

Fig 117: Locating Coolant Pump Bolts
Courtesy of FORD MOTOR CO.
128. Install the new O-ring, coolant pump and the 3 bolts.
     • Tighten to 10 Nm (89 lb-in).
129. Install the coolant pump pulley and the 3 bolts.
     • Tighten to 20 Nm (177 lb-in).
     Fig 118: Locating Coolant Pump Pulley Bolts

     Courtesy of FORD MOTOR CO.

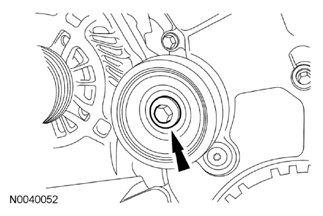

130. Install the accessory drive belt idler pulley.
     • Tighten to 25 Nm (18 lb-ft).
     Fig 119: Locating Accessory Drive Belt Idler Pulley Bolt

     Courtesy of FORD MOTOR CO.
131. Install the accessory drive belt tensioner and the 2 bolts.
     • Tighten to 25 Nm (18 lb-ft).
     Fig 120: Locating Tensioner Bolts

     Courtesy of FORD MOTOR CO.
132. Position the accessory drive belt onto the tensioner and all of the accessory drive pulleys except the coolant pump pulley.
133. Using the hex feature, rotate the accessory drive belt tensioner clockwise and install the accessory drive belt onto the coolant pump pulley.
     Fig 121: Rotating Accessory Drive Belt Tensioner Clockwise Using The Hex Feature

     Courtesy of FORD MOTOR CO.

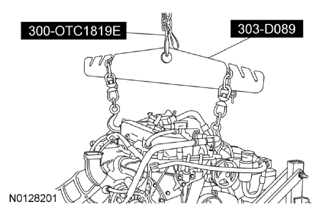

134. Using the Floor Crane and Spreader Bar, remove the engine from the engine stand.
     Fig 122: Remove/Install Engine And Transaxle From Powertrain Lift Table Using Floor Crane And Spreader Bar

     Courtesy of FORD MOTOR CO.

     Vehicles with automatic transaxle

135. Install the flexplate and the 6 bolts. Tighten the 6 bolts in the sequence shown in the illustration in 3 stages:
     • Stage 1: Tighten to 50 Nm (37 lb-ft).
     • Stage 2: Tighten to 80 Nm (59 lb-ft).
     • Stage 3: Tighten to 112 Nm (83 lb-ft).

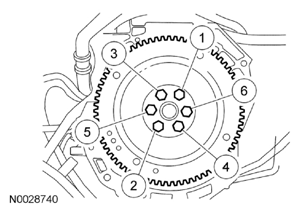

     Fig 123: Flexplate Bolts Tightening Sequence (Vehicles With Automatic Transaxle)

     Courtesy of FORD MOTOR CO.

     Vehicles with manual transaxle

136. Install the flywheel and the 6 bolts. Tighten the 6 bolts in the sequence shown in the illustration in 3 stages:
     • Stage 1: Tighten to 50 Nm (37 lb-ft).
     • Stage 2: Tighten to 80 Nm (59 lb-ft).
     • Stage 3: Tighten to 112 Nm (83 lb-ft).

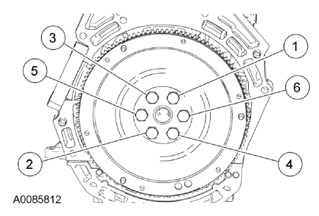

     Fig 124: Identifying Flexplate Bolts Tightening Sequence

     Courtesy of FORD MOTOR CO.
137. Lubricate the transaxle input shaft pilot bearing with front axle grease.
     Fig 125: Locating Transaxle Input Shaft Pilot Bearing

     Courtesy of FORD MOTOR CO.

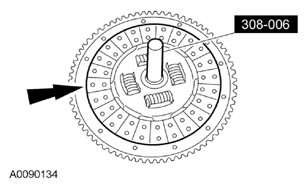

138. Using the Clutch Disc Aligner, position the clutch disc on the flywheel.
     Fig 126: Positioning Clutch Disc On Flywheel Using Clutch Disc Aligner

     Courtesy of FORD MOTOR CO.
NOTE: If reusing the clutch pressure plate and flywheel, align the marks made during removal.
139. Position the clutch pressure plate and install the 6 bolts.
     • Tighten to 29 Nm (21 lb-ft) in a star pattern sequence.
