Sunshade Switch Connector - C9041

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

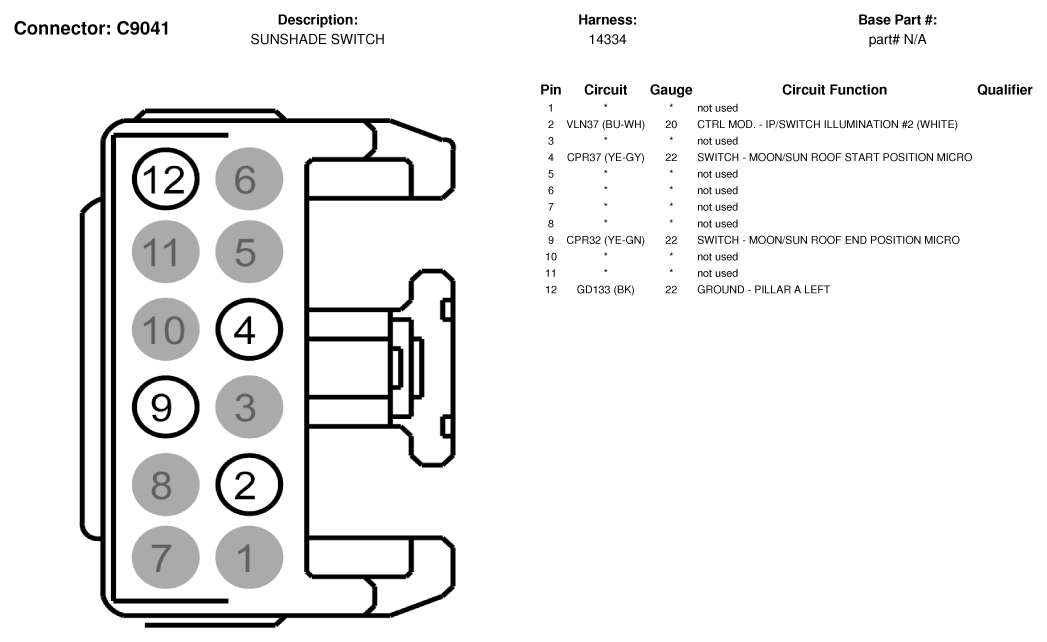

Fig 1: Sunshade Switch Connector End View (C9041)
G07336446Courtesy of FORD MOTOR CO.
