Right Front Fog Lamp Connector - C162

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

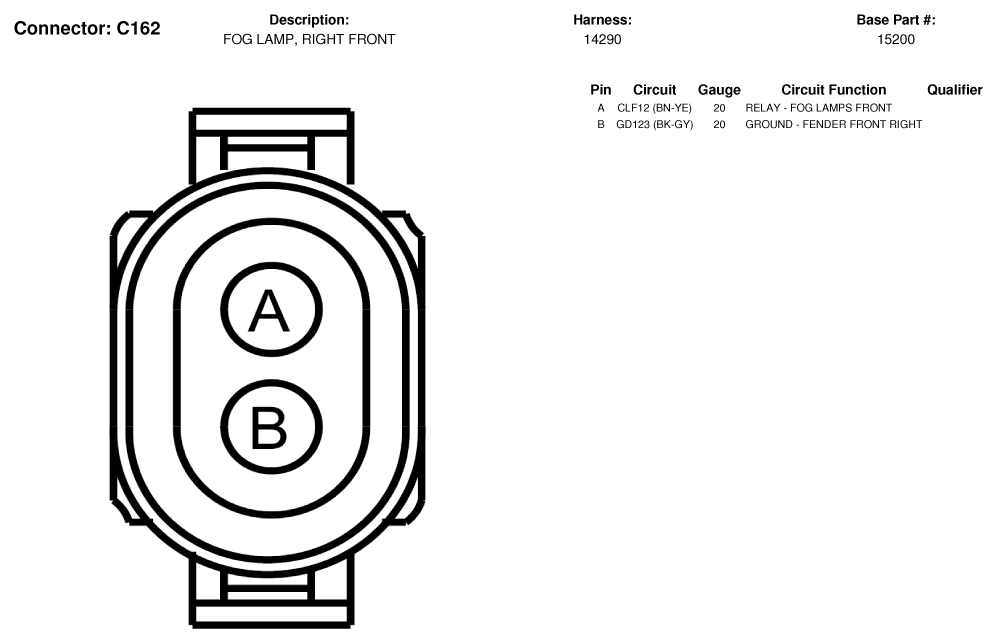

Fig 1: Right Front Fog Lamp Connector End View (C162)
G07335997Courtesy of FORD MOTOR CO.
