Instrument Panel Dimmer Switch Connector - C2065

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

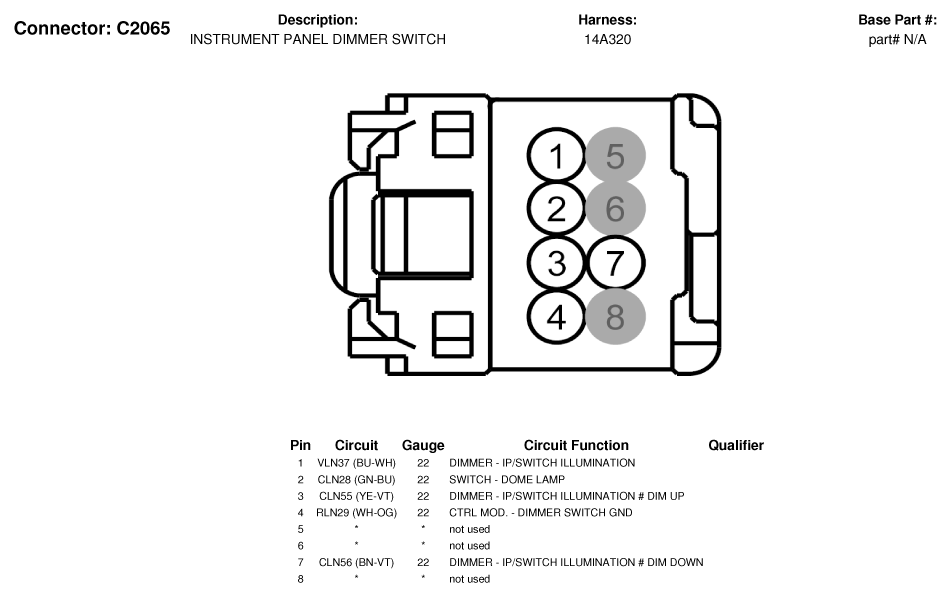

Fig 1: Instrument Panel Dimmer Switch Connector End View (C2065)
G07336242Courtesy of FORD MOTOR CO.
