Driver Seat Front Height Motor Connector - C382

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

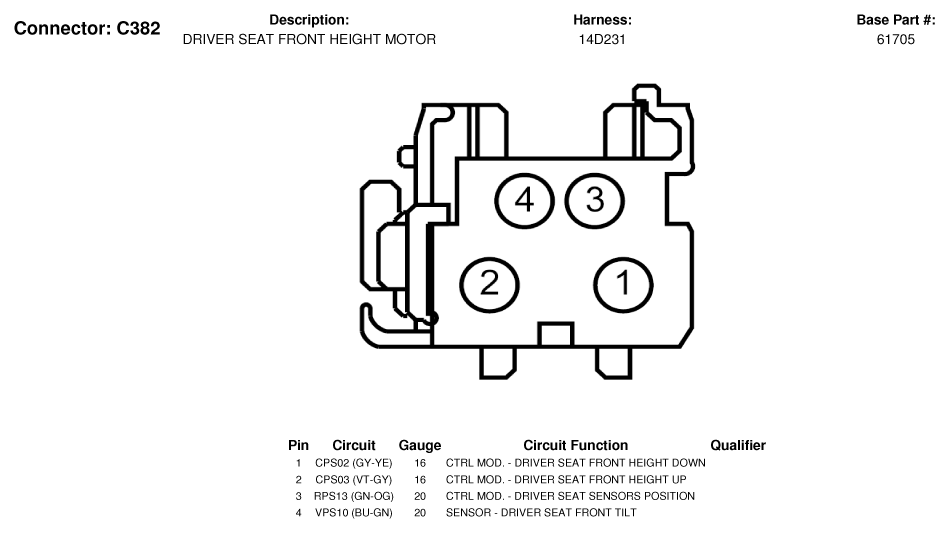

Fig 1: Driver Seat Front Height Motor Connector End View (C382)
G07336107Courtesy of FORD MOTOR CO.
