Blower Motor Connector - C2004

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

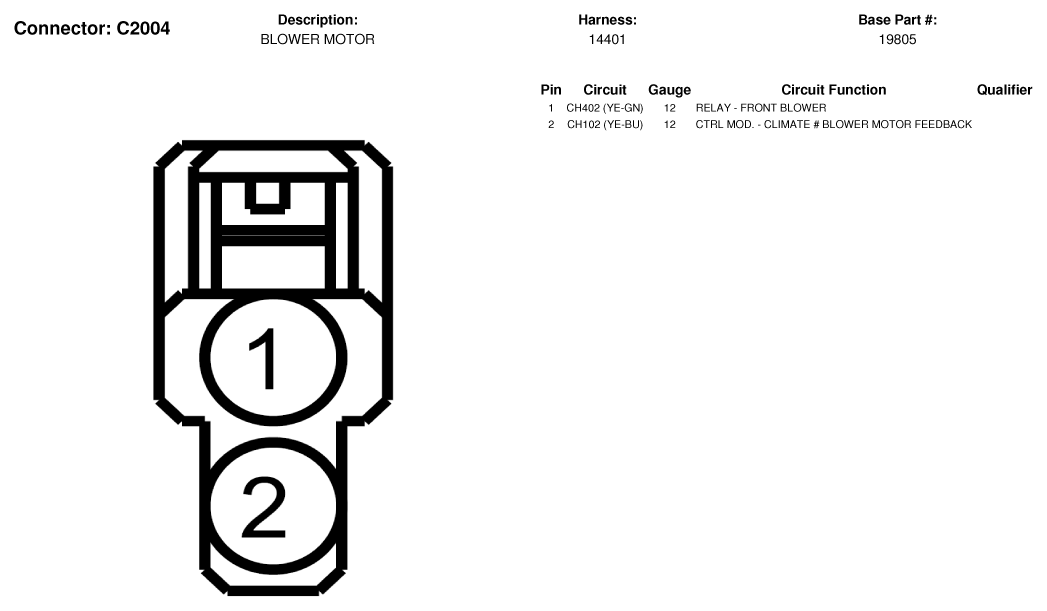

Fig 1: Blower Motor Connector End View (C2004)
G07336240Courtesy of FORD MOTOR CO.
