Pinpoint Test L: DTC B2295 - Restraint System - Side Airbag Fault

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Remove restraint system diagnostic tools from the vehicle prior to road testing. If tools are not removed, the supplemental restraint system (SRS) device may not deploy in a crash. Failure to follow this instruction may result in serious personal injury or death in a crash and possibly violate vehicle safety standards.
WARNING: Never probe the electrical connectors on air bag, safety canopy or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.
WARNING: Never probe the electrical connectors on safety belt buckle/retractor pretensioners or adaptive load limiting retractors. Failure to follow this instruction may result in the accidental deployment of the safety belt pretensioners or adaptive load limiting retractors, which increases the risk of serious personal injury or death.
WARNING: Always wear eye protection when servicing a vehicle. Failure to follow this instruction may result in serious personal injury.
NOTE: Use the correct probe adapter(s) when taking measurements. Failure to use the correct probe adapter(s) may damage the connector.
NOTE: The supplemental restraint system (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE: SRS components should only be disconnected or reconnected when instructed to do so within a pinpoint test step. Failure to follow this instruction may result in incorrect diagnosis of the SRS.
NOTE: Most faults are due to connector and/or wiring concerns. Carry out a thorough inspection and verification before proceeding with the pinpoint test.
  1. L1 CHECK FOR ON-DEMAND AND CONTINUOUS DTCs
    • Enter the following diagnostic mode on the diagnostic tool: Self Test/ RCM/ Retrieve and Record On-Demand and Continuous Memory DTCs
    • Enter the following diagnostic mode on the diagnostic tool: DataLogger/ RCM/ View and Record All B2295 Fault PIDs
      • Refer to PID list in Normal Operation to view B2295 fault PIDs.
    • Do any on-demand B2295 fault PIDs indicate a fault?
    1. YES  : This is a hard fault. The fault condition is still present. This fault cannot be cleared until it is corrected and the DTC is no longer retrieved during the on-demand self test. Go to  L2.
    2. NO  : This is an intermittent fault when present as a continuous memory DTC only (DTC not retrieved on demand). The fault condition is not present at this time. Go to  L16.
  2. L2 CHECK THE DRIVER AND PASSENGER SEAT SIDE AIR BAG MODULES
    • Key in OFF position.
    • Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering .
    • If the fault PID was reported for the driver seat side air bag module:
      • Disconnect driver seat side air bag module C315.
      • Connect restraint system diagnostic tool 418-133 to driver seat side air bag module C315.
    • If the fault PID was reported for the passenger seat side air bag module:
      • Disconnect passenger seat side air bag module C316.
      • Connect restraint system diagnostic tool 418-133 to passenger seat side air bag module C316.
    • Repower the SRS. Do not  prove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering .
    • Enter the following diagnostic mode on the diagnostic tool: Self Test/ RCM/ Retrieve and Record On-Demand and Continuous Memory DTCs
    • Enter the following diagnostic mode on the diagnostic tool: DataLogger/ RCM/ View and Record All B2295 Fault PIDs
      • Refer to PID list in Normal Operation to view B2295 fault PIDs.
    • Do any on-demand B2295 fault PIDs indicate a fault?
    1. YES  : Using the fault PIDs recorded in Step L1, go to the appropriate pinpoint test step.

      For 2295_31_OD (Side Air Bag Circuit Short to Battery, Front Driver Side) (LFC 9-5), go to  L3.

      For 2295_30_OD (Side Air Bag Circuit Short to Ground, Front Driver Side) (LFC 9-1), go to  L4.

      For 2295_29_OD (Side Air Bag Circuit Open, Front Driver Side) (LFC 2-2), go to  L5.

      For 2295_28_OD (Side Air Bag Circuit Resistance Low, Front Driver Side) (LFC 9-9), go to  L7.

      For 2295_27_OD (Side Air Bag Circuit Short to Battery, Front Passenger Side) (LFC 9-6), go to  L9.

      For 2295_26_OD (Side Air Bag Circuit Short to Ground, Front Passenger Side) (LFC 9-2), go to  L10.

      For 2295_25_OD (Side Air Bag Circuit Open, Front Passenger Side) (LFC 2-3), go to  L11.

      For 2295_24_OD (Side Air Bag Circuit Resistance Low, Front Passenger Side) (LFC 9-10), go to  L13.

    2. NO  : REMOVE and INSPECT the seat side air bag module jumper harness for damage. If a concern is found REPAIR or INSTALL a new harness. Go to  L17. If a fault PID was against the driver seat side air bag module in Step L1, INSTALL a new driver seat side air bag module. REFER to Side Air Bag Module . Go to  L17.

      If a fault PID was against the passenger seat side air bag module in Step L1, INSTALL a new passenger seat side air bag module. REFER to Side Air Bag Module . Go to  L17.

  3. L3 CHECK CIRCUITS 1257 (WH/LB) AND 1258 (RD) FOR A SHORT TO VOLTAGE BETWEEN THE RCM AND DRIVER SEAT SIDE AIR BAG MODULE
    • Key in OFF position.
    • Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering .
    • Disconnect: Driver Seat Side Air Bag Module Restraint System Diagnostic Tool
    • Disconnect: RCM C310a and C310b
    • Repower the SRS. Do not  prove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering .
    • Key in ON position.
      • Fig 1: Measuring Voltage
      GF0000125Courtesy of FORD MOTOR CO.
    • Measure the voltage between driver seat side air bag module C315-1, circuit 1257 (WH/LB), harness side and ground; and between driver seat side air bag module C315-2, circuit 1258 (RD), harness side and ground.
    • Is any voltage present?
    1. YES  : Due to the shorting bar feature in the electrical connector, the fault can exist in either circuit. Do not remove or defeat the shorting bars.

      REPAIR circuit 1257 (WH/LB) or 1258 (RD). Go to  L17.

    2. NO  : Go to  L15.
  4. L4 CHECK CIRCUITS 1257 (WH/LB) AND 1258 (RD) FOR A SHORT TO GROUND BETWEEN THE RCM AND DRIVER SEAT SIDE AIR BAG MODULE
    • Key in OFF position.
    • Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering .
    • Disconnect: Driver Seat Side Air Bag Module Restraint System Diagnostic Tool
    • Disconnect: RCM C310a and C310b
      • Fig 2: Measuring Resistance
      GF0013350Courtesy of FORD MOTOR CO.
    • Measure the resistance between RCM C310b-1, circuit 1257 (WH/LB), harness side and ground; and between RCM C310b-2, circuit 1258 (RD), harness side and ground.
    • Are the resistances greater than 10,000 ohms?
    1. YES  : Go to  L15.
    2. NO  : Due to the shorting bar feature in the electrical connector, the fault can exist in either circuit. Do not remove or defeat the shorting bars.

      REPAIR circuit 1257 (WH/LB) or 1258 (RD). Go to  L17.

  5. L5 CHECK CIRCUIT 1257 (WH/LB) FOR AN OPEN BETWEEN THE RCM AND DRIVER SEAT SIDE AIR BAG MODULE
    • Key in OFF position.
    • Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering .
    • Disconnect: Driver Seat Side Air Bag Module Restraint System Diagnostic Tool
    • Disconnect: RCM C310a and C310b
      • Fig 3: Measuring Resistance
      GF0013351Courtesy of FORD MOTOR CO.
    • Measure the resistance between RCM C310b-1, circuit 1257 (WH/LB), harness side and driver seat side air bag module C315-1, circuit 1257 (WH/LB), harness side.
    • Is the resistance less than 0.5 ohm?
    1. YES  : Go to  L6.
    2. NO  : REPAIR circuit 1257 (WH/LB). Go to  L17.
  6. L6 CHECK CIRCUIT 1258 (RD) FOR AN OPEN BETWEEN THE RCM AND DRIVER SEAT SIDE AIR BAG MODULE
      Fig 4: Measuring Resistance
      GF0013352Courtesy of FORD MOTOR CO.
    • Measure the resistance between RCM C310b-2, circuit 1258 (RD), harness side and driver seat side air bag module C315-2, circuit 1258 (RD), harness side.
    • Is the resistance less than 0.5 ohm?
    1. YES  : Go to  L15.
    2. NO  : REPAIR circuit 1258 (RD). Go to  L17.
  7. L7 CHECK FOR A SHORT BETWEEN DRIVER SEAT SIDE AIR BAG MODULE CIRCUITS 1257 (WH/LB) AND 1258 (RD)
    • Key in OFF position.
    • Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering .
    • Disconnect: Driver Seat Side Air Bag Module Restraint System Diagnostic Tool
    • Measure the resistance between driver seat side air bag module C315-1, circuit 1257 (WH/LB), harness side and C315-2, circuit 1258 (RD), harness side.
    • Is the resistance less than 800 ohms?
    1. YES  : Go to  L8.
    2. NO  : Go to  L15.
  8. L8 CHECK THE RCM FOR LOW RESISTANCE
    • Disconnect: RCM C310a and C310b

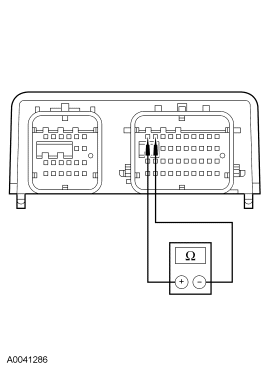

      • Fig 5: Measuring Resistance
      GF0013353Courtesy of FORD MOTOR CO.
    • Measure the resistance between RCM C310b pin 1, component side and pin 2, component side.
    • Is the resistance less than 800 ohms?
    1. YES  : Go to  L15.
    2. NO  : REPAIR circuits 1257 (WH/LB) and 1258 (RD). Go to  L17.
  9. L9 CHECK CIRCUITS 1259 (WH/YE) AND 1260 (BN/YE) FOR A SHORT TO VOLTAGE BETWEEN THE RCM AND PASSENGER SEAT SIDE AIR BAG MODULE
    • Key in OFF position.
    • Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering .
    • Disconnect: Passenger Seat Side Air Bag Module Restraint System Diagnostic Tool
    • Disconnect: RCM C310a and C310b
    • Repower the SRS. Do not  prove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering .
    • Key in ON position.
      • Fig 6: Measuring Voltage
      GF0000125Courtesy of FORD MOTOR CO.
    • Measure the voltage between passenger seat side air bag module C316-1, circuit 1259 (WH/YE), harness side and ground; and between passenger seat side air bag module C316-2, circuit 1260 (BN/YE), harness side and ground.
    • Is any voltage present?
    1. YES  : Due to the shorting bar feature in the electrical connector, the fault can exist in either circuit. Do not remove or defeat the shorting bars.

      REPAIR circuit 1259 (WH/YE) or circuit 1260 (BN/YE). Go to  L17.

    2. NO  : Go to  L15.
  10. L10 CHECK CIRCUITS 1259 (WH/YE) AND 1260 (BN/YE) FOR A SHORT TO GROUND BETWEEN THE RCM AND PASSENGER SEAT SIDE AIR BAG MODULE
    • Key in OFF position.
    • Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering .
    • Disconnect: Passenger Seat Side Air Bag Module Restraint System Diagnostic Tool
    • Disconnect: RCM C310a and C310b
      • Fig 7: Measuring Resistance
      GF0013354Courtesy of FORD MOTOR CO.
    • Measure the resistance between RCM C310b-21, circuit 1259 (WH/YE), harness side and ground; and between RCM C310b-22, circuit 1260 (BN/YE), harness side and ground.
    • Are the resistances greater than 10,000 ohms?
    1. YES  : Go to  L15.
    2. NO  : Due to the shorting bar feature in the electrical connector, the fault can exist in either circuit. Do not remove or defeat the shorting bars.

      REPAIR circuit 1259 (WH/YE) or circuit 1260 (BN/YE). Go to  L17.

  11. L11 CHECK CIRCUIT 1259 (WH/YE) FOR AN OPEN BETWEEN THE RCM AND PASSENGER SEAT SIDE AIR BAG MODULE
    • Key in OFF position.
    • Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering .
    • Disconnect: Passenger Seat Side Air Bag Module Restraint System Diagnostic Tool
    • Disconnect: RCM C310a and C310b
      • Fig 8: Measuring Resistance
      GF0013355Courtesy of FORD MOTOR CO.
    • Measure the resistance between RCM C310b-21, circuit 1259 (WH/YE), harness side and passenger seat side air bag module C316-1, circuit 1259 (WH/YE), harness side.
    • Is the resistance less than 0.5 ohm?
    1. YES  : Go to  L12.
    2. NO  : REPAIR circuit 1259 (WH/YE). Go to  L17.
  12. L12 CHECK CIRCUIT 1260 (BN/YE) FOR AN OPEN BETWEEN THE RCM AND PASSENGER SEAT SIDE AIR BAG MODULE
      Fig 9: Measuring Resistance
      GF0013356Courtesy of FORD MOTOR CO.
    • Measure the resistance between RCM C310b-22, circuit 1260 (BN/YE), harness side and passenger seat side air bag module C316-2, circuit 1260 (BN/YE), harness side.
    • Is the resistance less than 0.5 ohm?
    1. YES  : Go to  L15.
    2. NO  : REPAIR circuit 1260 (BN/YE). Go to  L17.
  13. L13 CHECK FOR A SHORT BETWEEN PASSENGER SEAT SIDE AIR BAG MODULE CIRCUITS 1259 (WH/YE) AND 1260 (BN/YE)
    • Key in OFF position.
    • Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering .
    • Disconnect: Passenger Seat Side Air Bag Module Restraint System Diagnostic Tool
    • Measure the resistance between passenger seat side air bag module C316-1, circuit 1259 (WH/YE), harness side and C316-2, circuit 1260 (BN/YE), harness side.
    • Is the resistance less than 800 ohms?
    1. YES  : Go to  L14.
    2. NO  : Go to  L15.
  14. L14 CHECK THE RCM FOR LOW RESISTANCE
    • Disconnect: RCM C310a and C310b
      • Fig 10: Measuring Resistance
      GF0013357Courtesy of FORD MOTOR CO.
    • Measure the resistance between RCM C310b pin 21, component side and pin 22, component side.
    • Is the resistance less than 800 ohms?
    1. YES  : Go to  L15.
    2. NO  : REPAIR circuits 1259 (WH/YE) and 1260 (BN/YE). Go to  L17.
  15. L15 CONFIRM THE RCM FAULT
    NOTE: Make sure all restraint system diagnostic tools, sensor electrical connectors and the RCM electrical connectors are connected before carrying out the self test. If not, erroneous DTCs will be recorded.
    • Key in OFF position.
    • Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering .
    • Connect: Restraint System Diagnostic Tool
    • Connect: RCM C310a and C310b
    • Repower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering .
    • Enter the following diagnostic mode on the diagnostic tool: Self Test/ RCM/ Retrieve and Record On-Demand and Continuous Memory DTCs
    • Enter the following diagnostic mode on the diagnostic tool: DataLogger/ RCM/ View and Record All B2295 Fault PIDs
      • Refer to PID list in Normal Operation to view B2295 fault PIDs.
    • Do any on-demand B2295 fault PIDs indicate a fault?
    1. YES  : INSTALL a new RCM. REFER to Restraints Control Module (RCM) . Go to  L17.
    2. NO  : In the process of diagnosing the fault, the fault condition has become intermittent. CHECK for causes of the intermittent fault in the areas previously worked in, particularly the pins and terminals of electrical connectors that were disconnected. ATTEMPT to recreate the hard fault by flexing the wire harness and cycling the ignition key frequently. Do not install any new SRS components at this time. SRS components should only be installed when directed to do so in the pinpoint test.  REPAIR any intermittent wiring, terminal or connector concerns found. Go to  L17.
  16. L16 CHECK FOR AN INTERMITTENT FAULT
    • Key in OFF position.
    • Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering .
    • If the fault PID was reported for the driver seat side air bag module:
      • Disconnect the driver seat side air bag module C315.
      • Connect restraint system diagnostic tool 418-133 to driver seat side air bag module C315.
    • If the fault PID was reported for the passenger seat side air bag module:
      • Disconnect the passenger seat side air bag module C316.
      • Connect restraint system diagnostic tool 418-133 to passenger seat side air bag module C316.
    • Repower the SRS. Do not  prove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering .
    • Enter the following diagnostic mode on the diagnostic tool: Self Test/ RCM/ Retrieve and Record On-Demand and Continuous Memory DTCs
    • Enter the following diagnostic mode on the diagnostic tool: DataLogger/ RCM/ View and Record All B2295 Fault PIDs
      • Refer to PID list in Normal Operation to view B2295 fault PIDs.
    • Do any on-demand B2295 fault PIDs indicate a fault?
    1. YES  : This is a hard fault. The fault condition is now present. This fault cannot be cleared until it is corrected and the DTC is no longer retrieved during the on-demand self test. CHECK for causes of the intermittent fault at or near the affected seat side air bag module connector. REPAIR any intermittent wiring, terminals or connector concerns found.

      For 2295_31_OD (Side Air Bag Circuit Short to Battery, Front Driver Side) (LFC 9-5), go to  L3.

      For 2295_30_OD (Side Air Bag Circuit Short to Ground, Front Driver Side) (LFC 9-1), go to  L4.

      For 2295_29_OD (Side Air Bag Circuit Open, Front Driver Side) (LFC 2-2), go to  L5.

      For 2295_28_OD (Side Air Bag Circuit Resistance Low, Front Driver Side) (LFC 9-9), go to  L7.

      For 2295_27_OD (Side Air Bag Circuit Short to Battery, Front Passenger Side) (LFC 9-6), go to  L9.

      For 2295_26_OD (Side Air Bag Circuit Short to Ground, Front Passenger Side) (LFC 9-2), go to  L10.

      For 2295_25_OD (Side Air Bag Circuit Open, Front Passenger Side) (LFC 2-3), go to  L11.

      For 2295_24_OD (Side Air Bag Circuit Resistance Low, Front Passenger Side) (LFC 9-10), go to  L13.

    2. NO  : CHECK for causes of the intermittent fault. ATTEMPT to recreate the hard fault by flexing the wire harness and cycling the ignition key frequently. ACTIVATE others systems in the same wire harness. Do not install any new SRS components at this time. SRS components should only be installed when directed to do so in the pinpoint test.  REPAIR any intermittent wiring, terminal or connector concerns found. Go to  L17.
  17. L17 CHECK FOR ADDITIONAL SRS DTCs
    • Key in OFF position.
      WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
    • Reconnect all SRS components (if previously disconnected).
    • If previously directed to depower the SRS, repower the SRS. Do not  prove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering .
    • Key in ON position.
    • Enter the following diagnostic mode on the diagnostic tool: Self Test/ RCM/ Retrieve and Record On-Demand and Continuous Memory DTCs
    • Enter the following diagnostic mode on the diagnostic tool: Clear all RCM Continuous Memory DTCs
    • Enter the following diagnostic mode on the diagnostic tool: Self Test/RCM
    • Are any RCM DTCs retrieved indicating a fault?
    1. YES  : Do not clear any DTCs until all DTCs have been resolved. Go to the SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSTIC TROUBLE CODE INDEX  for pinpoint test direction.
    2. NO  : PROVE OUT the SRS. REPAIR is complete. RETURN the vehicle to the customer.
scientia non olet · About LEMON Manuals
