Cylinder Head: Assembly

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool, install the valve stem seal.

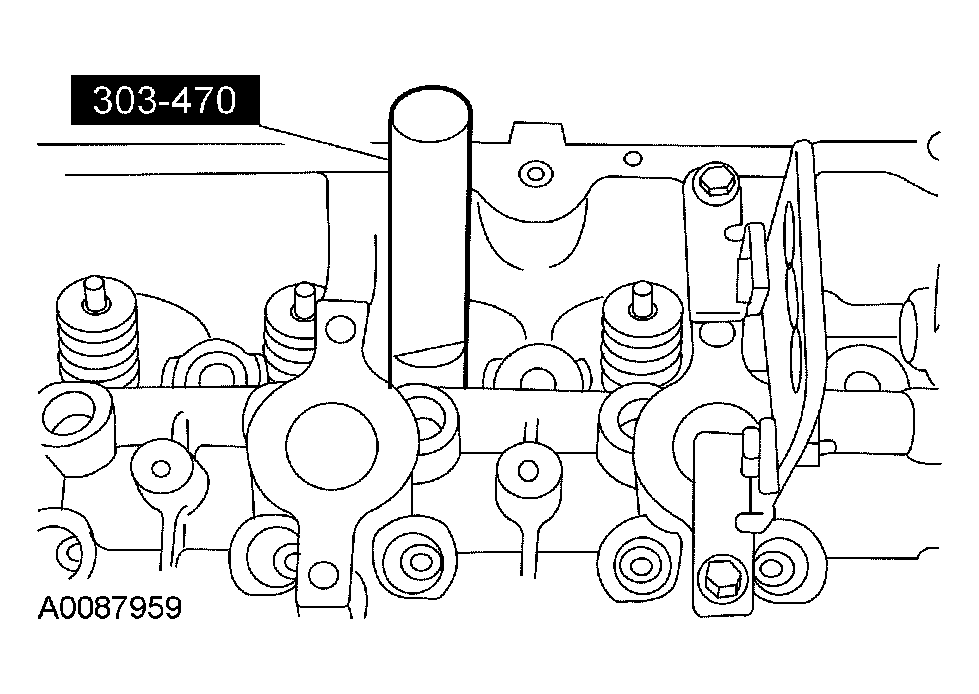

    Fig 1: Installing Valve Stem Seal
    G03898517Courtesy of FORD MOTOR CO.
  2. Install the valve.
  3. Using the special tools, install the valve spring, retainer and key.
    Fig 2: Installing Valve Spring, Retainer And Key
    G03898516Courtesy of FORD MOTOR CO.
  4. Install the hydraulic lash adjusters.
