Battery Cables: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

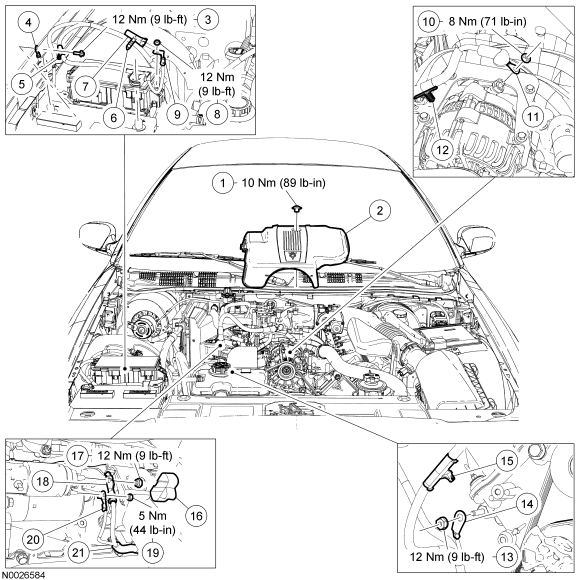

| Item | Part Number | Description |
|---|---|---|
| 1 | N808455 | Engine cover nut |
| 2 | 9E766 | Engine cover |
| 3 | W705661 | Battery cable body ground terminal bolt |
| 4 | - | Battery cable body ground terminal (part of 14300) |
| 5 | - | Battery cable harness locator (part of 14300) |
| 6 | - | Battery cable harness locator (part of 14300) |
| 7 | - | Battery cable connector (part of 14300) |
| 8 | W520101 | Battery junction box (BJB) cable terminal nut |
| 9 | - | BJB cable terminal (part of 14300) |
| 10 | W705790-S901 | Generator B+ terminal nut |
| 11 | - | Generator B+ terminal (part of 14300) |
| 12 | - | Generator B+ harness locator (part of 14300) |
| 13 | W706414 | Battery cable engine ground terminal nut |
| 14 | - | Battery cable engine ground terminal (part of 14300) |
| 15 | - | Battery cable harness locator (part of 14300) |
| 16 | 11N087 | Starter terminal cover |
| 17 | W706414 | Starter solenoid positive terminal nut |
| 18 | - | Starter solenoid positive terminal (part of 14300) |
| 19 | W705790-S901 | Starter solenoid wire terminal nut |
| 20 | - | Starter solenoid wire terminal (part of 14300) |
| 21 | 14300 | Battery cable harness |
