Removal & Installation
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

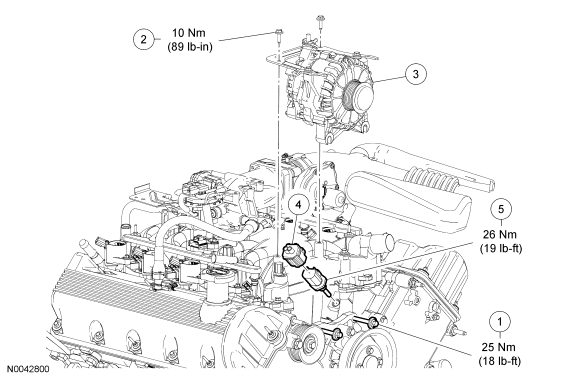

| Item | Part Number | Description |
|---|---|---|
| 1 | N811268 | Lower generator bolt (2 required) |
| 2 | N807309 | Generator bracket bolt (2 required) |
| 3 | 10300 | Generator and bracket assembly |
| 4 | 14A464 | Cylinder head temperature (CHT) sensor electrical connector (part of 12B637) |
| 5 | 6G004 | CHT sensor |
- Disconnect the battery ground cable. For additional information, refer to GENERAL PROCEDURES article.
- Rotate the tensioner clockwise and remove the accessory drive belt from the generator pulley.
- Loosen the 2 lower generator bolts.
- To install, tighten to 25 Nm (18 lb-ft).
- Remove the 2 generator bracket bolts and position the generator and bracket aside.
- To install, tighten to 10 Nm (89 lb-in).
- Disconnect the cylinder head temperature (CHT) sensor electrical connector.
- Using a 19 mm (0.74 in) 12 point crows foot, remove and discard the CHT sensor.
- To install, tighten to 26 Nm (19 lb-ft).
- To install, reverse the removal procedure.
NOTE:
The CHT sensor is not to be reused. Always install a new sensor.
