Luggage Compartment Lid Latch: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

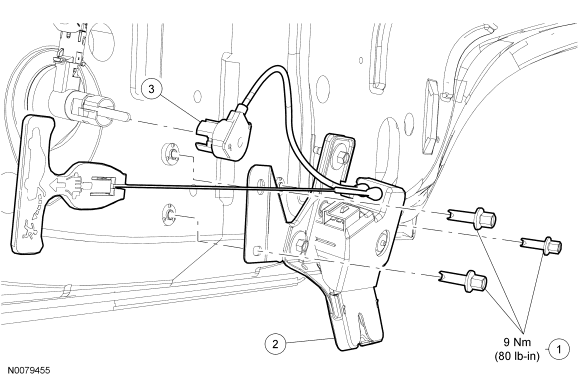

Fig 1: Luggage Compartment Lid Latch With Torque Specifications
GF0047538Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N807845 Luggage compartment lid latch bolts (3 required)
2 5443282 Luggage compartment lid latch
3 - Lock cylinder cable (part of 5443282)
