Door Lock Cylinder: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

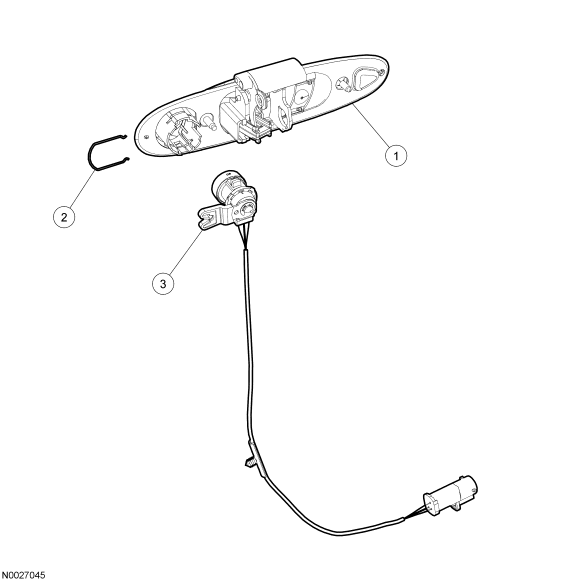

Fig 1: Identifying Door Lock Cylinder Components
GF0018644Courtesy of FORD MOTOR CO.
Item Part Number Description
1 5422405 Exterior front door handle
2 - Door lock cylinder retainer
3 1521990 Door lock cylinder
