Gearshift Cables: Removal

WARNING: This page is about a different car, the 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Carefully disconnect the spring clip from the cable end. It can become unfastened from the cable.

Disconnect the gearshift cables from the transaxle gearshift control assembly.
- Pull the spring clip out of the groove, lift upward and rotate the clip 90 degrees.

NOTE: Carefully pry the gearshift cables from the transaxle bracket.

Disconnect the gearshift cables from the transaxle bracket.
Remove the floor console. For additional information, refer to CONSOLE -- FLOOR .
Remove the Restraints Control Module (RCM). For additional information, refer to RESTRAINTS CONTROL MODULE (RCM) .
Disconnect the Smart Junction Box (SJB) electrical connector and the 2 harness electrical connectors.

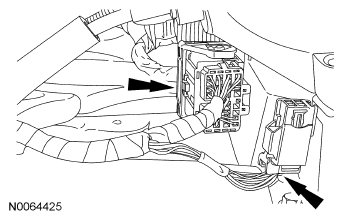

Fig 1: Locating Smart Junction Box (SJB) Electrical Connector
Courtesy of FORD MOTOR CO.

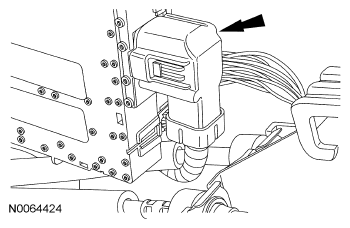

Fig 2: Locating Harness Electrical Connectors
Courtesy of FORD MOTOR CO.
Disconnect the gearshift cables from the gearshift lever assembly.
Remove the 2 gearshift cable grommet nuts.
Remove the gearshift cables.
- Pull the gearshift cables into the vehicle. Using an assistant, carefully lift the LH floor duct, pull the cables under the duct and remove from the vehicle.

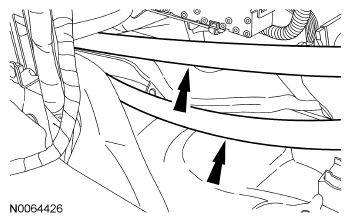

  Fig 3: Locating Gearshift Cables
  Courtesy of FORD MOTOR CO.
