Removal and Installation
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

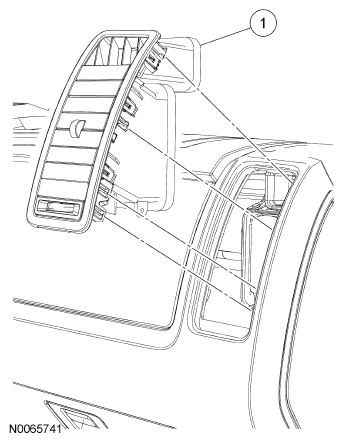

- Using a suitable tool, gently pry to disengage the register clips from the instrument panel while working around the perimeter of the register.
- Remove the driver side register.
- To install, reverse the removal procedure.
NOTE:
Make sure that the tool is inserted behind the register housing, not the register trim ring. Prying on the register trim ring will damage the register assembly.
