Manifold Absolute Pressure (MAP) Sensor: Material

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION CHART

Item Specification
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent		 WSS-M2C930-A

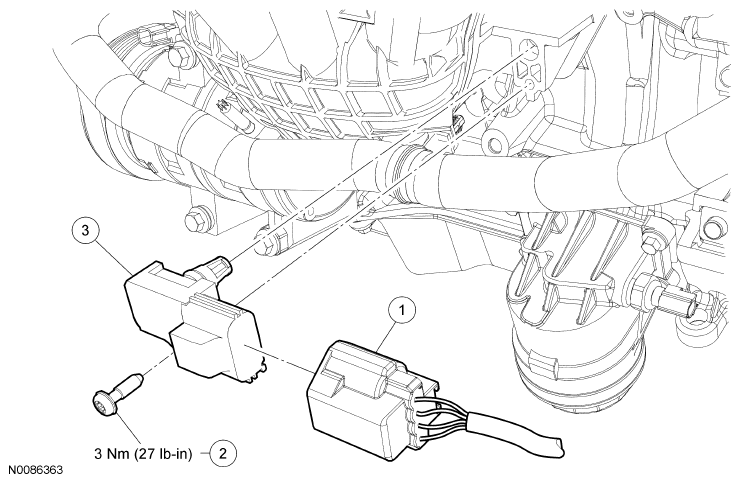

Fig 1: Manifold Absolute Pressure (MAP) Sensor And Electrical Connector With Torque Specifications
G06096807Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 14A464 Manifold Absolute Pressure (MAP) sensor electrical connector (part of 12C508)
2 W701459 MAP  sensor screw
3 9F479 MAP  sensor
