Selector Lever: Removal

All vehicles

1. Place the selector lever in the D position.
   Fig 1: Locating Selector Lever In D Position

   Courtesy of FORD MOTOR CO.
2. Gently pry up to remove the upper selector lever trim ring.
   Fig 2: Locating Upper Selector Lever Trim Ring

   Courtesy of FORD MOTOR CO.
3. Lift the center console lid and remove the center console compartment tray.
   Fig 3: Locating Center Console Compartment Tray

   Courtesy of FORD MOTOR CO.
4. Remove the top finish panel.
   Fig 4: Identifying Top Finish Panel

   Courtesy of FORD MOTOR CO.
5. Remove the selector lever cable from the selector lever assembly.
   1. Disconnect the selector lever cable end from the selector lever.
   2. Remove the selector lever cable from the bracket.
      Fig 5: Identifying Selector Lever Assembly

      Courtesy of FORD MOTOR CO.
6. Disconnect the wiring harness retainers from the selector lever.
   Fig 6: Locating Wiring Harness Retainers

   Courtesy of FORD MOTOR CO.

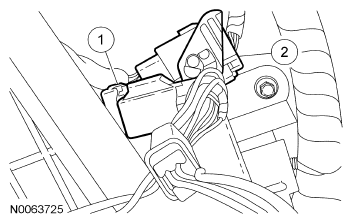

7. Disconnect the electrical connectors from the selector lever.
   1. Disconnect the selector lever electrical connector.
   2. Remove the vehicle harness connector from the selector lever.
      Fig 7: Locating Selector Lever Electrical Connectors

      Courtesy of FORD MOTOR CO.

   All-Wheel Drive (AWD) vehicles

8. Pull the All-Wheel Drive (AWD) module straight back and remove it from the back of the selector lever.
   Fig 8: Locating AWD Module

   Courtesy of FORD MOTOR CO.

   All vehicles

9. Remove the 2 screws from the center console.
   Fig 9: Locating Center Console Screws

   Courtesy of FORD MOTOR CO.
10. Remove the 4 bolts and remove the selector lever assembly.
    Fig 10: Locating Selector Lever Assembly Bolts

    Courtesy of FORD MOTOR CO.
