Special Tool(s)
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL REFERENCE
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

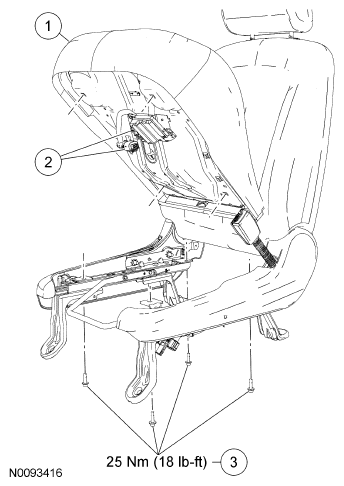

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Seat cushion assembly |
| 2 | - | Occupant Classification Sensor (OCS) pressure sensor and Occupant Classification System Module (OCSM) |
| 3 | - | Seat track-to-cushion frame bolts |

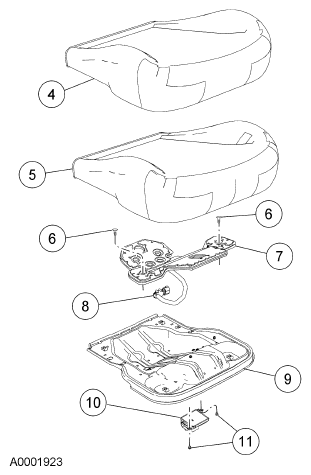

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 4 | 62900 | Seat cushion trim cover |
| 5 | - | Seat cushion foam pad |
| 6 | - | Pin-type retainers |
| 7 | - | Occupant Classification Sensor (OCS) bladder |
| 8 | - | Pressure sensor |
| 9 | - | Seat cushion pan |
| 10 | - | Occupant Classification System Module (OCSM) |
| 11 | 391950 | OCSM rivets |
