Intermediate Shaft: Material

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATION

Item	Specification
PTFE Lubricant XG-8	ESB-M1C111-B

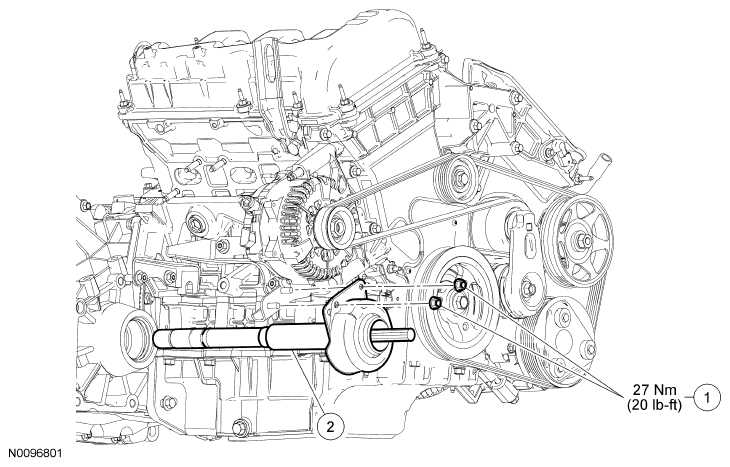

Fig 1: Intermediate Shaft With Torque Specifications

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	WS20413	Intermediate shaft bearing retainer nuts (2 required)
2	3K183	Intermediate shaft
