Special Tool(s)

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL REFERENCE

G06394099Courtesy of FORD MOTOR CO.
 Bearing Cup Remover
308-125 (T87P-7120-D)
G06095378Courtesy of FORD MOTOR CO.
 Handle
205-153 (T80T-4000-W)
G06064374Courtesy of FORD MOTOR CO.
 Installer, Halfshaft Oil Seal
308-431
G06098376Courtesy of FORD MOTOR CO.
 Installer, PTO Driven Gear Oil Seal
308-429
G06098377Courtesy of FORD MOTOR CO.
 Installer, Rear Axle Oil Seal
205-155 (T80T-4000-Y)
G06064376Courtesy of FORD MOTOR CO.
 Remover, Halfshaft
205-241
G06064377Courtesy of FORD MOTOR CO.
 Slide Hammer
100-001 (T50T-100-A)

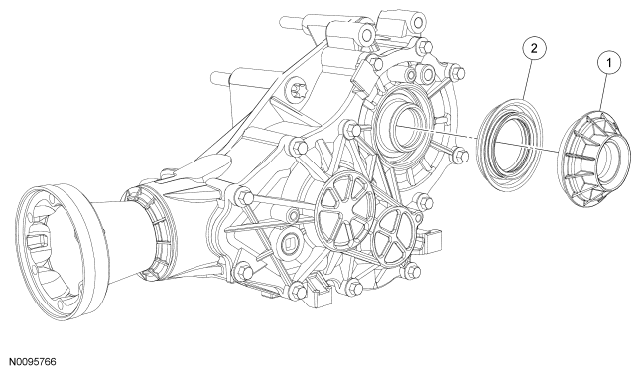

Fig 1: Identifying Deflector And Cover Seal
G06394106Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 7H426 Deflector
2 7H459 Cover seal
