Roof Opening Panel Alignment

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The roof opening panel motor must be initialized when repairs are carried out on any part of the roof opening panel system, including: whenever the roof opening panel motor has been removed from the roof panel system, the roof opening panel glass has been removed from the roof opening panel system, the roof opening panel assembly has been removed from the vehicle, a new roof opening panel motor has been installed, a new roof opening panel glass has been installed or a new roof opening panel assembly has been installed. For additional information, refer to ROOF OPENING PANEL MOTOR INITIALIZATION .
  1. Position the roof opening panel to the CLOSED position.
  2. Loosen the 4 roof opening panel glass screws.
  3. Make sure the roof opening panel is centered in the roof opening.

    Adjust the roof opening panel glass height to specification.

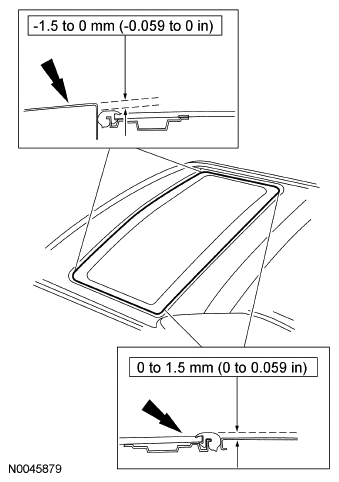

    Fig 1: Adjusting Roof Opening Panel Glass
    G06099959Courtesy of FORD MOTOR CO.
  4. Tighten the 4 roof opening panel glass screws to 5 Nm (44 lb-in).
  5. Initialize the roof opening panel motor. For additional information, refer to ROOF OPENING PANEL MOTOR INITIALIZATION .
