Transaxle Support Insulator - Lower, Rear: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

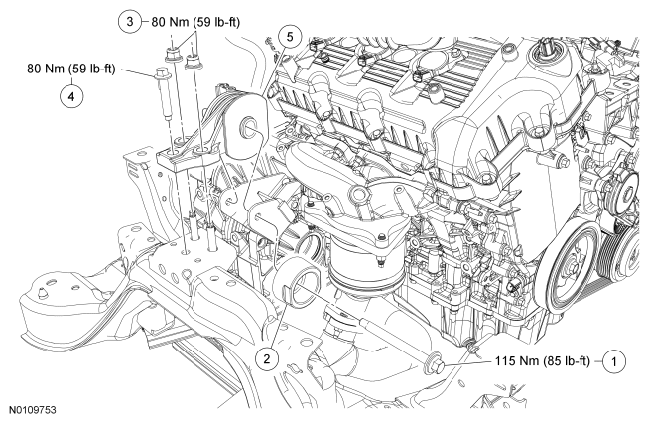

Courtesy of FORD MOTOR CO. PARTS DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
W710173 |
Lower support insulator through bolt |
| 2 |
7A886 |
Mass damper (All-Wheel Drive (AWD) only) |
| 3 |
N807144-S440 |
Lower support insulator nuts |
| 4 |
W500743-S439 |
Lower support insulator bolt |
| 5 |
6E037 |
Lower support insulator |
