Output Shaft Speed (OSS) Sensor: Removal

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING -- ESCAPE, ESCAPE HYBRID, MARINER & MARINER HYBRID .
  2. Remove the retainers and the LH splash shield.
    Fig 1: Locating LH Splash Shield Retainers
    G06376842Courtesy of FORD MOTOR CO.
  3. Remove the transmission fluid drain plug and allow the transmission fluid to drain.
    Fig 2: Locating Transmission Fluid Drain Plug
    G06376843Courtesy of FORD MOTOR CO.
  4. Install the transmission fluid drain plug.
    • Tighten to 12 Nm (106 lb-in).
      Fig 3: Locating Transmission Fluid Drain Plug
      G06376844Courtesy of FORD MOTOR CO.
  5. Disconnect the transaxle vehicle harness electrical connector.
    Fig 4: Locating Transaxle Vehicle Harness Electrical Connector
    G06376845Courtesy of FORD MOTOR CO.
  6. Remove the transaxle electrical wiring harness retainers from the transmission fluid pan stud bolts.

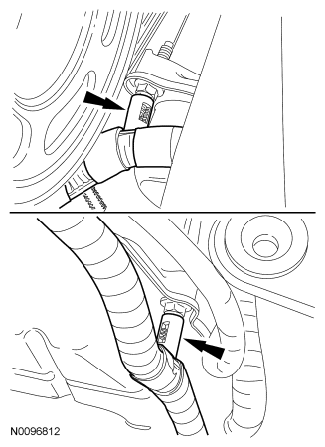

    Fig 5: Locating Transaxle Electrical Wiring Harness Retainers
    G06376846Courtesy of FORD MOTOR CO.
  7. Remove the 2 nuts, pull the transmission fluid cooler tube bracket and tubes away from the transaxle and position it aside.
    Fig 6: Pulling Transmission Fluid Cooler Tube Bracket And Tubes From Transaxle
    G06376847Courtesy of FORD MOTOR CO.
    8. NOTE: Note the location of the stud bolts for assembly.

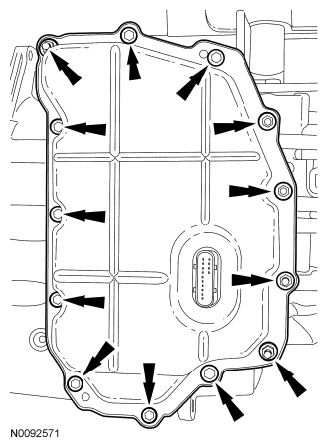

    Fig 7: Locating Main Control Cover Bolts And Stud Bolts
    G06376848Courtesy of FORD MOTOR CO.
  8. Remove the 8 bolts, 5 stud bolts and the main control cover.
  9. Disconnect the Transmission Range (TR) sensor electrical connector.
    Fig 8: Locating Transmission Range (TR) Sensor Electrical Connector
    G06376849Courtesy of FORD MOTOR CO.
  10. Disconnect the Output Shaft Speed (OSS) sensor electrical connector.

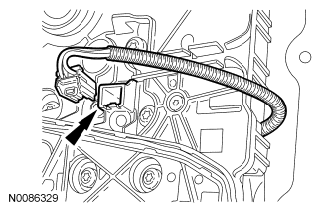

    Fig 9: Locating Output Shaft Speed (OSS) Sensor Electrical Connector
    G06376850Courtesy of FORD MOTOR CO.
  11. Remove the main control-to-main control cover grommet.

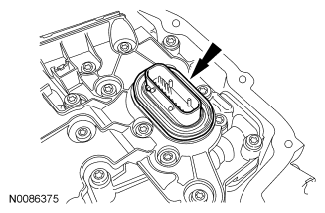

    Fig 10: Locating Main Control Cover Grommet
    G06376851Courtesy of FORD MOTOR CO.
    12. NOTE: The main control should be handled with care, damage to the main control may occur.
    NOTE: Note the location of the different length bolts for assembly.

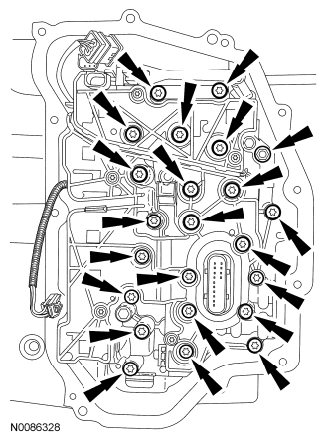

    Fig 11: Locating Main Control Valve Body Nut And Bolts
    G06376852Courtesy of FORD MOTOR CO.
  12. Remove the nut, 22 bolts and the main control.
  13. Remove the main control-to-transaxle separator plate.

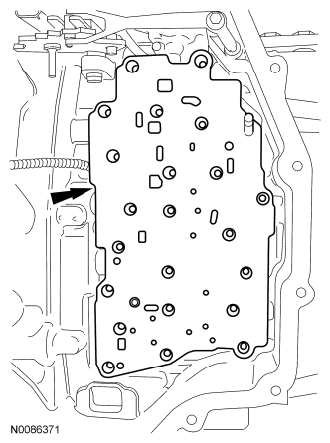

    Fig 12: Identifying Main Control-To-Transaxle Case Separator Plate
    G06376853Courtesy of FORD MOTOR CO.
  14. Remove the bolt and the OSS sensor.

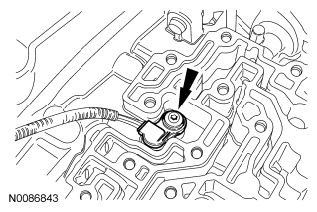

    Fig 13: Locating OSS Sensor Bolt
    G06376854Courtesy of FORD MOTOR CO.
