Digital Transmission Range (TR) Sensor: Installation

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

    NOTE: The TR  sensor is easier to install into the transaxle from under the vehicle.
  1. Install the TR  sensor.
    1. Install the TR  sensor and park pawl actuating rod in the transaxle case.
    2. Install the manual shaft in the transaxle case through the TR  sensor.

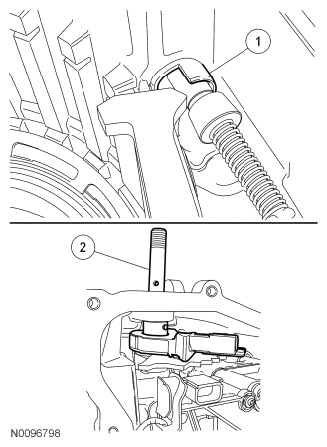

      Fig 1: Identifying Park Pawl Actuating Rod And Manual Shaft
      G06376737Courtesy of FORD MOTOR CO.
  2. Using a suitable tool such as center punch or a 5.5 mm (0.216 in) socket and a 101.6 mm (4 in) extension 1/4-inch drive, install a new TR  sensor locking pin.
    Fig 2: Installing TR Sensor Locking Pin
    G06376738Courtesy of FORD MOTOR CO.
  3. Install the TR  sensor detent spring and bolt.
    • Tighten to 13 Nm (115 lb-in).
      Fig 3: Locating TR Sensor Detent Spring And Bolt
      G06376739Courtesy of FORD MOTOR CO.
  4. Connect the TR  sensor electrical connector.
    Fig 4: Locating Transmission Range (TR) Sensor Electrical Connector
    G06376740Courtesy of FORD MOTOR CO.
  5. Install the main control cover grommet.

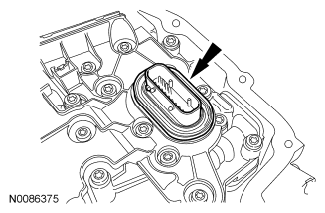

    Fig 5: Locating Main Control Cover Grommet
    G06376741Courtesy of FORD MOTOR CO.
  6. Clean the main control cover sealing surface.
    Fig 6: Locating Main Control Cover Sealing Surface
    G06376742Courtesy of FORD MOTOR CO.
  7. Apply silicone to the main control sealing surface of the transaxle case.

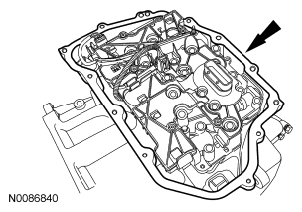

    Fig 7: Locating Silicone Applying Area On Transaxle Case Main Control Sealing Surface
    G06376743Courtesy of FORD MOTOR CO.
  8. Position the main control cover in place.
    Fig 8: Locating Main Control Cover
    G06376744Courtesy of FORD MOTOR CO.
    9. NOTE: Inspect the main control cover grommet to make sure that the seal is on the inside of the main control cover. Transmission fluid leak will occur.
    NOTE: Install the stud bolts in the locations noted during disassembly.
  9. Install the main control cover 8 bolts and 5 stud bolts.
    • Tighten to 12 Nm (106 lb-in).

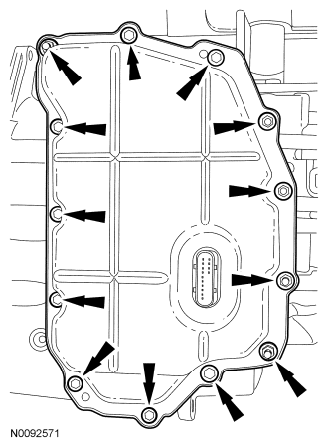

      Fig 9: Locating Main Control Cover Bolts And Stud Bolts
      G06376745Courtesy of FORD MOTOR CO.
  10. Position the transmission fluid cooler tube bracket and transmission fluid cooler tubes in place and install the 2 nuts.
    • Tighten to 9 Nm (80 lb-in).
      Fig 10: Pulling Transmission Fluid Cooler Tube Bracket And Tubes From Transaxle
      G06376746Courtesy of FORD MOTOR CO.
  11. Connect the transaxle vehicle harness electrical connector.
    Fig 11: Locating Transaxle Vehicle Harness Electrical Connector
    G06376747Courtesy of FORD MOTOR CO.
  12. Connect the transaxle electrical wiring harness retainers to the transmission fluid pan stud bolts.

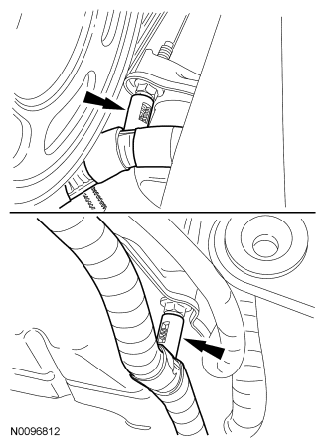

    Fig 12: Locating Transaxle Electrical Wiring Harness Retainers
    G06376748Courtesy of FORD MOTOR CO.
    13. NOTE: Make sure that when installing the manual control lever it is fully seated onto the manual control lever shaft or damage to the manual control lever shaft will occur and the lever will come loose.
    NOTE: Make sure to hold the manual control lever while tightening the manual control lever nut or damage to the manual control lever and park components will occur.
  13. Install the manual control lever and the nut.
    • Tighten to 24 Nm (18 lb-ft).

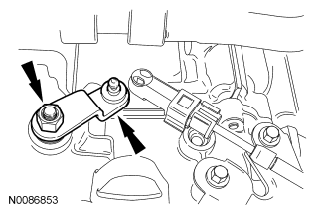

      Fig 13: Locating Manual Control Lever And Nut
      G06376749Courtesy of FORD MOTOR CO.
  14. Connect the selector lever cable end to the manual control lever with the manual control lever and selector lever in DRIVE. Check selector lever cable adjustment. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS - 6F35 .

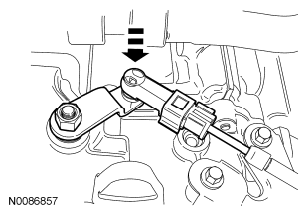

    Fig 14: Connecting Selector Lever Cable End To Manual Control Lever
    G06376750Courtesy of FORD MOTOR CO.

    3.0L engine

  15. Connect the lower radiator hose onto the thermostat housing.
  16. Connect the upper radiator hose onto the coolant pump housing.

    All vehicles

  17. Install the LH splash shield and the retainers.
    Fig 15: Locating LH Splash Shield Retainers
    G06376751Courtesy of FORD MOTOR CO.

    3.0L engine

  18. Install the RH splash shield and the retainers.
    Fig 16: Locating RH Splash Shield Retainers
    G06376752Courtesy of FORD MOTOR CO.

    2.5L engine

  19. Install the ACL  outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING - 2.5L .

    3.0L engine

  20. Install the ACL  outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING - 3.0L (4V) .
  21. Fill and bleed the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding in ENGINE COOLING .

    All vehicles

  22. Fill with clean transmission fluid to the correct level.
